ENGLISH
23

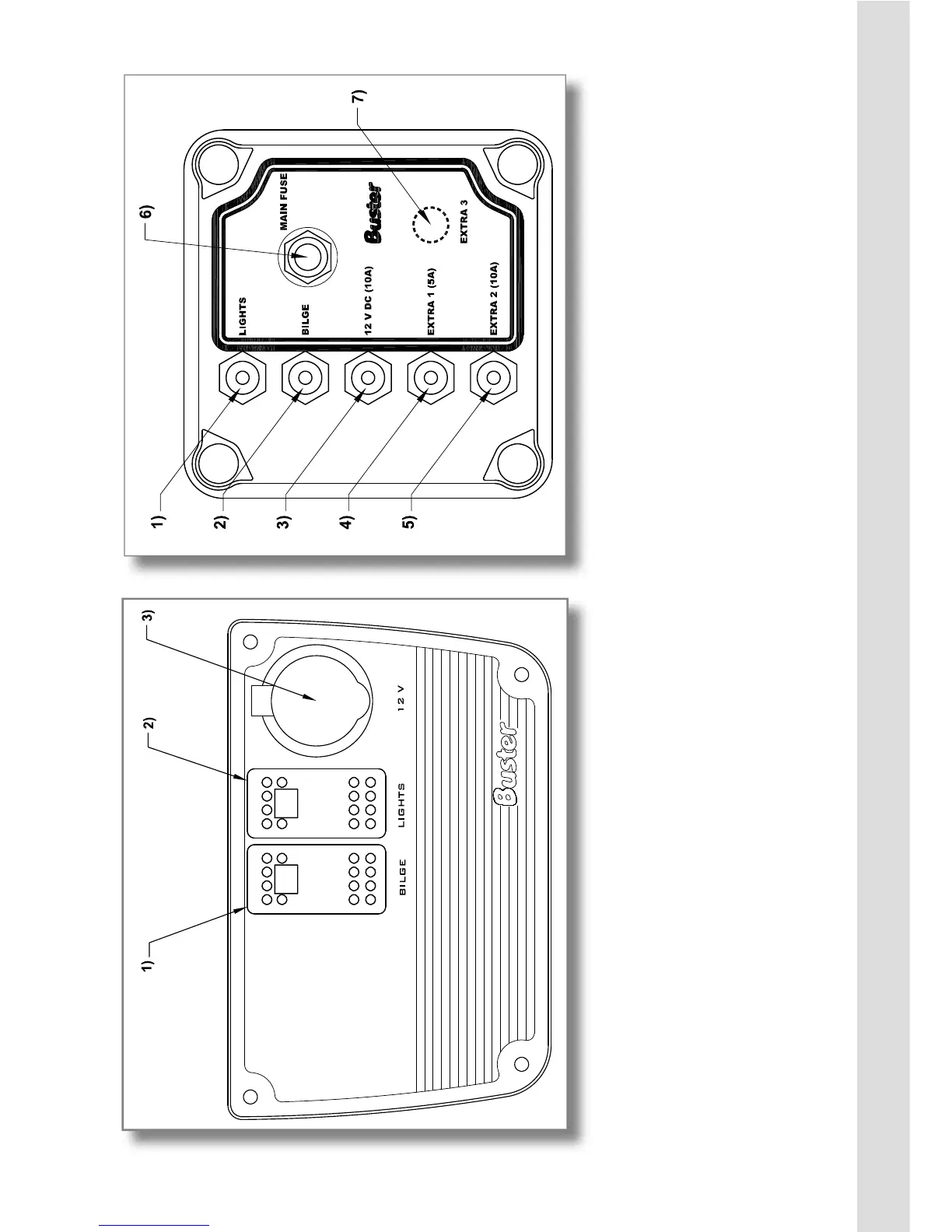

Diagram 5. Switch panel:
1. Operating switch for bilge pump;
2. Navigation light switch;
3. Power outlet, max. 10A/120W.
Diagram 6. Fuse box:
1. Navigation lights 5;
2. Bilge pump 10A;
3. Power outlet 10A;
4. Extra circuit 5A;
5. Extra circuit 10A;
6. Main power fuse 25A;
7. Space reserved for a 10A automatic fuse.
