SAFETY AND GENERAL INFORMATION
Save these instructions. For your safety, read and understand the information contained within. The owner and operator shall have an
understanding of this product and safe operating procedures before attempting to use this product. Instructions and safety information
shall be conveyed in operator’s native language before use of this product is authorized. Make certain that the operator thoroughly
understands the inherent dangers associated with the use and misuse of the product. If any doubt exists as to the safe and proper use
of this product as outlined in this factory authorized manual, remove from service immediately.
Inspect before each use. It is recommended that, prior to each use, an inspection be done by qualied personnel and that any missing
or damaged parts, decals, warning/safety labels or signs be replaced with factory authorized replacement parts only. Any pump that
appears to be damaged in any way, is worn, leaking or operates abnormally shall be removed from service immediately until such time
as repairs can be made. Owners and operators of this equipment shall be aware that the use and subsequent repair of this equipment
may require special training and knowledge.
PRODUCT DESCRIPTION
BVA Hydraulic Hand Pumps are engineered to meet most industrial standards for performance and safety. P1000AD has a unique two-
stage hydraulic circuit which allows quick displacement of hydraulic uid under no load conditions and easy pumping in loaded conditions.
These lever operated pumps supply compressed hydraulic uid to compatible applications i.e. rams, presses, spreaders, compactors
and crimping machines, anywhere that 10,000 PSI of uid pressure is needed. Special skill, knowledge and training may be required for
a specic task and the product may not be suitable for all the jobs described above. Unsuitable applications would include applications
that call for a device to move, level or support persons, animals, hazardous materials, mobile homes/dwellings in general, mirrors and/
or plate glass, and/or to connect/secure hatches, components, etc. between bulkheads. The user must ultimately make the decision
regarding suitability of the product for any given task and assume the responsibility of safety for himself/herself and others in the work area.
WARNING: Always check connections before using. Alteration of these products is strictly prohibited. Use only those adapters
and attachments provided and approved by the manufacturer.
WARNING: To reduce the risk of personal injury and/or property damage, ensure that the rated working pressure of each pressurized
attachment be equal to or greater than the rated working pressure developed by the hydraulic pump
2
!
!

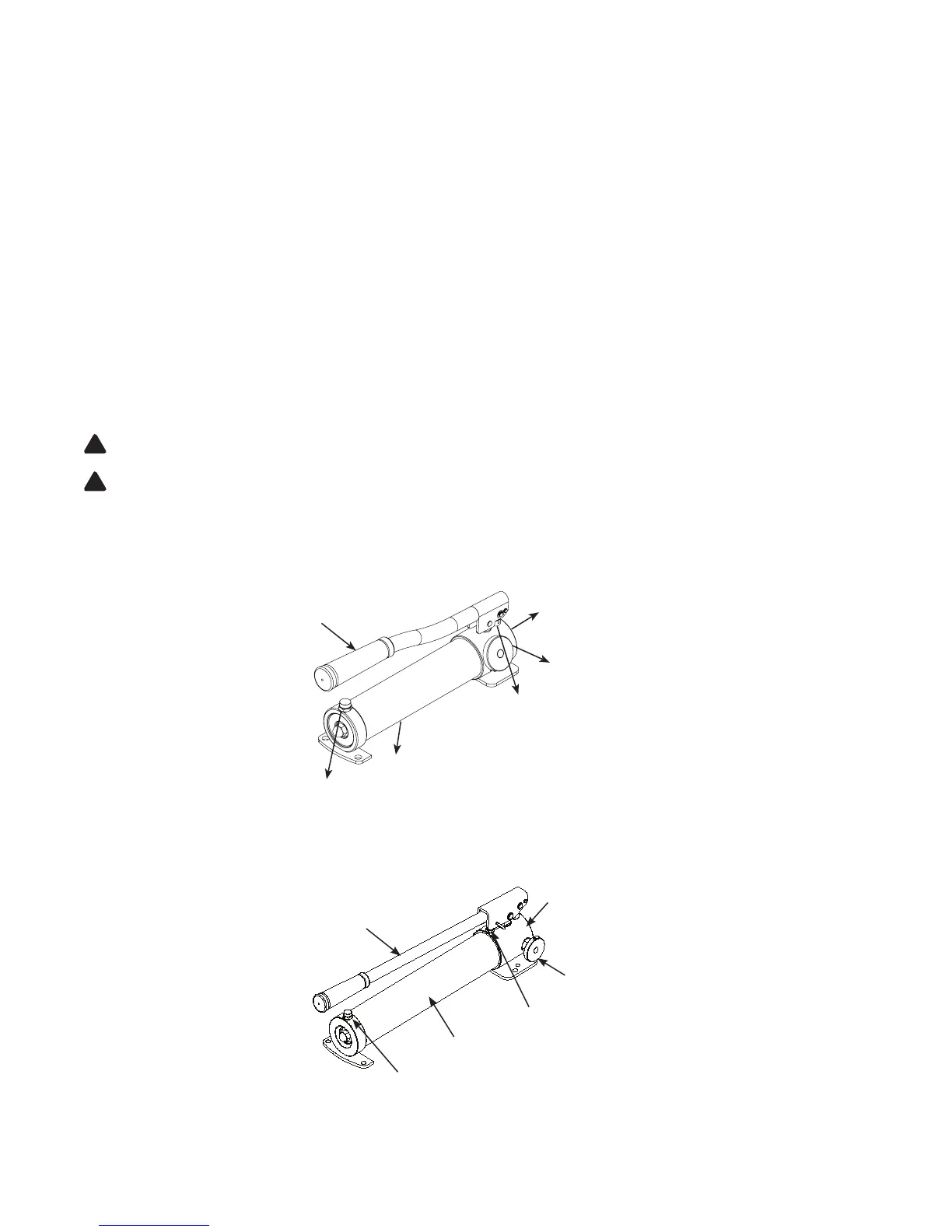

Figure 1 - Model P350 Components
Figure 2 - Model P1000 & P1000AD Components
Oil Outlet Port
3/8ʺ -18NPTF
Release Valve
Spring Loaded
Handle Lock Pin
Reservoir
Vent Plug
Handle
Handle
Release Valve
Reservoir
Spring Loaded
Handle Lock Pin
Oil Filler Plug
Oil Outlet Port
1/4ʺ-18NPTF (P350)
Model No. H3902
