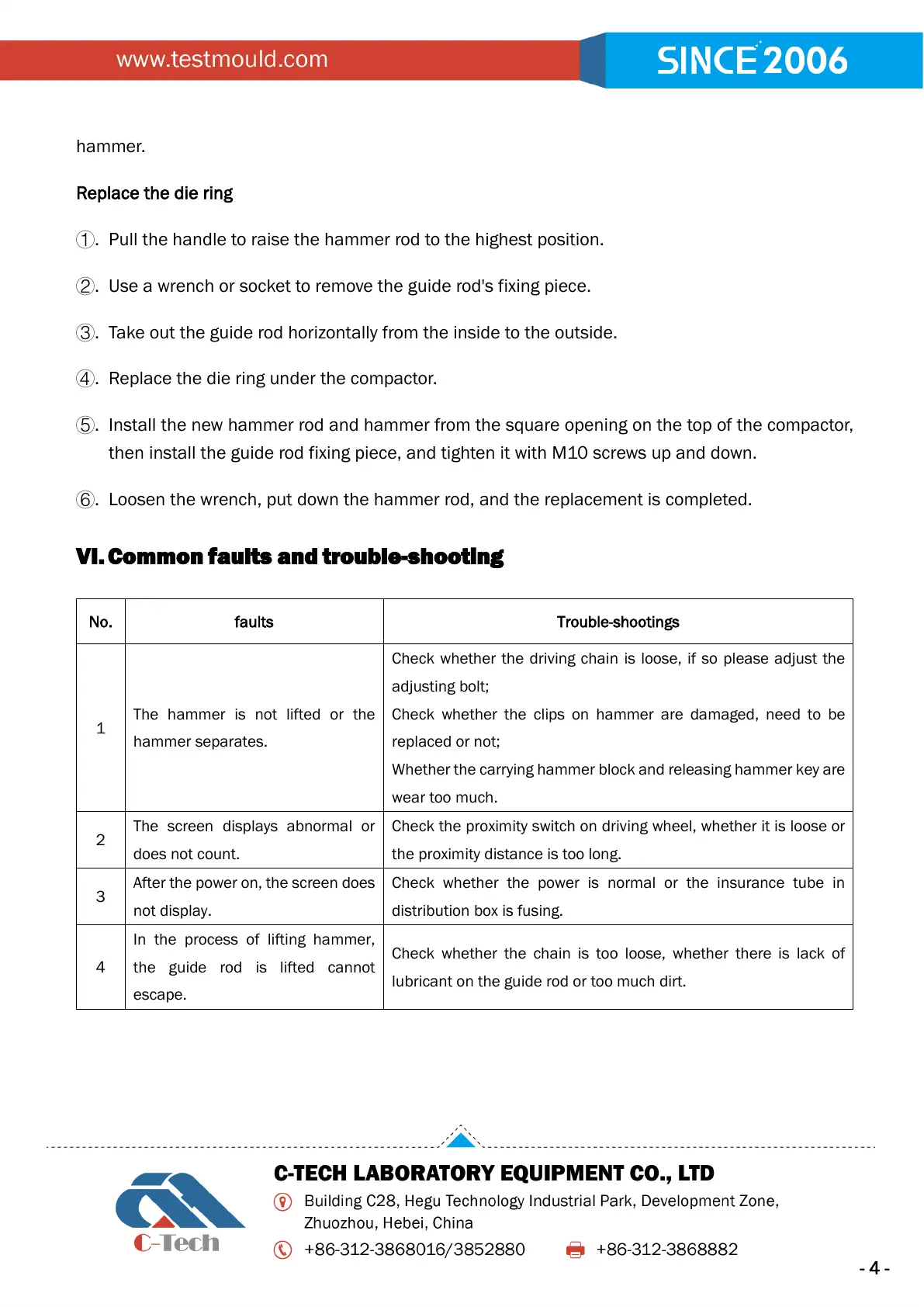

hammer.
Replace the die ring
①. Pull the handle to raise the hammer rod to the highest position.
②. Use a wrench or socket to remove the guide rod's fixing piece.
③. Take out the guide rod horizontally from the inside to the outside.
④. Replace the die ring under the compactor.
⑤. Install the new hammer rod and hammer from the square opening on the top of the compactor,
then install the guide rod fixing piece, and tighten it with M10 screws up and down.
⑥. Loosen the wrench, put down the hammer rod, and the replacement is completed.
VI. Common faults and trouble-shooting
1
The hammer is not lifted or the
hammer separates.
Check whether the driving chain is loose, if so please adjust the
adjusting bolt;
Check whether the clips on hammer are damaged, need to be
replaced or not;
Whether the carrying hammer block and releasing hammer key are
wear too much.
2
The screen displays abnormal or
does not count.
Check the proximity switch on driving wheel, whether it is loose or
the proximity distance is too long.
3
After the power on, the screen does
not display.
Check whether the power is normal or the insurance tube in
distribution box is fusing.
4
In the process of lifting hammer,
the guide rod is lifted cannot
escape.
Check whether the chain is too loose, whether there is lack of
lubricant on the guide rod or too much dirt.
