5-2 Stereo input module 8412
S-Type Revision S2005-6

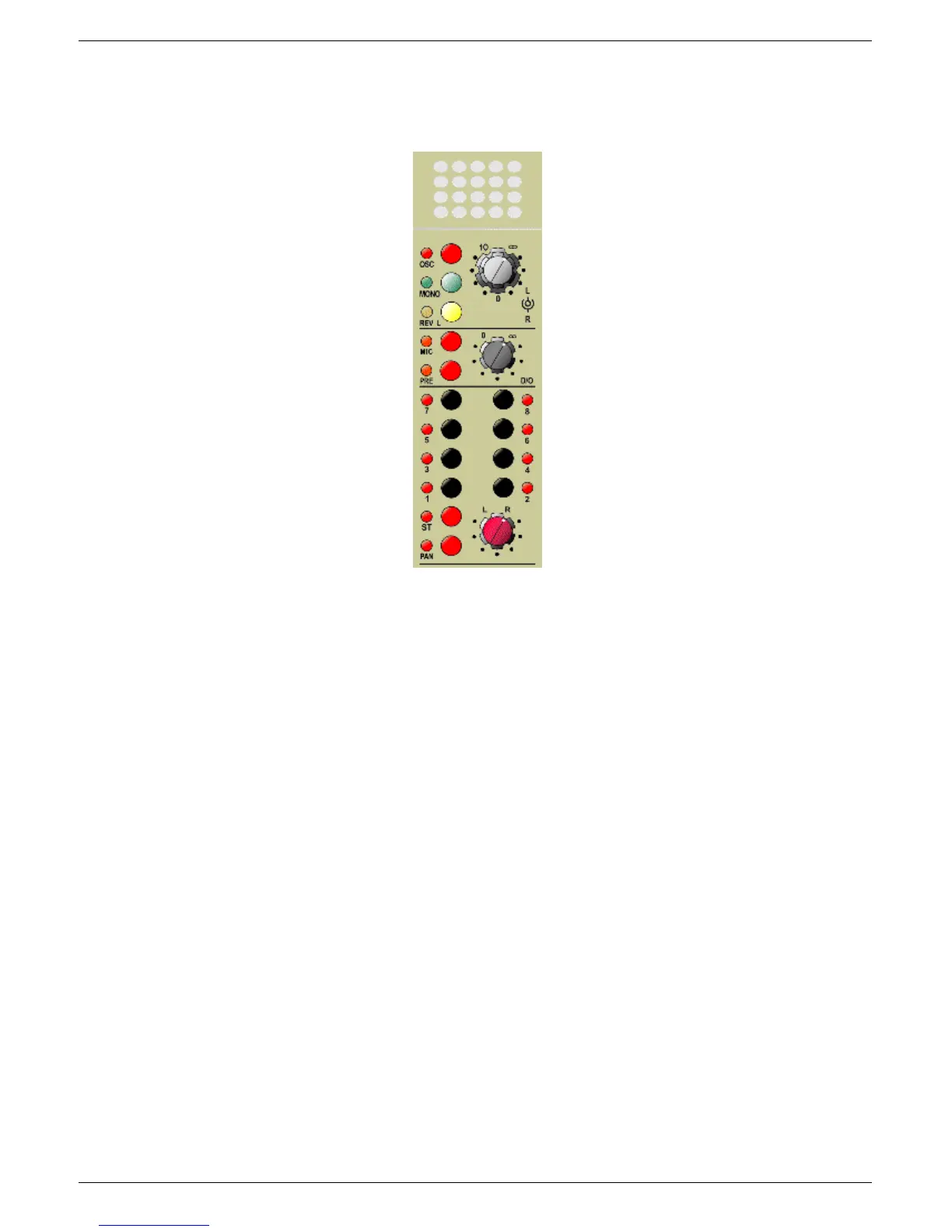

814 )URQW#SDQHO#VWH UHR#LQSXW#PRGXOH#;745
81414 ,QSXW#JDLQ#/HIW25LJKW
This dual concentric rotary control (Left - upper control, Right - lower control) is used
to adjust the input gain between infinity and +10dB.
81415 26&#0#2VFLOODWR U
Press this button to apply a line up tone to the input. The frequency and level of the
line up tone is controlled from the 8414 module.
81416 0RQR
Press this button to sum left and right channel to mono.
81417 5(9#/#0#3KDVH#UHYHUVH#OHIW#FKDQQHO
Pressing this button reverses the phase of the incoming left signal.
81418 ,QSXW
Press this button to route the line input - post input amplifier - to the Direct output.
5.1.1 Input gain
5.1.7 Direct output level
5.1.11 PAN control
5.1.2 Oscillator
5.1.3 Mono
5.1.4 Phase reverse
5.1.5 Input
5.1.6 Pre fader
5.1.8 Sub-group routing
5.1.9 Stereo
5.1.10 Pan
