Group, matrix and aux output - stereo 8413, mono 8415 6-5
Revision S2005-6 S-Type
)URQW #SDQ HO#JURXS/#PD WUL[#DQG#DX[#RXWSXW=####################
6WHUHR#;746#0#0RQR#;748
914148 67#0#6XE#JURXS#VWHUHR
Press this button to send the sub-group post fader signal to the stereo master with
optional panning.
914149 3$1#FRQWURO
This rotary control is used to place the sub-group signal at the desired point in the
stereo field when routing to the Stereo master.
91414: 6XE#JURXS#OHYHO#PHWHU
12-segment level meter displaying the signal level of the sub-group. Meter source is
post sub-group fader.
91414; )DGHU
100mm plastic conductive P & G fader used to adjust the sub-group output level.

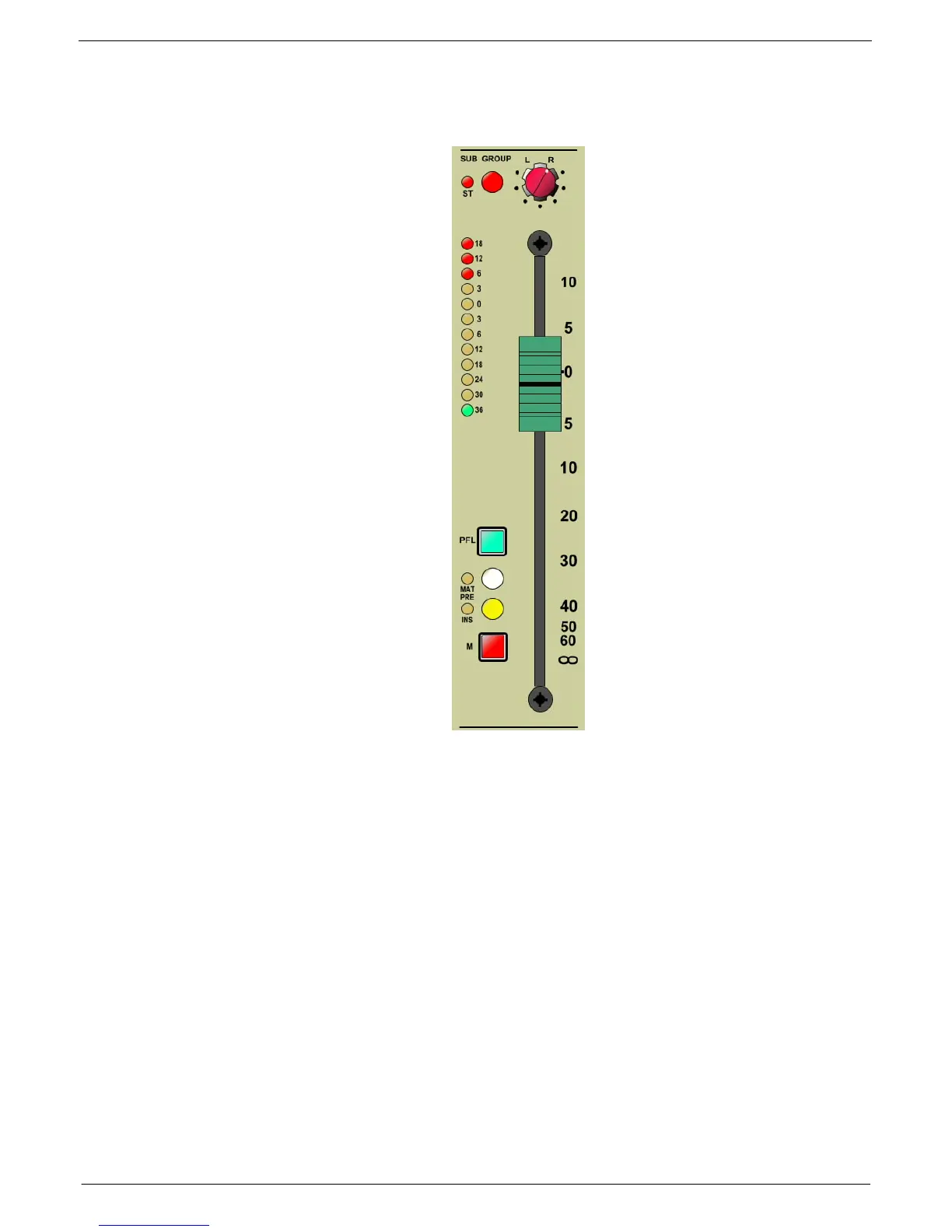

6.1.16 PAN control
6.1.18 Fader
6.1.15 Sub-group to stereo routing
6.1.17 Sub-group level meter
6.1.19 PFL
6.1.20 Matrix Pre
6.1.21 Insert
6.1.22 Mute
