MOUNTING THE RS AMPLIFIERS:
1
A
B
A
2
3
Choose a convenient mounting location with unobstructed airflow.

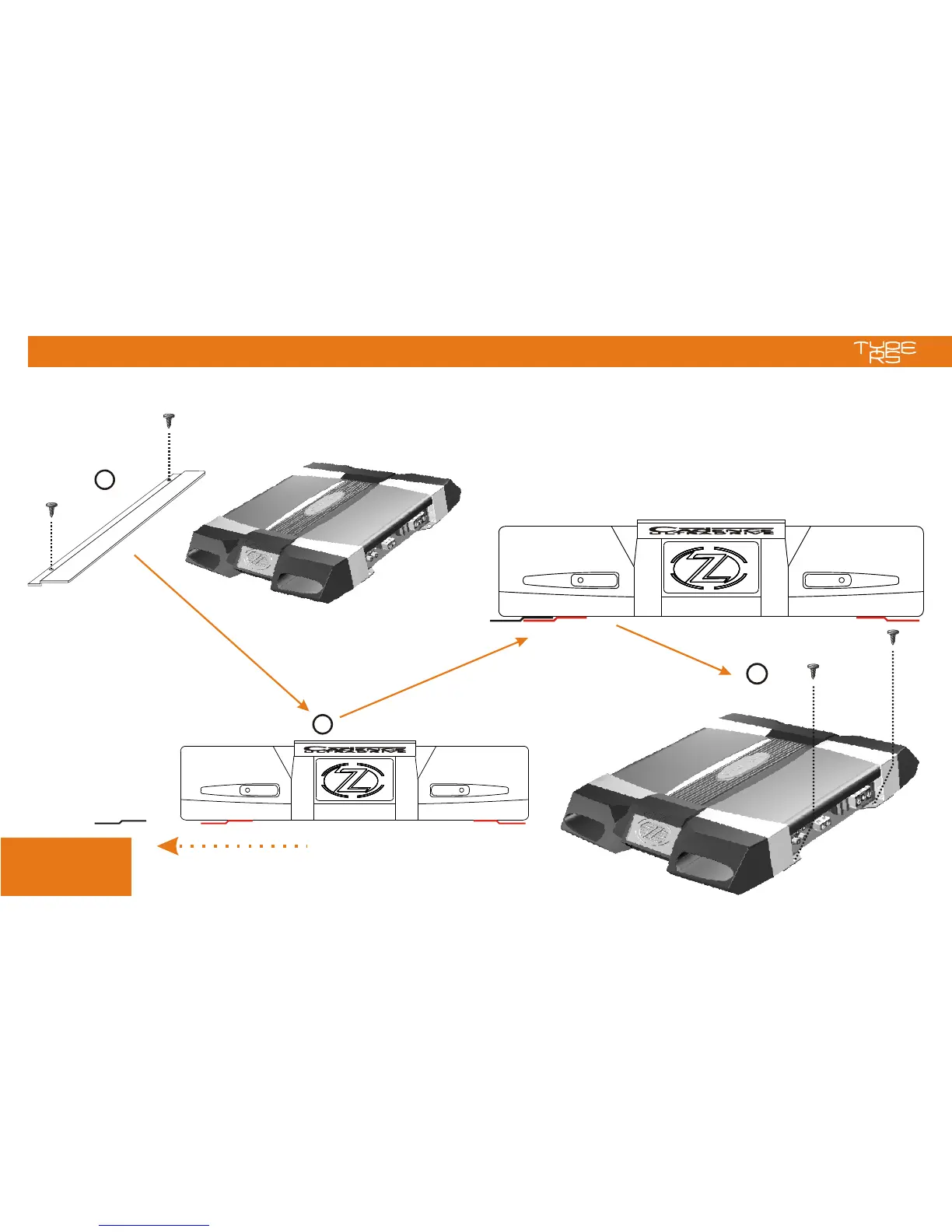

1 - Mount and fasten amplifier bracket A onto the mounting surface, with two screws as
shown.
2 - Slide the amplifier so that hook B engages with bracket A.
3 - Fasten the front of the amplifier to the mounting surface with screws as shown.
