6-47

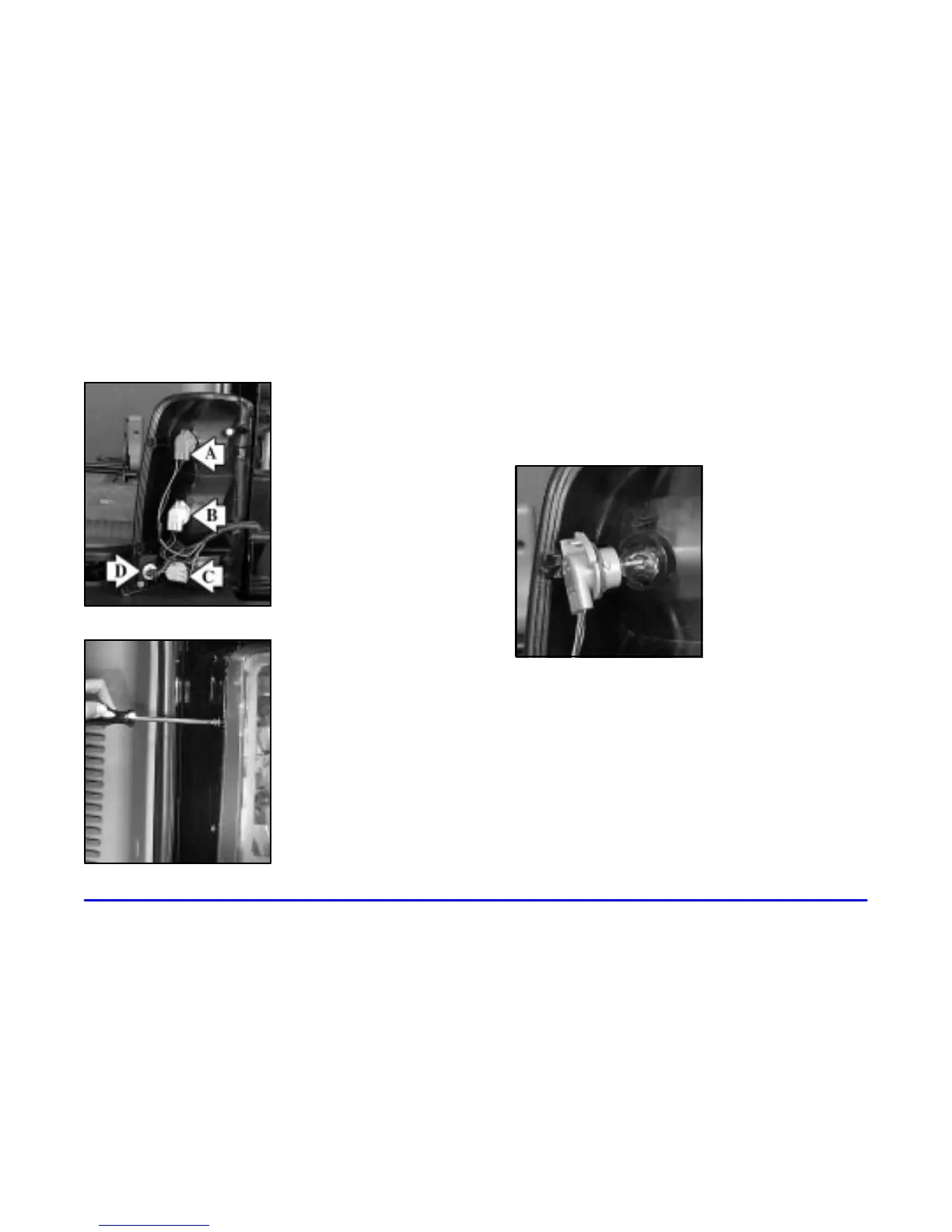

Taillamps
A. Turn Signal-Tail Lamp
B. Stop-Tail Lamp
C. Back
-Up Lamp
D. Sidemarker Lamp
1. Use a screwdriver to
remove the two screws
from the lamp assembly.
2. Remove the lamp assembly.
3. Press the release tab and turn the bulb socket
counterclockwise to remove it from the taillamp
housing. (The sidemarker lamp does not have a
release tab.)
4. Pull the bulb straight out
from the socket.
5. Press a new bulb into the socket, insert it into the
taillamp housing and turn the socket clockwise into
the taillamp housing until it clicks. (The sidemarker
lamp does not have a release tab and therefore will
not click when it is installed.)
6. Reinstall the rear lamp assembly and tighten
the screws.
