6-46

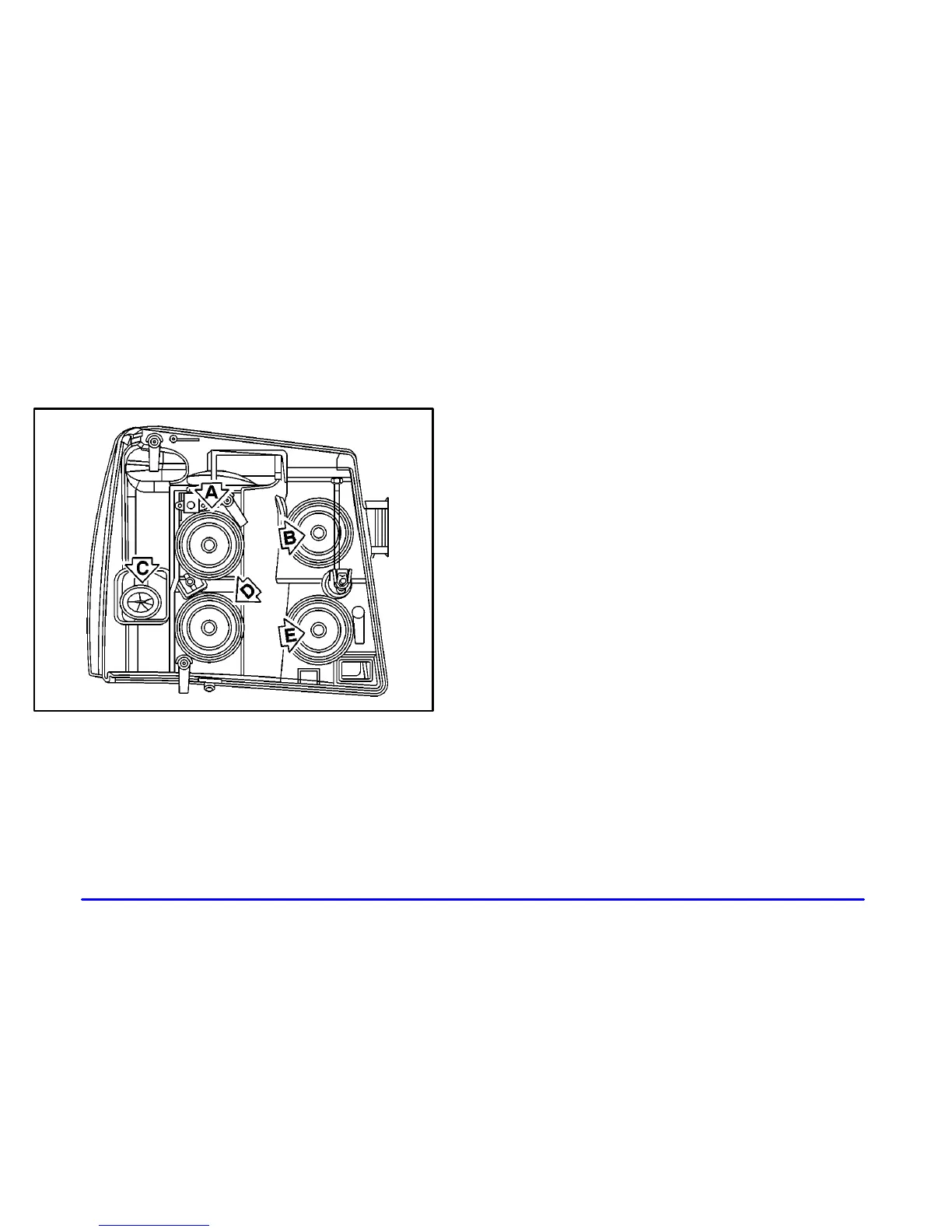

Front Turn Signal, Sidemarker and
Daytime Running Lamps
A. Low-Beam Headlamp
B. Daytime Running Lamp
C. Sidemarker Lamp
D. High
-Beam Headlamp
E. Front Turn Signal Lamp
1. Remove the headlamp assembly as
described previously.
2. Remove the rubber, circular
-shaped bulb cap for the
affected bulb from the headlamp assembly.
3. Press the locking release lever, turn the bulb
socket counterclockwise and remove it from the
headlamp assembly. (There is no lock for the
sidemarker lamp.)
4. Remove the old bulb from the bulb socket.
5. Put the new bulb into the bulb socket.
6. Put the bulb socket into the turn signal housing and
turn it clockwise until it locks. Use care not to touch
the bulb with your fingers or hands. (There is no lock
for the sidemarker lamp.)
7. Reinstall the rubber, circular
-shaped bulb cap to the
headlamp assembly.
8. Put the headlamp assembly back into the vehicle by
reversing the previous mentioned steps.
Center High Mounted Stoplamp (CHMSL)
It is recommended that this component be replaced as
a unit.
