Cadillac SRX Owner Manual - 2011
Vehicle Care 10-37

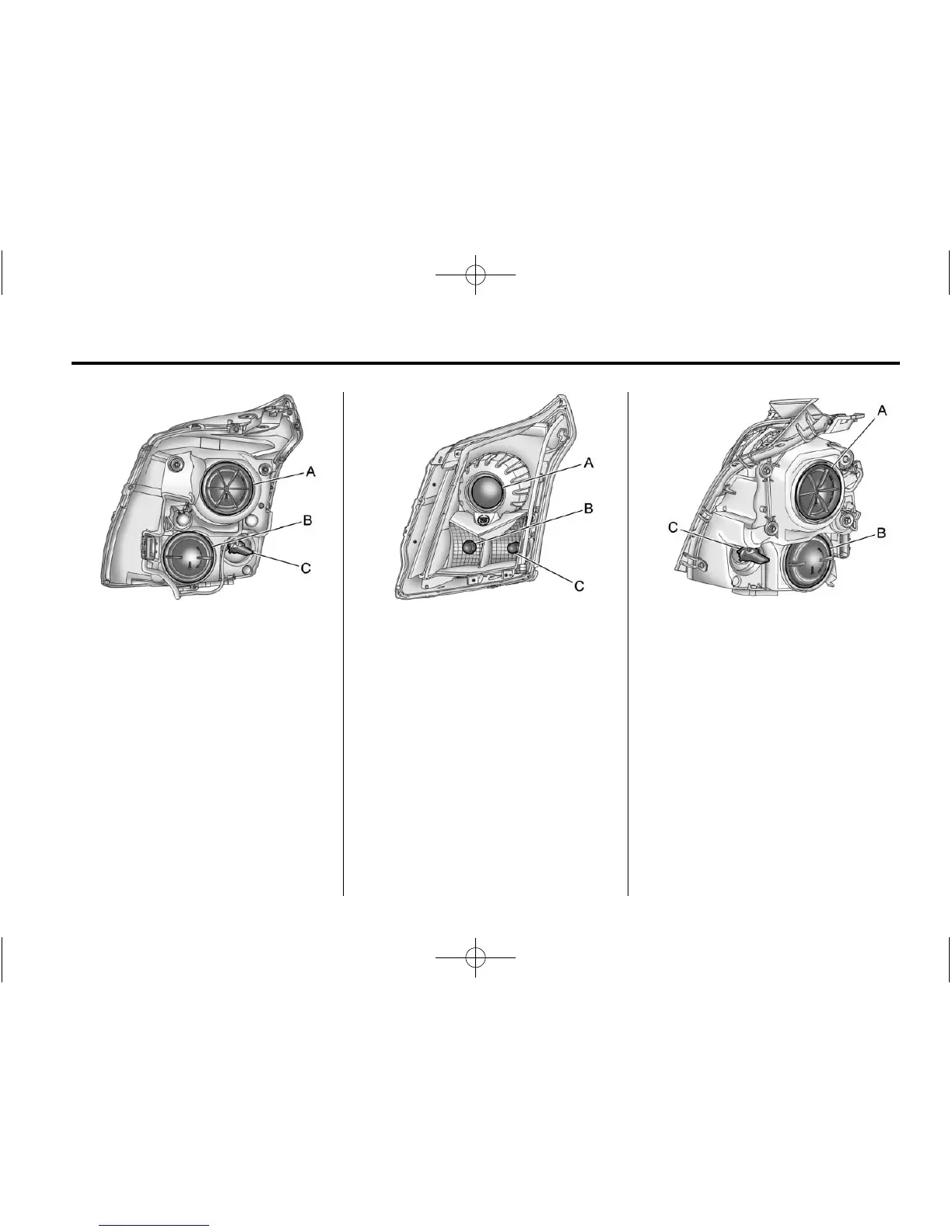

Base Headlamp Assembly
(Rear View Passenger Side)
A. Low‐Beam Headlamp/Daytime
Running Lamp (DRL)
B. High‐Beam Headlamp
C. Turn Signal Lamp
Up–Level Headlamp Assembly
(Front View Driver Side)
A. High/Low‐Beam Headlamp
(To be replaced at dealer only)
B. Daytime Running Lamp (DRL)
C. Turn Signal Lamp
Up–Level Headlamp Assembly
(Rear View Driver Side)
A. High/Low‐Beam Headlamp
(To be replaced at dealer only)
B. Daytime Running Lamp (DRL)
C. Turn Signal Lamp
