Vehicle Care 10-51
Mini Fuses Usage
RAIN SNSR Rain Sensor
BCM 6
Body Control
Module 6
ESCL
Electronic Steering
Column Lock
AIRBAG
Sensing and
Diagnostic Module
DLC
Data Link
Connection
IPC
Instrument Panel
Cluster
SPARE Not Used
BCM 1
Body Control
Module 1
BCM 2
Body Control
Module 2
Mini Fuses Usage
AMP/RDO Amplifier/Radio
HVAC
Heating Ventilation
& Air Conditioning
J—Case
Fuses
Usage
BCM 8
Body Control
Module 8
FRT BLWR Front Blower
Relays Usage
LOGIC RLY Logistics Relay
RAP/
ACCY RLY
Retained
Accessory Power/
Accessory Relay

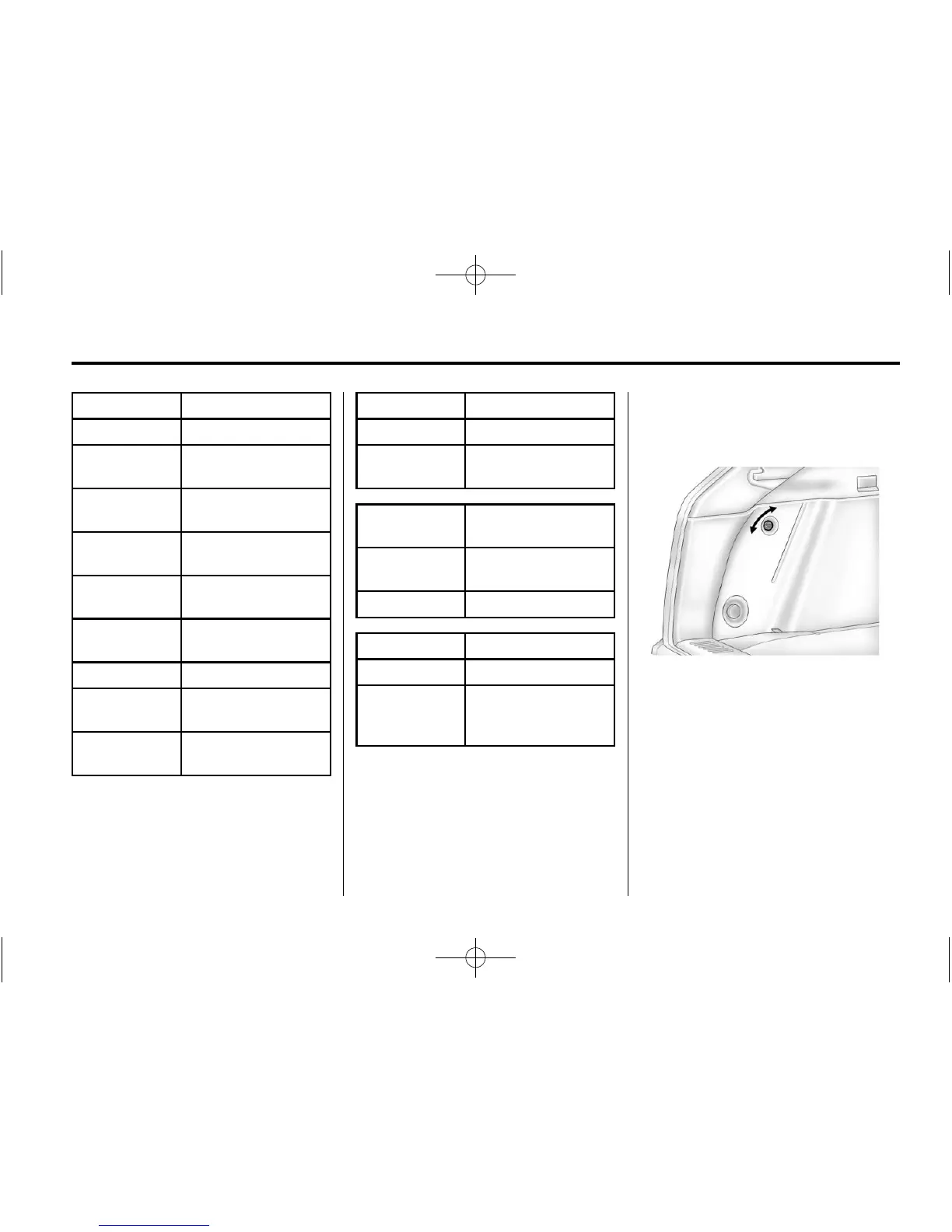

Rear Compartment Fuse
Block
The rear compartment fuse block is
located in the cargo area, on the
driver side of the vehicle behind the
lower trim panel. To open, turn the
latch with a flat bladed tool and pull
the trim panel from the edges to fold
it down.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
