Vehicle Care 275

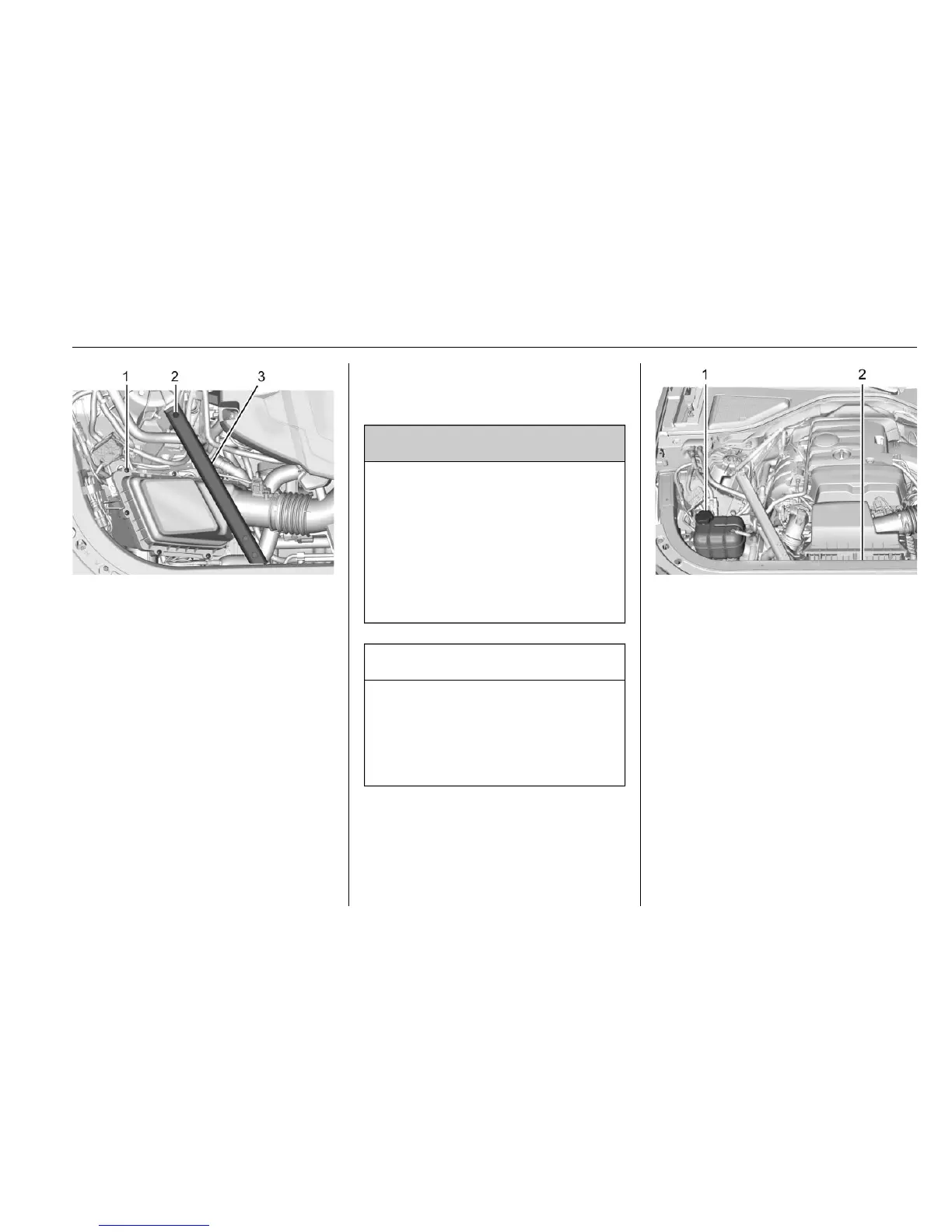

3.6L V6 Engine
1. Screws (6)
2. Bolts (3)
3. Diagonal Brace
1. Remove the three bolts (2) and
the diagonal brace (3).
2. Remove the six screws (1) on
top of the engine air cleaner/
filter cover.
3. Lift the engine air cleaner/filter
cover open on the hinge.
4. Lift and remove the engine air
cleaner/filter.
5. Inspect or replace the engine
air cleaner/filter.
6. Reverse Steps 1–4 to reinstall
the engine air cleaner/filter
cover and diagonal brace.
{
Warning
Operating the engine with the air
cleaner/filter off can cause you or
others to be burned. The air
cleaner not only cleans the air; it
helps to stop flames if the engine
backfires. Use caution when
working on the engine and do not
drive with the air cleaner/filter off.
Caution
If the air cleaner/filter is off, dirt
can easily get into the engine,
which could damage it. Always
have the air cleaner/filter in place
when you are driving.
Cooling System
The cooling system allows the
engine to maintain the correct
working temperature.
2.0L L4 Engine
1. Engine Coolant Surge Tank
and Pressure Cap
2. Engine Cooling Fan (Out
of View)
