Page 6

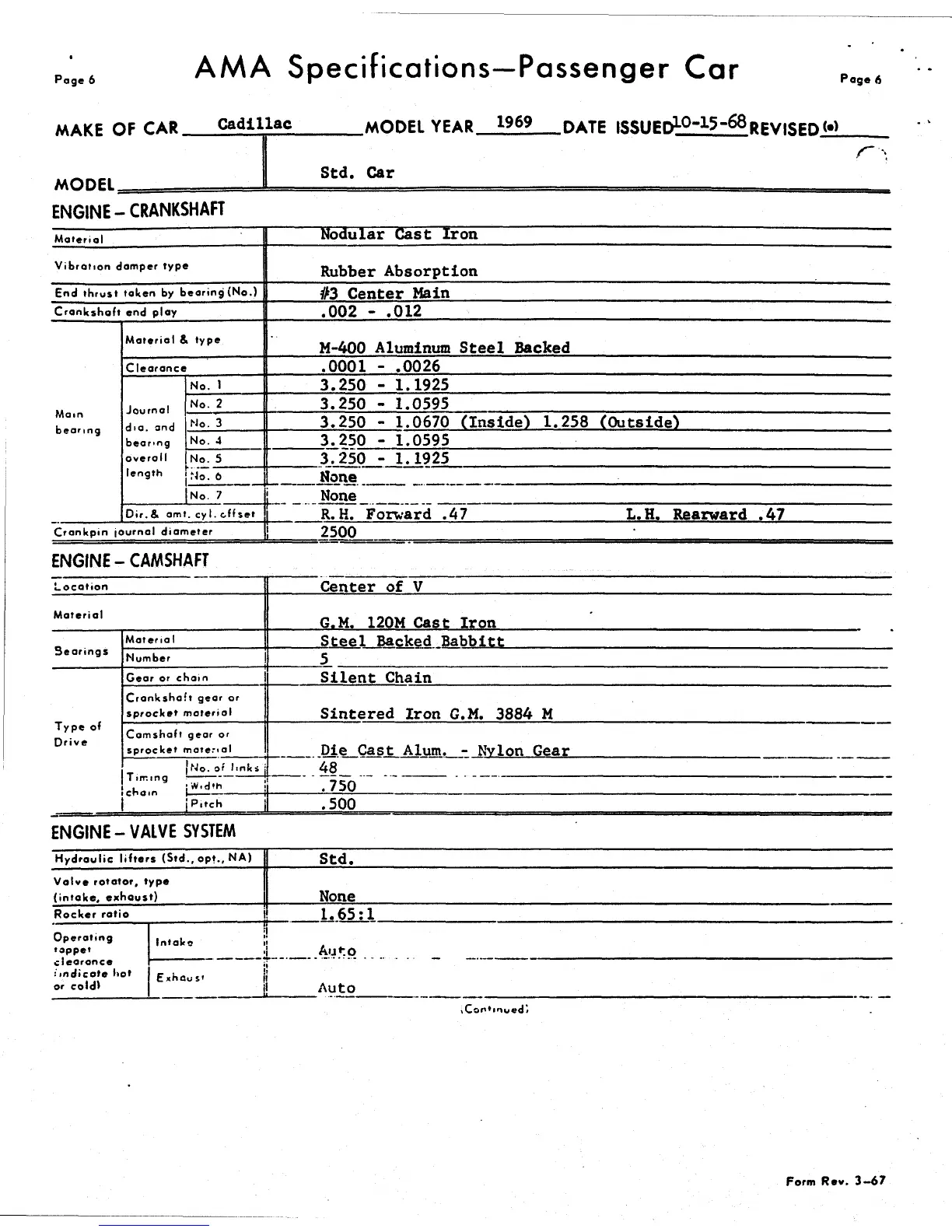

AMA Specifications—Passenger Car
Page 6
MAKE OF CAR Cadillac
MODEL YEAR ^69
DATE
ISSUED
10
"
3
^-
68
RPVISFn (•)
r
MODEL.
Std. Car
ENGINE-
Material
Vibration e
End thrust
Crankshaft
Mam
bearing
Crankpin |C
. CRANKSHAFT
amper type
taken by bearing (No.)
end play
Material & type
Clearance
Journal
dia. and
bearing
overall
length
No. 1 1
No. 2 1
No. 3
No. 4
No. 5
No. 6 j
No. 7
Dir.SV amt. cy 1. off set ]
>urnal diameter
Nodular Cast Iron
Rubber Absorption
#3 Center Main
.002 - .012
M-400 Aluminum Steel Backed
.0001 - .0026
3.250 - 1.1925
3.250 - 1.0595
3.250 - 1.0670 (Inside) 1.258 (Outside)
3.250 - 1.0595
3.250 - 1.1925
None
None
R. K. Forward .47 L.H. Rearward
.47
2500
ENGINE -
• CAMSHAFT
Location
Material
Searings
Type of
Drive
Material
Number
Gear or chain
Crankshaft gear or
sprocket material
Camshaft gear or
sprocket material
|No. of links
JhaiT i
Wld
'
h
[Pitch
Center of V
G.M. 120M Cast Iron
Steel Backed Babbitt
5
Silent Chain
Sintered Iron G.M. 3884 M
Die Cast Alum. - Nvlon Gear
48
.750
.500
ENGINE-VALVE SYSTEM
Hydraulic lifters (Std., opt., NA)
Valve rotator, type
(intake, exhaust)
Rocker ratio
Operating
tappet
clearance
'indicate hot
or coldl
Intake
Std.
None
1.65:1
Aijf.o
IT i_ i'
txhaus' |l
i! Auto
^Continued*
Form Rev. 3-67
