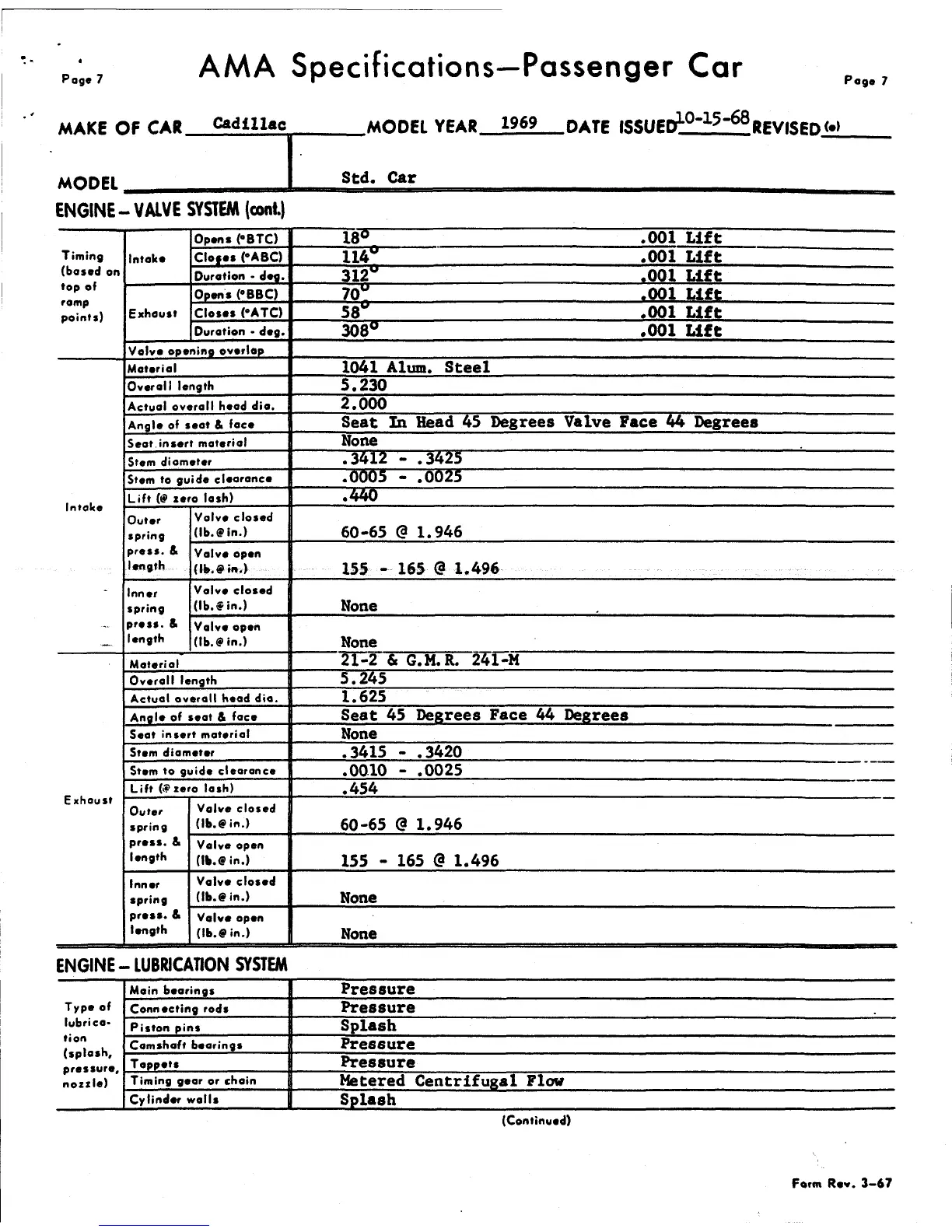

AM A Specifications—Passenger Car
Poge7
MAKE OF CAR Cadillac MODEL YEAR 1969 p
A
TE ISSUED^£^REVISED<»>
MODEL
ENGINE-VALVE SYSTEM (cont.)
Std. Car
Timing
(based on
top of
points)
Intake
-
•-
Exhoust
ENGINE-
Type of
lubrica-
tion
(splash,
pressure.
nozzle)
Intake
Exhaust
Opens fBTC)
Closes (-ABO
Duration • deg.
Opens CBBC)
Closes CATC)
Duration - deg.
Valve opening overlap
Material
Overall length
Actual overall head dia.
Angle of seat & face
Seot.insert material
Stem diameter
Stem to guide clearance
Lift (i? zero lash)
Outer
spring
press. &
length
ill!
Valve closed
(lb.(?in.)
Valve open
(rb.em.)
Valve closed
(lb.* in.)
Valve open
(lb.(?in.)
Material
Overall length
Actual overall head dia.
Angle of seat & face
Seat insert material
Stem diameter
Stem to guide clearance
Lift (i?zero lash)
Outer
spring
press. &
length
Inner
spring
press. &
length
Valve closed
(lb. <?in.)
Valve open
(lb.® in.)
Valve closed
(lb. <»in.)
Valve open
(lb.$in.)
-LUBRICATION SYSTEM
Main bearings
Connecting rods
Piston pins
Camshaft bearings
Tappets
Timing gear or chain
Cylinder walls
18°
114"
312"
70
u
58°
308°
.001 Lift
.001 Lift
.001 Lift
.001 Lift
.001 Lift
.001 Lift
1041 Alum. Steel
5.230
2.000
Seat In Head 45 Degrees Valve Face 44 Degrees
None
.3412 - .3425
.0005 - .0025
.440
60-65 @ 1.946
155 - 165 @ 1.496
None
None
21-2 & G.M.R. 241-M
5.245
1.625
Seat 45 Degrees Face 44
Degrees
None
.3415 - .3420
.0010 - .0025
.454
60-65 @ 1.946
155 - 165 @ 1.496
None
None
Pressure
Pressure
Splash
Pressure
Pressure
Metered Centrifugal Flow
Splash
(Continued)
