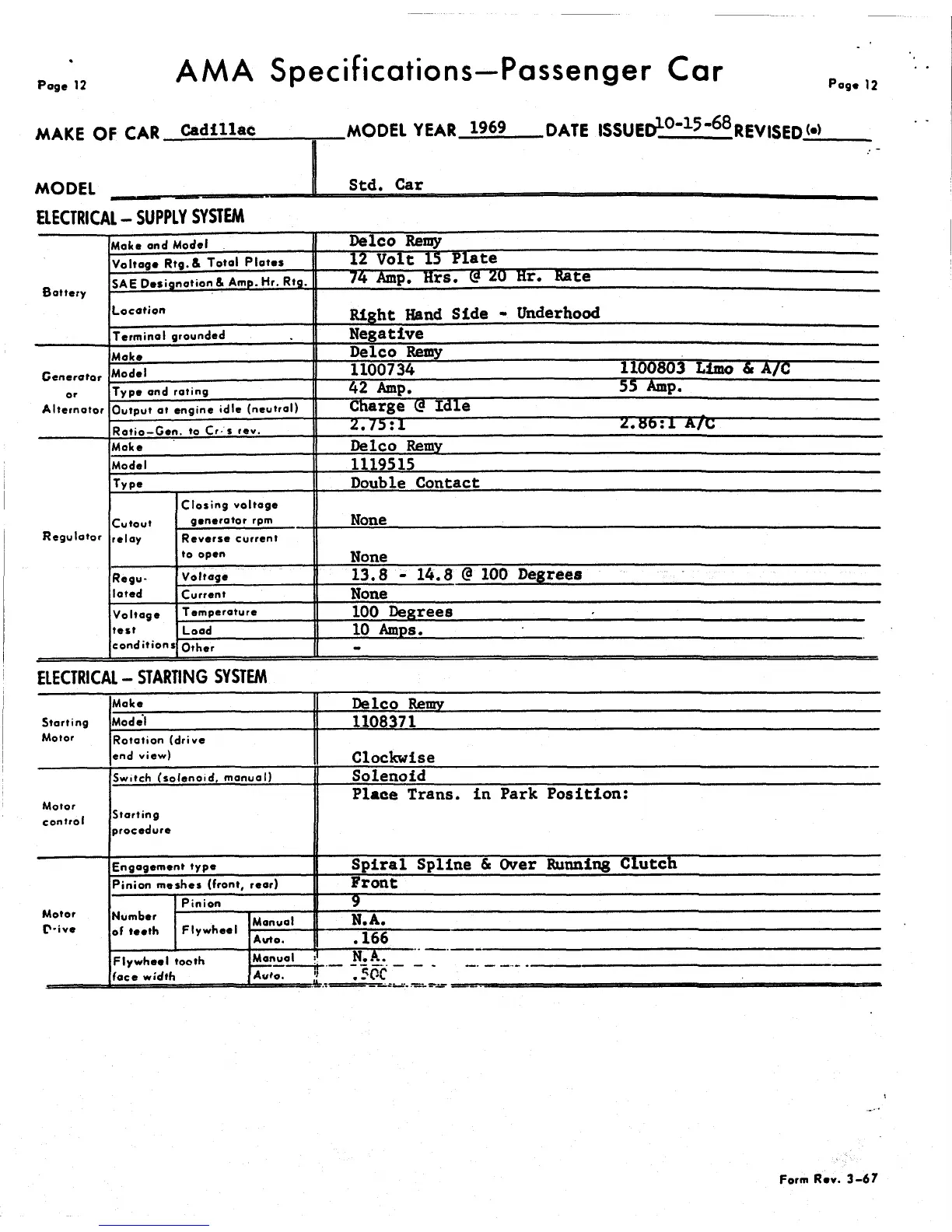

* AMA Specifications—Passenger Car
D
,
Page 12 • ^ Page 12
MAKE OF CAR Cadillac MODEL YEAR 1969 DATE ISSUEDl£^£^£REVISEDi±
MODEL
Std. Gar
ELECTRICAL-SUPPLY SYSTEM
Battery
or
Alternator
Regulator
Make and Model
Voltage Rtg.& Total Plates
SAE Def ignation & Amp. Hr. Rtg.
Location
Terminal grounded
Make
Model
Type and rating
Output at engine idle (neutral)
Ratio-Gen. to Cr- s rev.
Make
Model
Type
Cutout
relay
Regu-
lated
Voltage
test
conditions
Closing voltage
generator rpm
Reverse current
to open
Voltage
Current
Temperature
Load
Other
Delco Reray
IS Volt 15 Plate
74 Amp. Hrs. tf 20 Hr. Rate
Right Hand Side - Underhood
Negative
Delco Remy
1100734
42 Amp.
1100803 Limo & A/C
55 Amp.
Charge @ Idle
2.75:1 z.Bt>:i A/U
Delco Remy
1119515
Double Contact
None
None
13.8 - 14.8 @ 100 Degrees
None
100 Degrees
10 Amps.
-
ELECTRICAL - STARTING SYSTEM
Starting
Motor
Motor
control
Motor
P-ive
Make
Model
Rotation (drive
end view)
Switch (solenoid, manual)
Starting
procedure
Engagement type
Pinion meshes (front, rear)
Number
of teeth
Pinion
Flywheel
face width
Manual
Auto.
Manual
Auto.
Delco Remv
1108371
Clockwise
Solenoid
Place Trans, in Park
Spiral Spline & Over
Position:
Running Clutch
Front
9
N.A.
.166
N.A.
! .50C
Form Rev. 3-67
