Cadillac DeVille 1969 - Page 260

Page 13

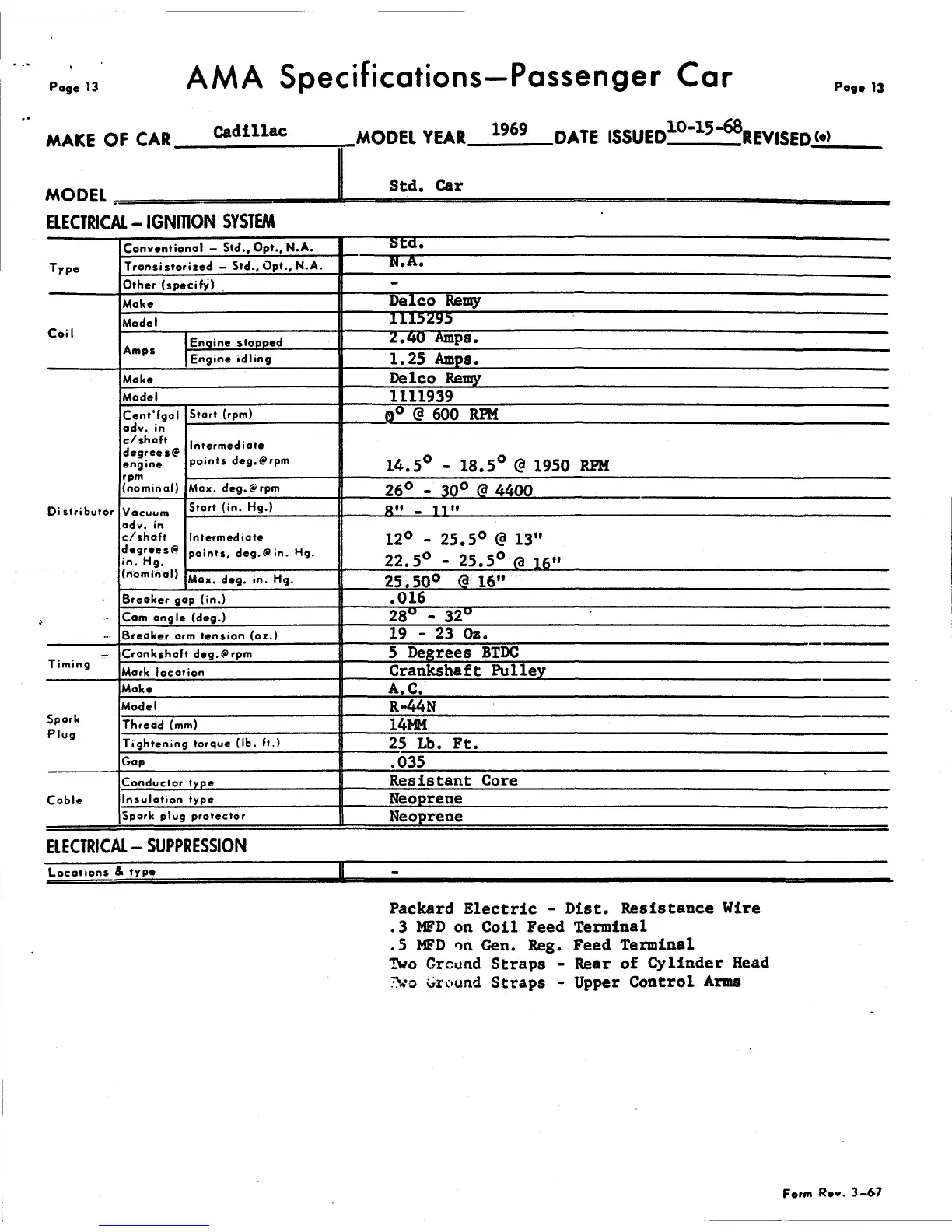

AMA Specifications—Passenger Car
Pog
.
13
MAKE OF CAB Cadillac MODEL YEAR
1969
DATE ISSUED^£^?REVISED«_
MODEL
ELECTRICAL-IGNITION SYSTEM
Std. Car
Type
Coil
Di stributor
...
=•
Timing
Spark
Plug
Coble
Conventional - Std., Opt., N.A.
Transistorized - Std., Opt., N.A.
Other (specify)
Moke
Model
Amps
Engine stopped
Engine idling
Make
Model
Cent'fgol
adv. in
c/shaft
degrees?
engine
rpm
(nominal)
Vacuum
adv. in
c/shaft
degrees^
in. Hg.
(nominal)
Start (rpm)
Intermediate
points deg. <? rpm
Max. deg.* rpm
Start (in. Hg.)
Intermediate
points, deg.Pin. Hg.
Max. deg. in. Hg.
Breaker gap (in.)
Cam angle (deg.)
Breaker arm tension (oz.)
Crankshaft deg.<? rpm
Mark location
Make
Model
Thread (mm)
Tightening torque (lb. ft.)
Gap
Conductor type
Insulation type
Spark plug protector
sta.
W.A.
-
Delco Remy
1115295
2.40 Amps.
1.25 Amps.
Delco Remy
1111939
0° (? 600 REM
14.5° - 18.5° @ 1950 RPM
26° - 30° Q 4400
R" _ n»
12° - 25.5° @ 13"
22.5° - 25.5°•& 16»
25.50° @ 16"
.016
28" - 32"
19 - 23 Oz.
5 Degrees BTDC
Crankshaft Pulley
A.C.
R-44N
14MM
25 Lb. Ft.
.035
Resistant Core
Neoprene
Neoprene
ELECTRICAL-SUPPRESSION
Locations & type
Packard Electric - Dist. Resistance Wire
.3 MFD on Coil Feed Terminal
.5 MFD on Gen. Reg. Feed Terminal
Two Ground Straps - Rear of Cylinder Head
TVo Ground Straps - Upper Control Arms
Form Rev. 3-67
