Returning the Seat to an Upright
Position
To return the seatback to the upright position, do the
following:

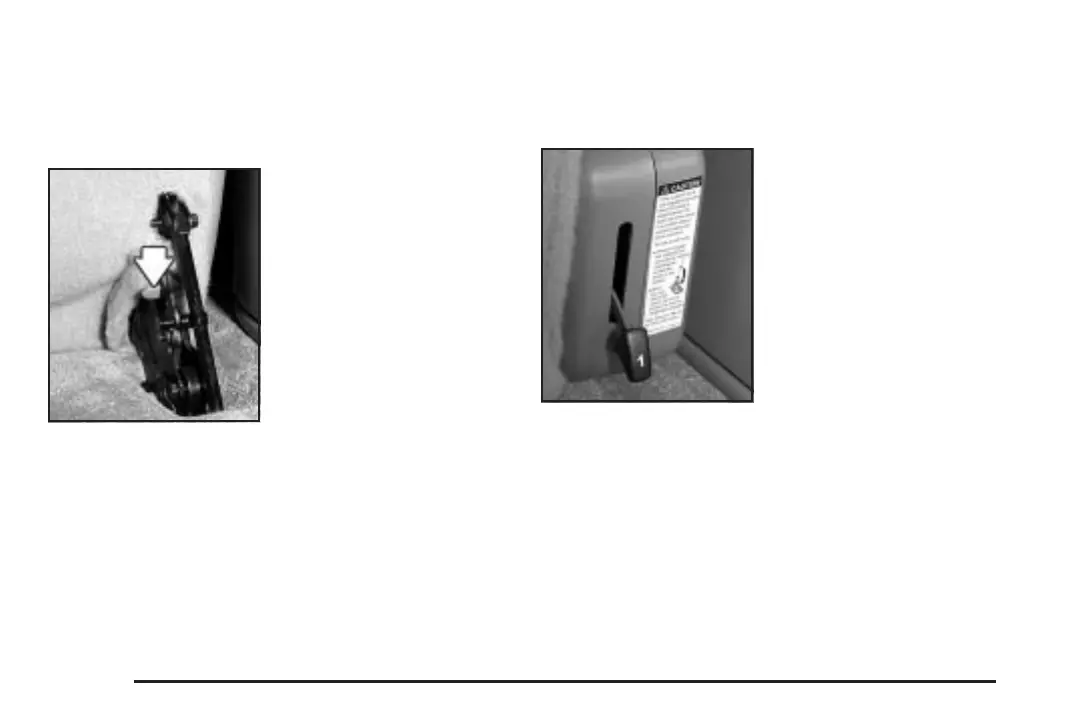

1. Pull the lever (arrow)
on the prop rod bracket
until the rod unlatches
from the seat
bracket.
2. Place the prop rod back into the storage position.
3. Pull the seat toward you and push firmly down until
the seat latches in the floor.
4. Try pulling it up to be sure it is locked into place.
5. Pull up on the release lever labeled 1 and then pull
up on the seatback until the seatback locks into the
upright position.
Removing the Bench Seat
To remove the bench seat, do the following:
1. Open the liftgate.
2. Fold the seatback
forward onto the seat
cushion by using
the lever labeled 1.
The seat cannot
be removed unless the
seatback is folded.
1-22
