Caen 968 - Fig. 2.4: Bi Polar Output Equivalent Rms Noise V S. Shaping Time (T S )

Document type: Title: Revision date: Revision:
User's Manual (MUT) Mod. N968 Spectroscopy Amplifier 14/06/2004 4
NPO: Filename: Number of pages: Page:
00100/03:N968x.MUTx/04 N968_REV4.DOC 14 11

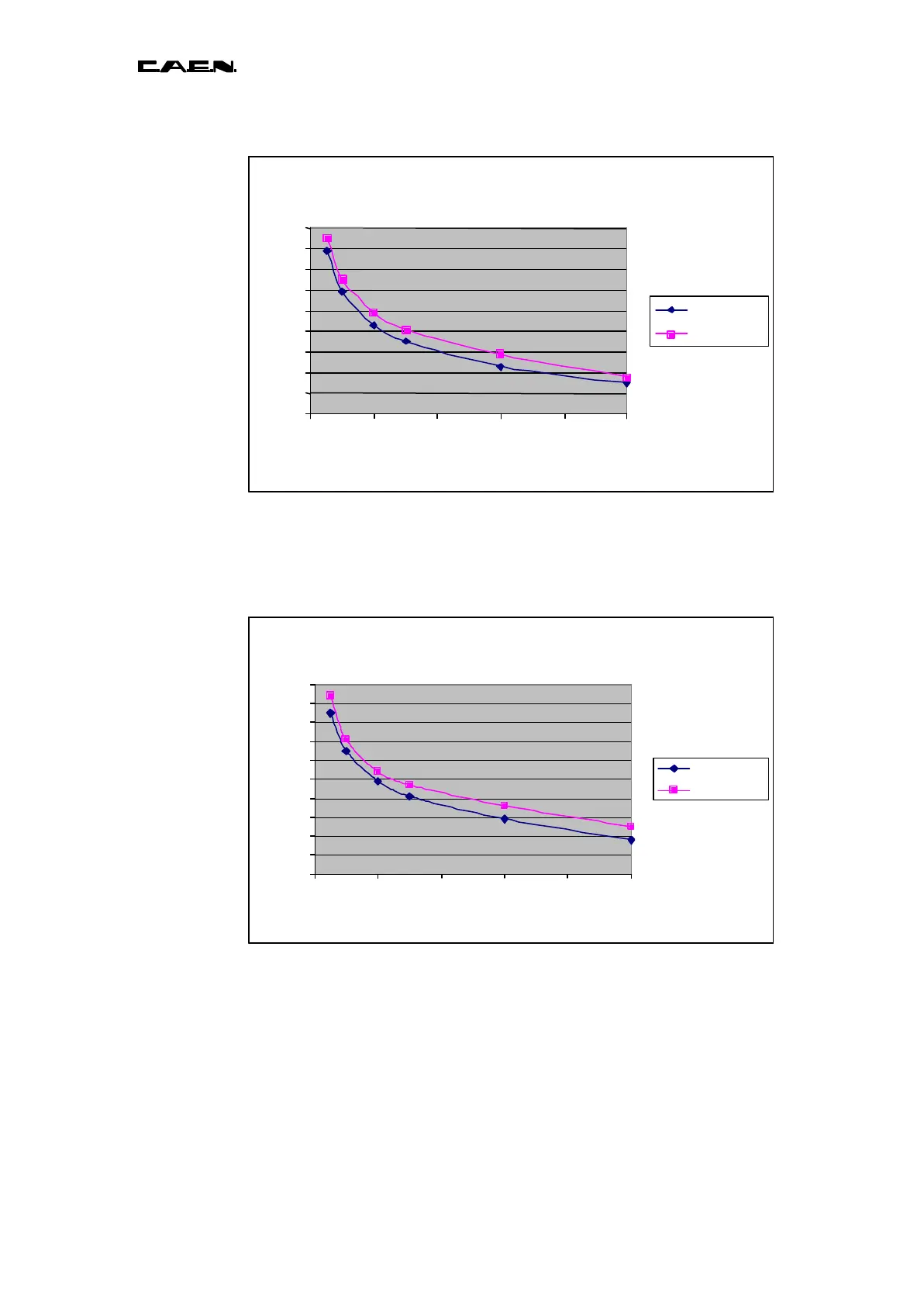

Fig. 2.3: UNIpolar Output Equivalent RMS Noise Vs. Shaping Time (Ts)
Fig. 2.4: BIpolar Output Equivalent RMS Noise Vs. Shaping Time (Ts)
UNIPOLAR OUT
0
1
2
3
4
5
6
7
8
9
0 2 4 6 8 10
Ts (µs)
Equivalent RMS Noise (µV)
Gain=1000
Gain=100
BIPOLAR OUT
0
1
2
3
4
5
6
7
8
9
10
0 2 4 6 8 10
Ts (µS)
Equivalent RMS Noise (µV)
Gain=1000
Gain=100
