Installation / Assembly
2007 Barbecue Grill and Cart Owner’s Manual Page 11
LTR20071038, Rev. B

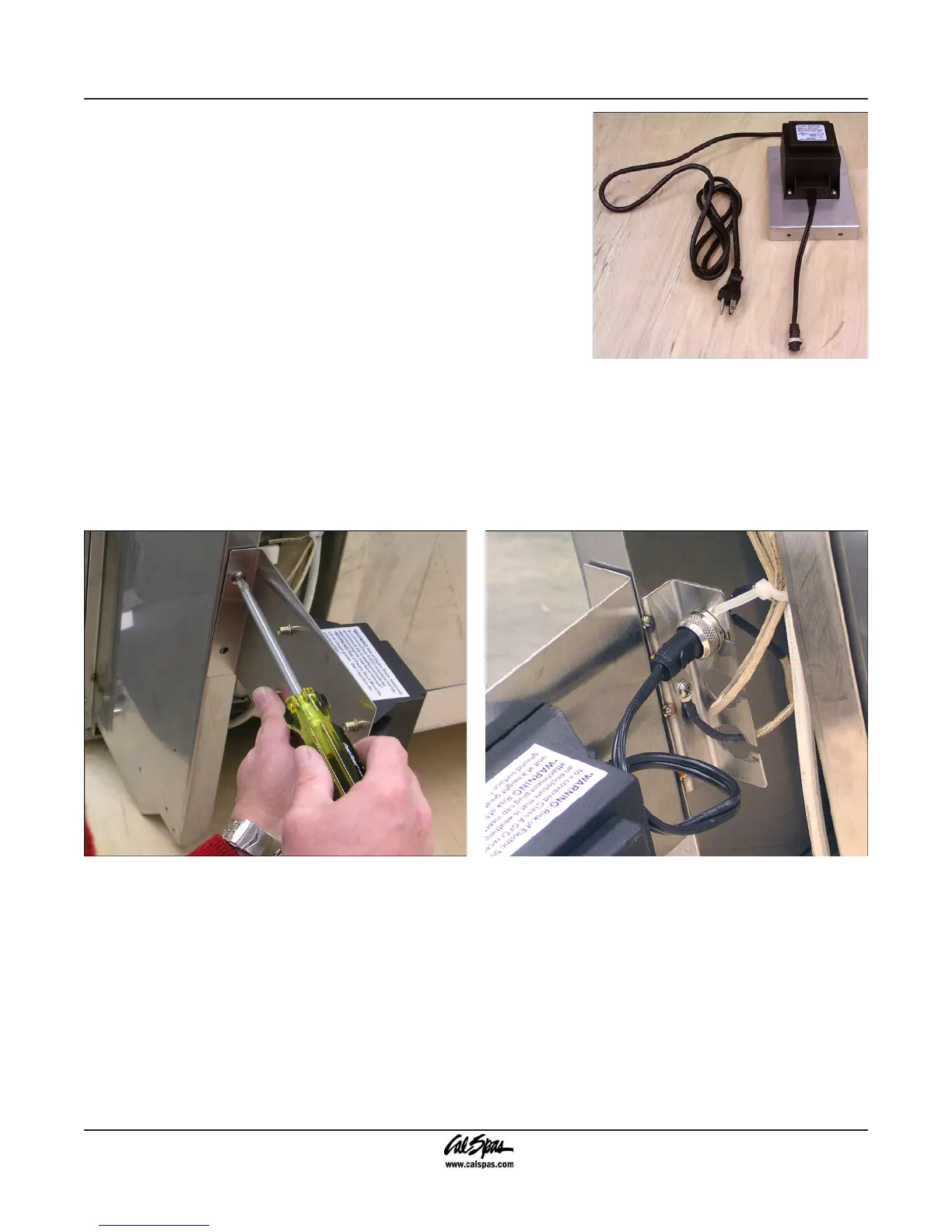

Installing the Transformer
All grills with electrical components such as lights or a convection
fan will require the transformer to be installed and plugged in before
you can use it. This needs to be done before the grill is inserted in
the island or modular cart. When the transformer is attached to the
grill chassis, use care in placing the grill in the island cutout to avoid
hitting the transformer.
Remove the transformer and the metal screws from the plastic
bag.
Place the grill on a sturdy surface and tilt it back to show the
underside of the grill.
1.
2.
Using the metal screws, attach the transformer to
the left side of the grill near the internal electrical
connection. Attach the metal plate to the outside
surface of the grill as shown in the figure below.
3. When you have rmly tightened the screws and
nuts, connect the plug from the transformer to the
grill. Screw on the stainless steel retainer.
4.
