001-5006-000_FCC.docx Page 42
outside the filter limits, the diagnostic information will be considered invalid and will not be displayed.

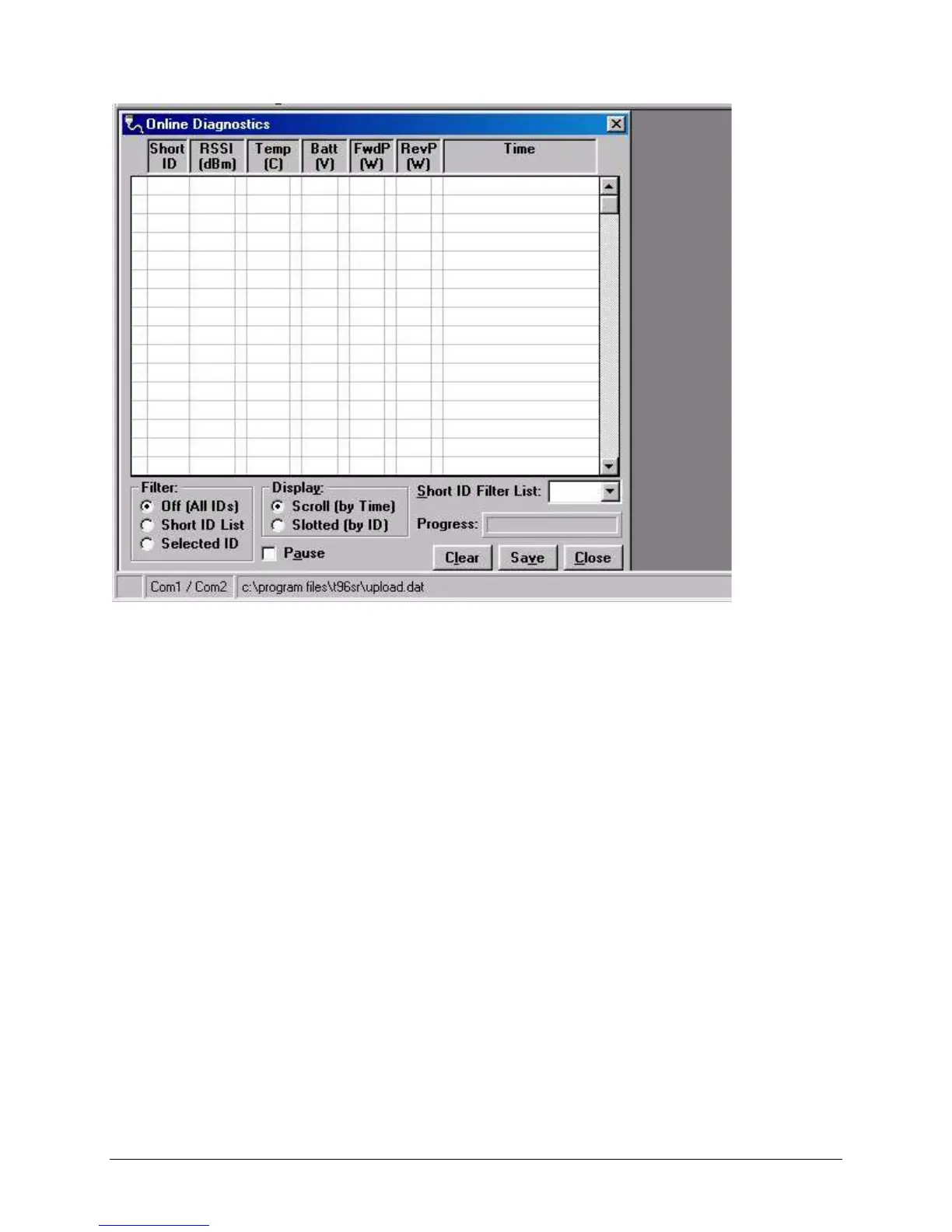

Figure 2-18 Online Diagnostics
The following Online Diagnostics are gathered:
Short ID
The Short ID displays the Short ID of the unit transmitting the diagnostics.
2-27
001-4006-101
RSSI
RSSI (Received Signal Strength Indicator) displays the RSSI (in dBm) ID of the unit transmitting the
diagnostics. This is the RSSI sampled during the last transmission received.
Temp
Temp displays the internal case temperature (in Celsius) of the unit transmitting the diagnostics.
Batt
Batt displays the supply voltage (in volts) of the unit transmitting the diagnostics.
FwdP
FwdP displays the forward power (in watts) of the unit transmitting the diagnostics.
RevP
RevP displays the reverse (reflected) power (in watts) of the unit transmitting the diagnostics.
Time
Time is the time stamp when the diagnostics were received.
Filter
Filter allows the user to filter Short IDs. The following options are available:
Off (All IDs): no IDs are filtered out
ID List: only the IDs in the Filter ID List are shown
Selected ID: only the selected ID in the Filter ID List is shown
Display
Display allows the user to format on screen data. The following options are available:
Scroll (by time): displays the diagnostics as they are received
Slotted (by ID): sorts the diagnostics by Short ID. Using this option, each Short ID will have one row of
