TECHNICAL DATA SHEET FOR
MODEL BEF- 5 BEAM END FITTINGS
The Caldwell Model BEF Beam End Fittings are designed to allow qualified riggers to build SPREADER
BEAMS meeting ASME B30.20 standards in a range of spread lengths and capacities. Each SPREADER BEAM
built to the specifications listed in this technical document using the Caldwell Model BEF is classified as a
"Structural Lifting Device" and ASME BTH-1 DESIGN CATEGORY B and SERVICE CLASS 0. It will support
loads up to its rated capacity as described in the tables listed in this document when used correctly. It can utilize
either wire rope or chain top rigging.

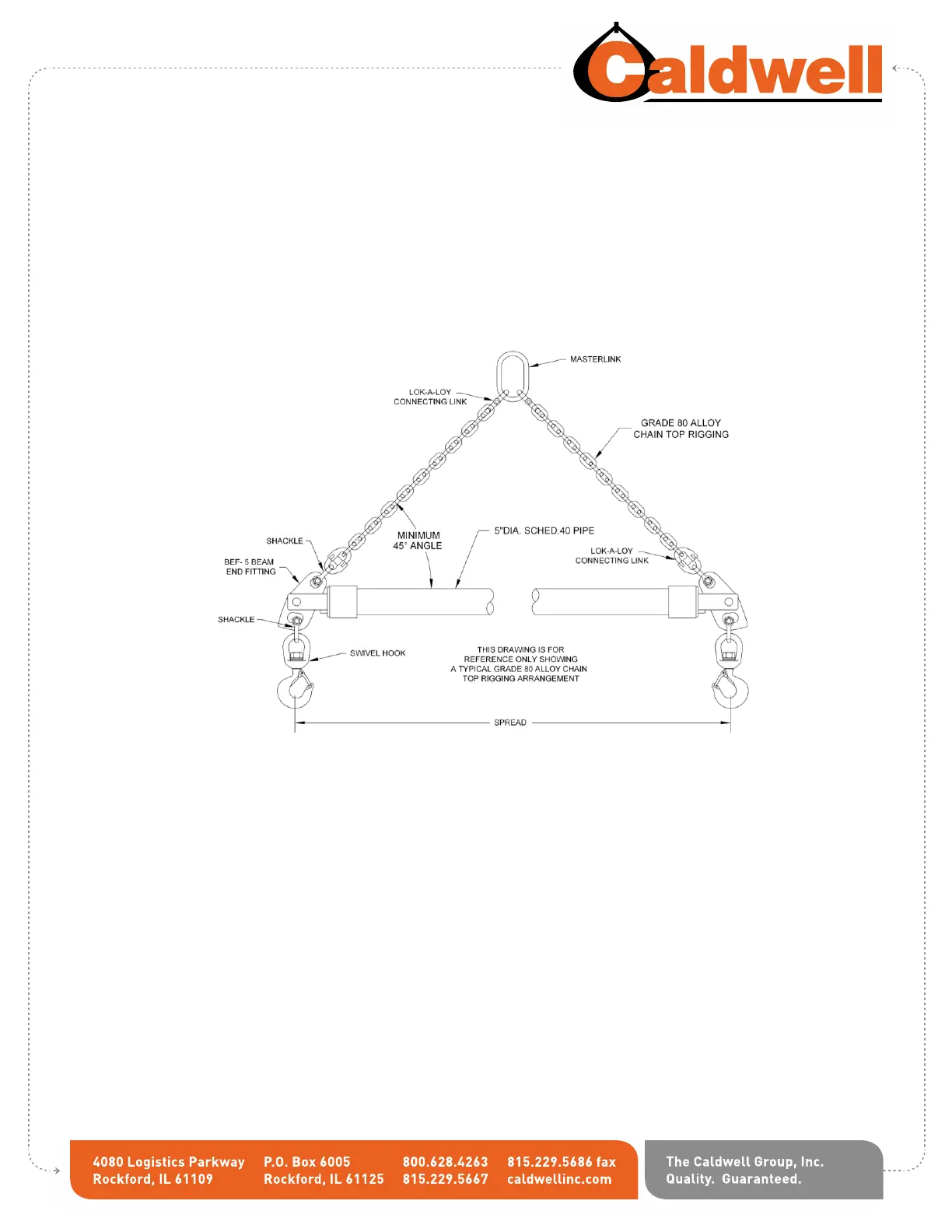

Top Rigging minimum angle is 45°. Angles less than 45° will result in the spreader system being at risk of an
overloaded condition.
By observing the following operational procedures you can assure reliable handling of the loads you wish to
lift.
1. INSPECT THE LIFTER FOR DAMAGE OR EXCESS WEAR BEFORE EACH USE. Check
for structural bending, excess wear at load points and pins, cracked or broken welds, or
deformed hooks. If this inspection reveals any defect, place unit out of service and report this to
the designated person.
2. NEVER EXCEED RATED CAPACITY.
3. POSITION LIFTER SO THAT LOAD IS PROPERLY BALANCED AND LEVEL.
4. DO NOT LIFT PEOPLE. DO NOT LIFT OVER PEOPLE. DO NOT LIFT HIGHER
THAN NECESSARY. DO NOT LEAVE LOAD UNATTENDED WHEN SUSPENDED.
