Calorex AW550 - Page 17

Page 16 SD092750 ISSUE 34
SUMP HEATER
EXCEPT 550F/800F MACHINES FITTED WITH SOLER & PALAU FAN
550F/800F WITH SOLER & PALAU ONLY
FAN CAPACITOR
FAN
COMPRESSOR
C
S
R
DELAY TIMER
LP
SWITCH
FAULT
LAMP
MAINS LAMP
RUN CAP
START CAP
INTERLOCK TERMINALS
FAN MOTOR
L2
CONTACTOR
RELAY/HARD IF FITTED
DEFROST STAT'
DEFROST LAMP
HP
SWITCH
POOL STAT
N/O CLOSES ON
WATER TEMP RISE
SOLENOID VALVE
FAN CAP
HUMIDISTAT
CONTROL FUSE
FAN FUSE
L1
FUSES
CONTACTORS
OVER
LOADS
FAN
COMPRESSOR
R
S
C
HEATER
DELAY TIMER
DEFROST
STAT
DEFROST
LIGHT
HP
SWITCH
LP
SWITCH
FAN AUX N/O
COMPRESSOR
OVERLOAD
CONTROL FUSES
FAULT LIGHT
MAINS LIGHT
L2 L1
FLOW SWITCH
INTERLOCK
TERMINALS
SOLENOID
COIL B
POOL STAT
N/O CLOSES ON
WATER TEMP RISE
HUMIDISTAT
FAN OLOAD
COMP AUX
(NC)
SOLENOID
COIL A
COMP AUX
(NO)
RUN CAP
START CAP
SOFT START THERMAL O/LOAD AND FAULT LIGHT IF FITTED

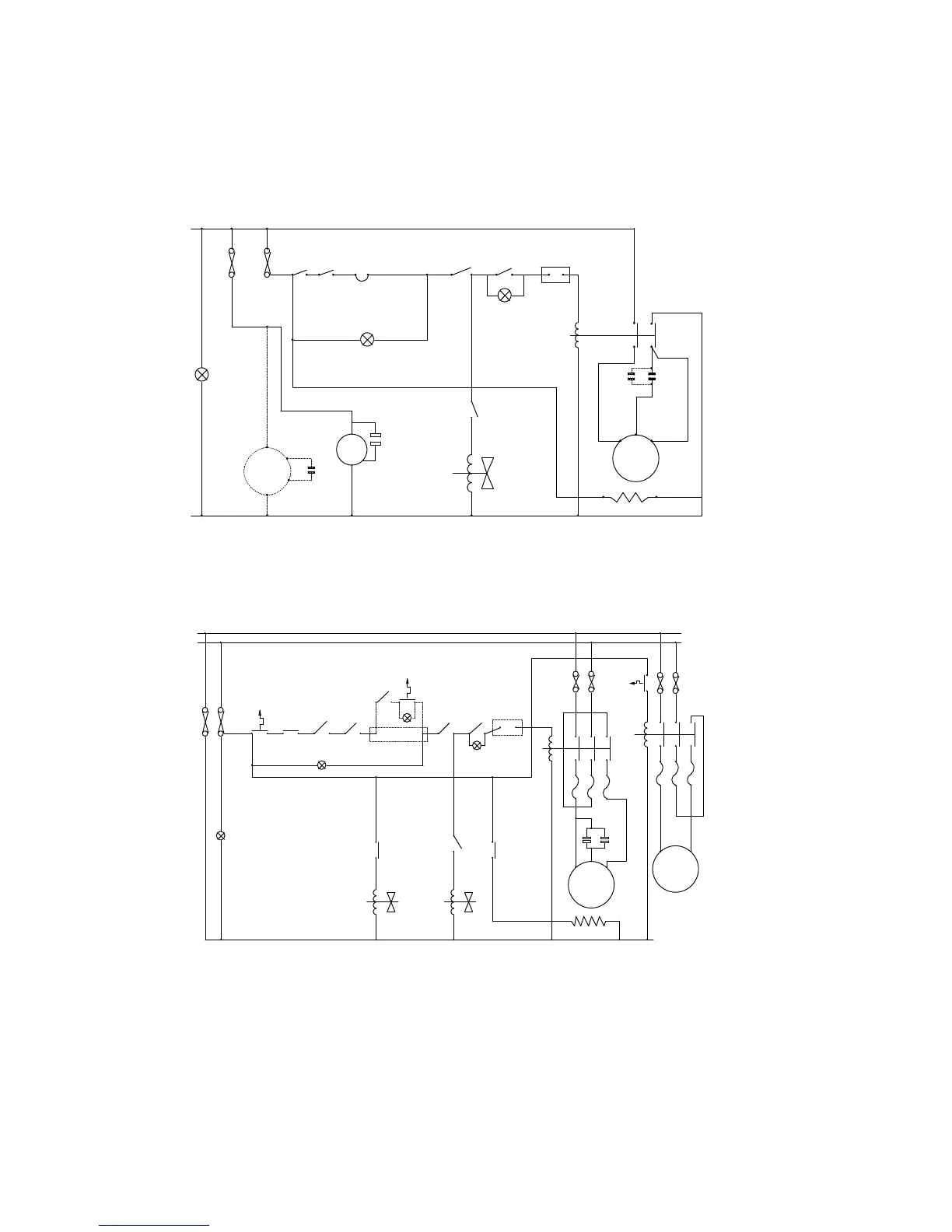

ELECTRICAL CIRCUIT DIAGRAM
AW550/800/1200 SINGLE PHASE 220V 60Hz (1 ~ )
ELECTRICAL CIRCUIT DIAGRAM
AW1400/1800 SINGLE PHASE 220V 60Hz (1 ~ )
