Diagrams

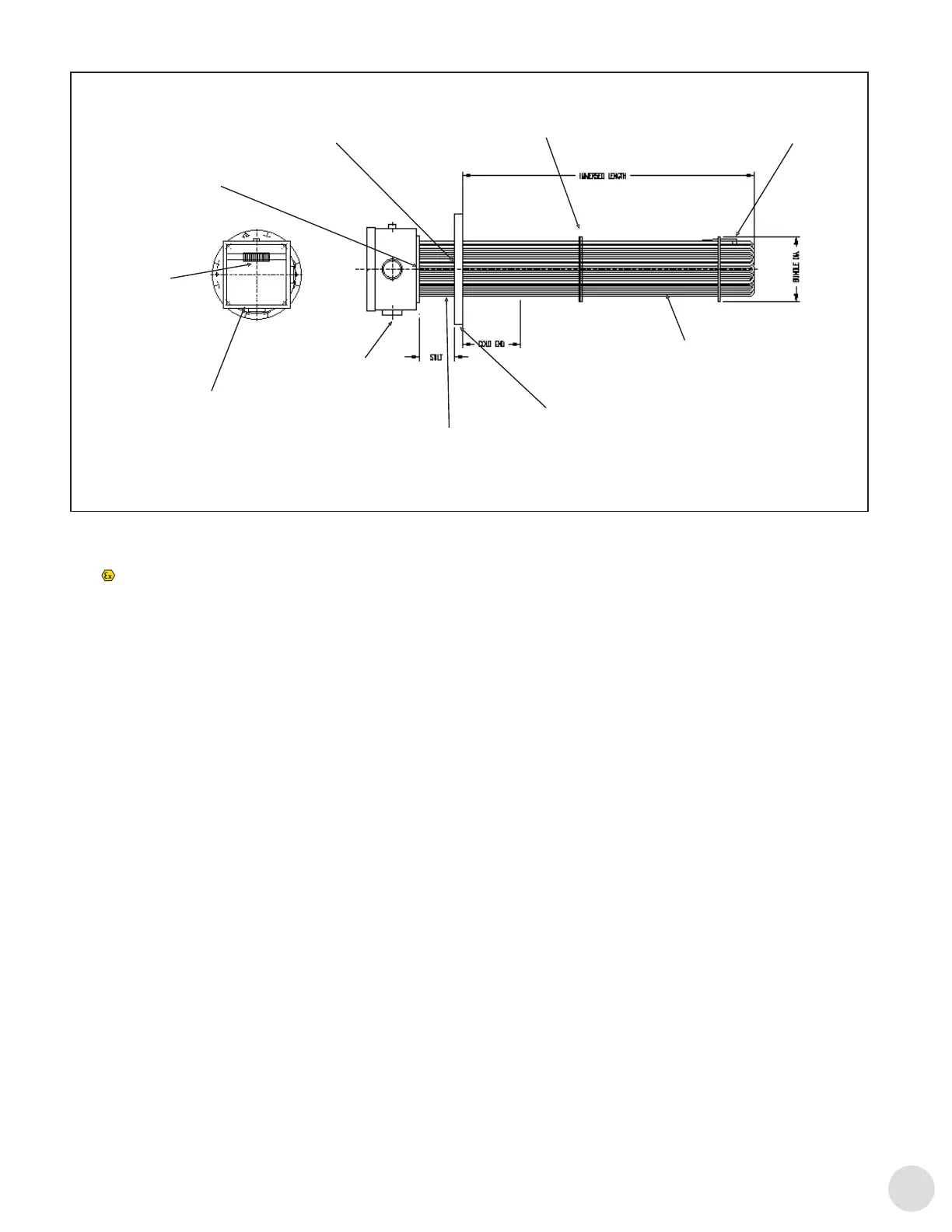

FLANGE TEMPERATURE SENSOR
(THERMOCOUPLE OR RTD)
TERMINAL BOX TEMPERATURE SENSOR
(THERMOCOUPLE OR RTD)
INCREASED SAFETY
TERMINAL BLOCKS
WIRING CONNECTION HUBS
(METRIC OR IMPERIAL)
HEATER FLANGE
- ANSI B16.5/16.47, DIN, JIS, CUSTOM
- AVAILABLE IN CARBON STEEL, STAINLESS
- STEEL, INCOLOY, INCONEL, OTHERS
HEATING ELEMENT
- AVAILABLE IN STEEL, STAINLESS
- STEEL, INCOLOY, INCONEL, OTHERS
SHEATH TEMPERATURE SENSOR
(THERMOCOUPLE OR RTD)
ELEMENT SUPPORT
(KEEPER)
Figure3
Round Box
Stilted
Electrical Ratings: Voltages up to 690 Vac, 1 or 3 PH., Wattages Up To 4,000KW, 50 OR 60Hz
Ambient Temperature Rating: -60 °C to +80 °C
Markings: IECEx Ex eb IIC Gb, T1 to T6
ATEX II 2 G Ex eb IIC TI TO T6 Gb
Mounting Orientation: Horizontal or Vertical
Immersion Heater - Square or Rectangular Box (IP64) - Stilted
INCREASED SAFETY
TERMINAL BOX - SQUARE OR RECTANGULAR
(RATED IP64) AVAILABLE IN
PAINTED STEEL OR STAINLESS STEEL
CAN BE ROTATED
STILTED TERMINAL BOX
TO REDUCE TEMPERATURES
AT ELECTRICAL
CONNECTIONS
