Calrec S2 - PQ4068 Mono Channel

14
............................................................................................................................................................................................................................................
S2

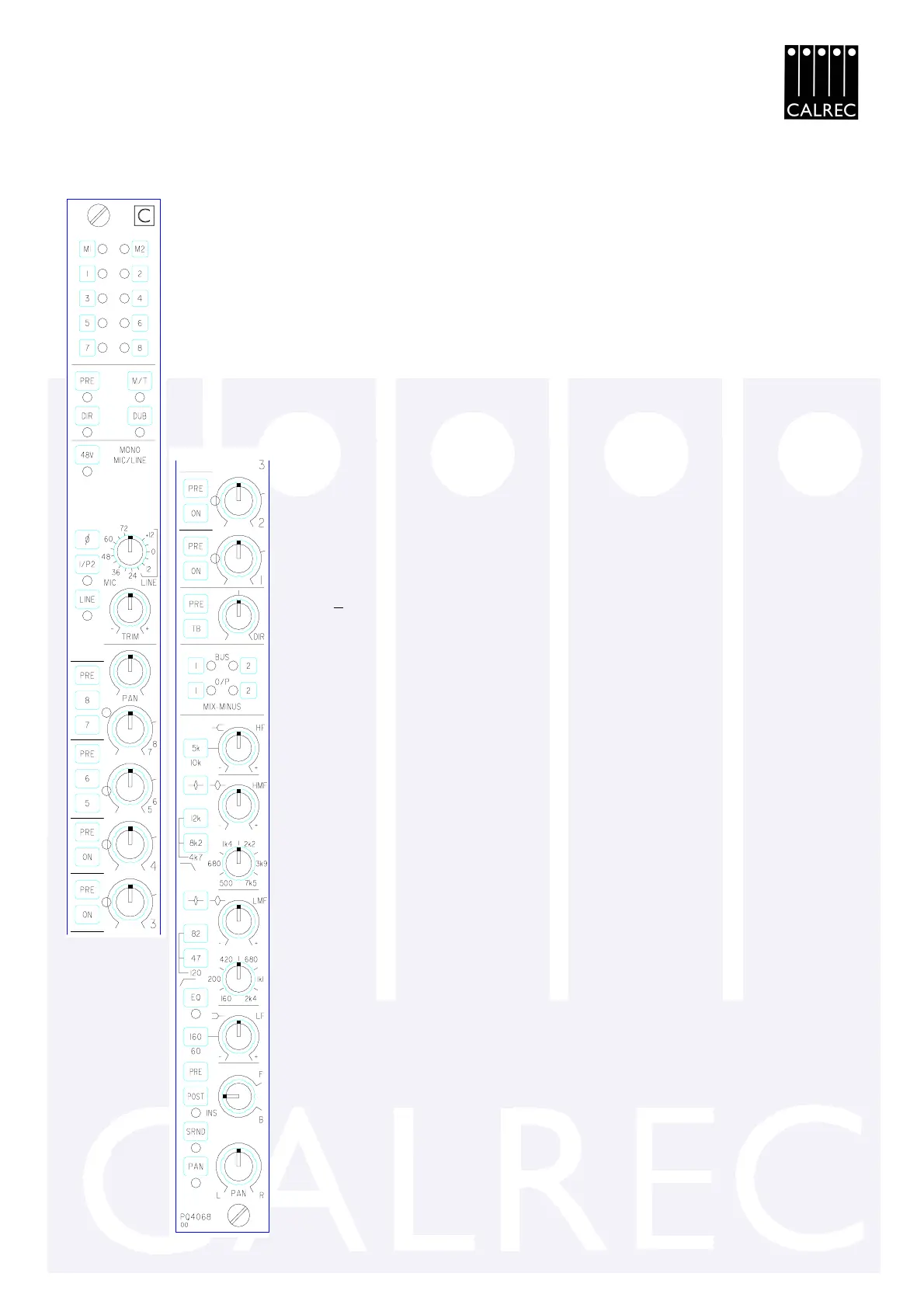

2.1 PQ4068 MONO CHANNEL
Routing to: 2 Main Stereo outputs, Red LED’s
8 Stereo groups, Yellow LED’s
Optional assignable routing to 24 or 32 Multitrack recording outputs normally from Post channel
Pan but switchable to Pre Fader (or Pre Eq internally) or Direct Output (post Direct Output level
control).
Pre/post fader: Red/green LED’s. Direct: Yellow LED. M/T Assign: Green LED when channel/
group selected. Enables routing from channel/group and performs forward routing interrogation via
Multitrack Bargraph displays.
OverDUB button releases channel set globally for Multitrack replay to previous setting for over-
dubbing. Yellow LED.
48V phantom power button. Red LED.
Φ Phase reverse button.
I/P2 selects second inputs Mic & Line. Green LED.
LINE selects Line inputs: Changes Red LED (Mic) to Green.
Coarse gain rotary switch: 6dB steps - Restricted Line range.
TRIM: +6dB Mic & Line.
DIRect Output (mono) with pre/post fader selection (pre eq internal option) and
provision for talkback injection.
8 Auxiliary Outputs: Common gain control and common pre/post fader selection on
5/6 and 7/8. 7 & 8 are stereo with Pan control. Red/green LED indication of pre/
post fader selection when output is selected. Aux 1 & 2 can be muted by P.A.
selection system if required (internal switch).
MIX MINUS: 2 independent systems with BUS & O/P selection to Direct Output.
Bus 2 overides Bus 1. Internal pre/post fader selection of bus feed Yellow LED’s.
A Mix Minus bus can have several feeds & several outputs - not necessarily the
same number. Each output is a mix of the other bus feeds except its own feed
unless the bus is not selected.
4-band Equaliser with 2 parametric mid bands and double shelf selection on LF &
HF bands. LF & HF filters 3-position selection. EQ in/out with Red LED.
Pre & Post fader insert selection with standard level balanced in & out interface.
Yellow LED.
Surround selects odd numbered outputs & groups to be L-R and even numbered
outputs & groups to be CENTRE-SURROUND. Aux 8 becomes STEREO
SURROUND with PAN control.
FRONT/BACK pan between L-C-R and surround.
L-R PAN control with In/Out selection & Red LED.
