Calrec S2 - MU3804-2 Large Stereo Bargraph; MU3807-2 Small Stereo Bargraph; MU4333-2 Large Stereo Bargraph - Revsd. Cols

36
............................................................................................................................................................................................................................................
S2

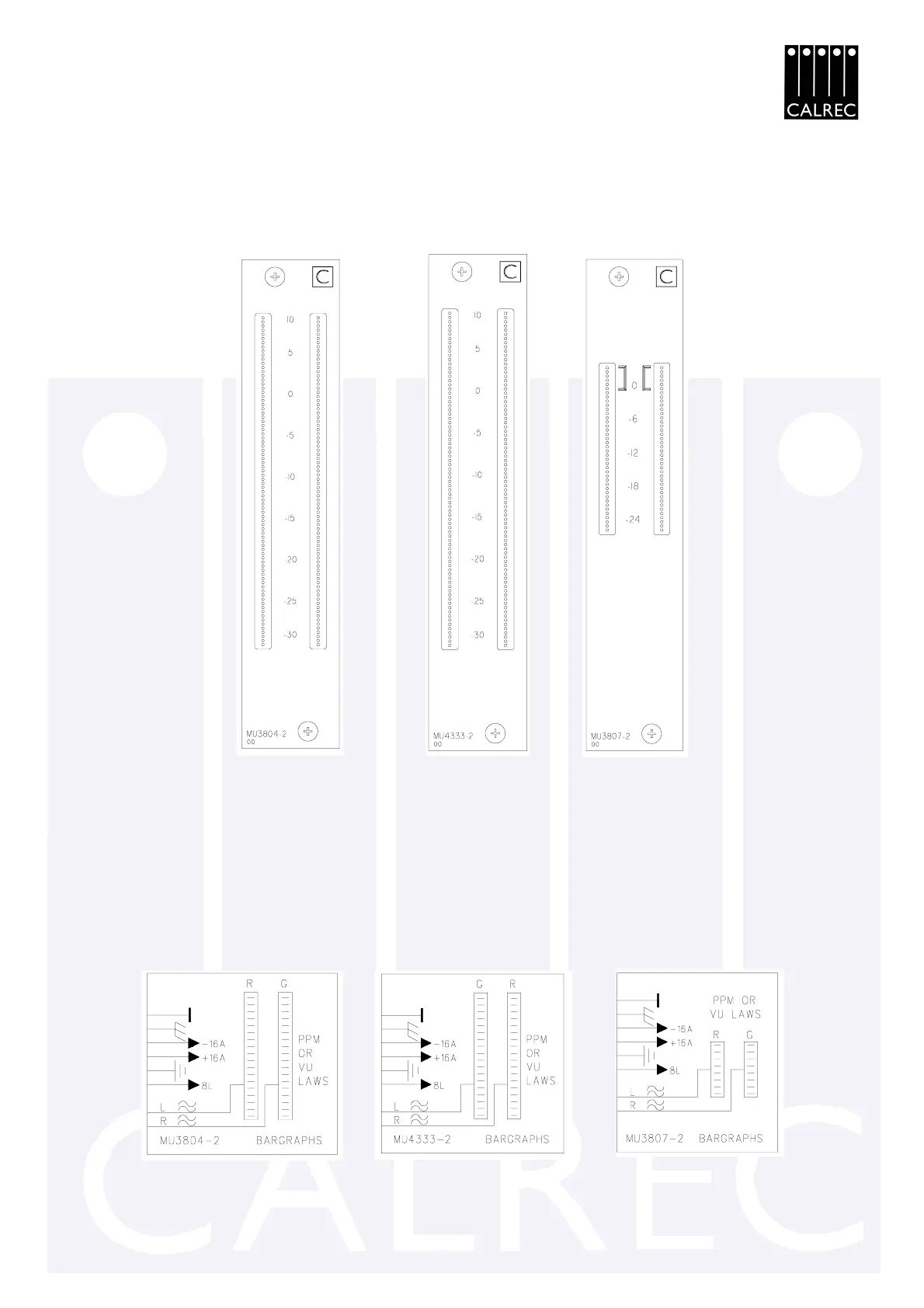

2.21 MU3804 LARGE STEREO BARGRAPH
2.22 MU4333 LARGE STEREO BARGRAPH - (Revsd. cols)
2.23 MU380SMALLSTEREO BARGRAPH
Twin LED bargraphs - 40 LED's each for good resolution.
Left hand bar is RED.
Right hand bar is GREEN. (reversed colours on MU4333)
Bars brighten at 0dB representing +6 or +8 dBu for PPM or +4dBu
(SCALE 0) for VU (set internally).
