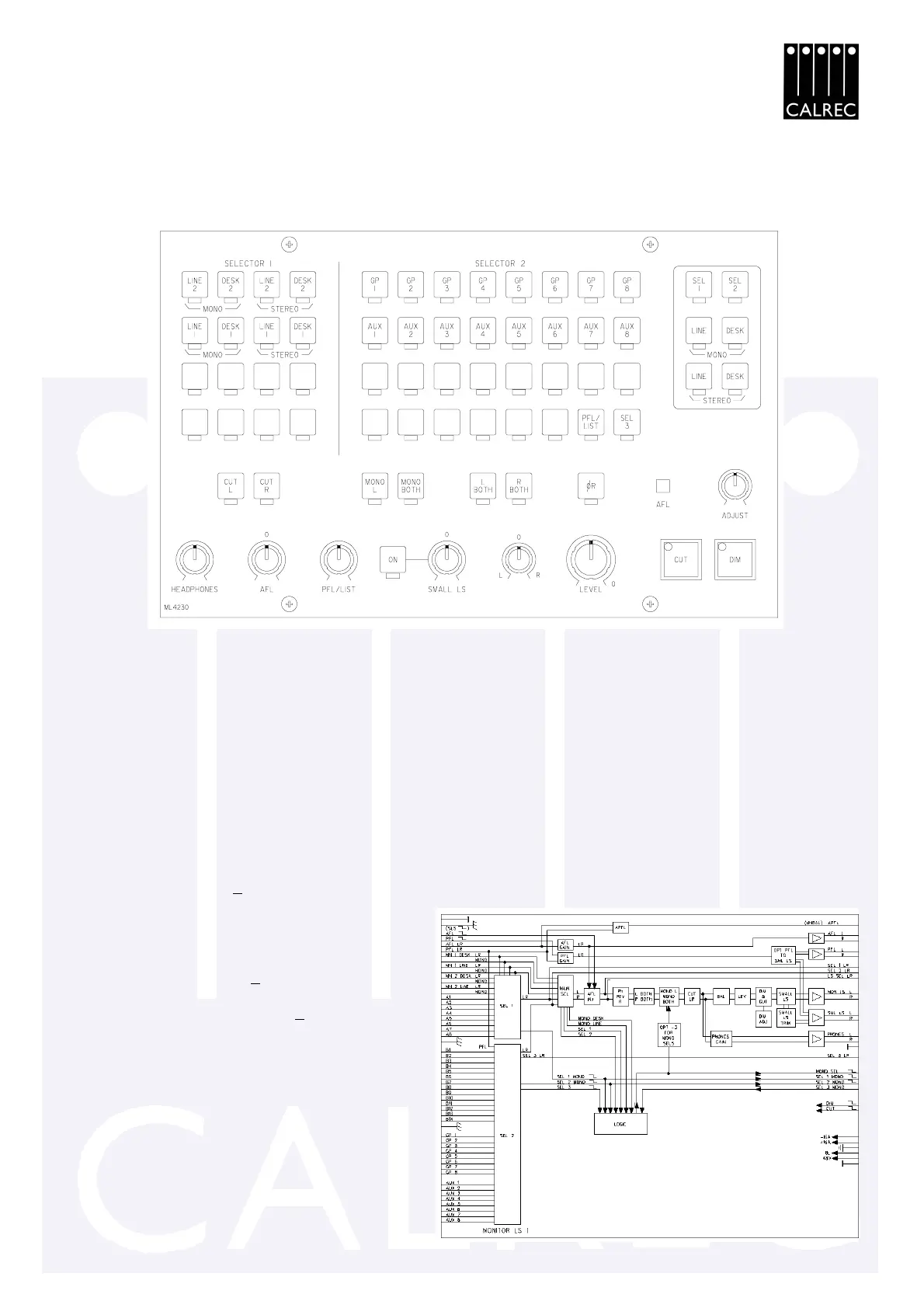

2.11 ML4230 MONITOR L.S.
SELECTOR 1: 16 selections as show. 8 external stereo. Green LEDs.
SELECTOR 2: 32 selections as shown. 14 external stereo.
Facility for bringing in selections from a LS2 panel via SEL 3. Green LEDs.
MAIN selector: 6 selections: SEL 1 & 2 & Main 1 outputs. Red LEDs.
LS Mode Selections: 7 buttons with Red LEDs and AFL over-ride red LED.
HEADPHONES: Level control to separate output. +10/- oo
AFL: Trim +10dB.
PFL: Level control. +10/- oo
SMALL LS: Button option with Trim to
near-field LS +10dB.
BALANCE Control: +3dB.
GAIN Control: 0/- oo
CUT & DIM buttons with Dim level
adjust. -6/-30dB.
Red LEDs.
ML4230
