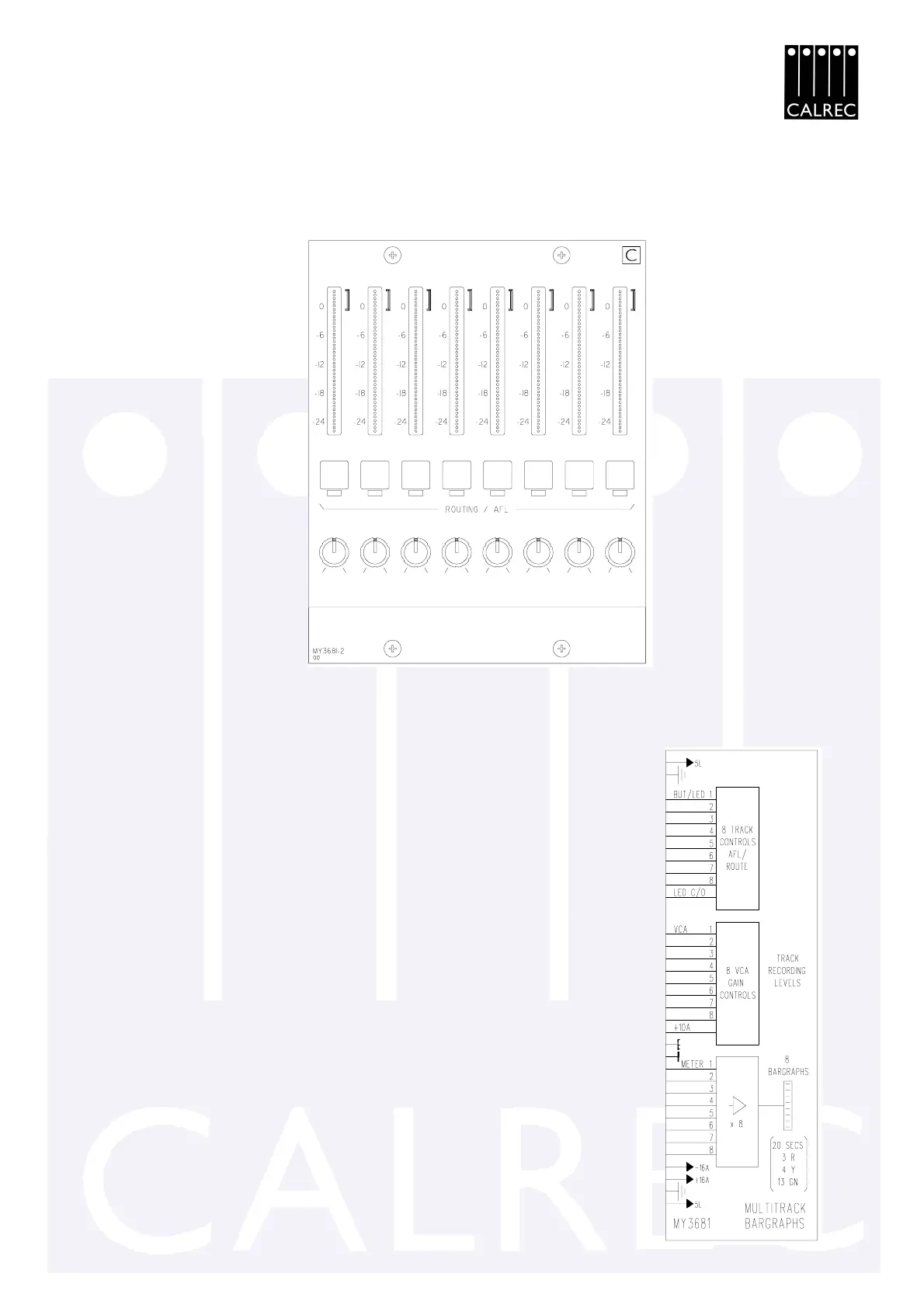

2.14 MY3681 MULTI-TRACK BARGRAPH/CONTROL
Each Bargraph Control panel provides control over 8
tracks. The Bargraph Meters are GREEN from -oo to -6,
YELLOW from -6 to 0, and RED from 0 to +6. There are
usually 3 panels for 24 tracks and 4 for 32 track systems.
ROUTING/AFL Buttons:
These normally display the current ROUTING assignment
for the current selected channel or group (forward interro-
gation), in GREEN.
The buttons are mechanically momentary and are elec-
tronically latched. Tracks are selected and deselected on
each push/release cycle. AFL track selections are dis-
played in RED.
The eight/8 Track Record Send level controls provide +10/
oodB control. The displays can be factory set for 0 = +/-
6dB.
