Ordering Guide: 1000 Integrated Radio & 1000 Connectorized Radio with Sync
4 AP and SM Installation Examples
This section provides illustrations showing the placement of ePMP systems with their ancillary com-
ponents, cables, and accessories.

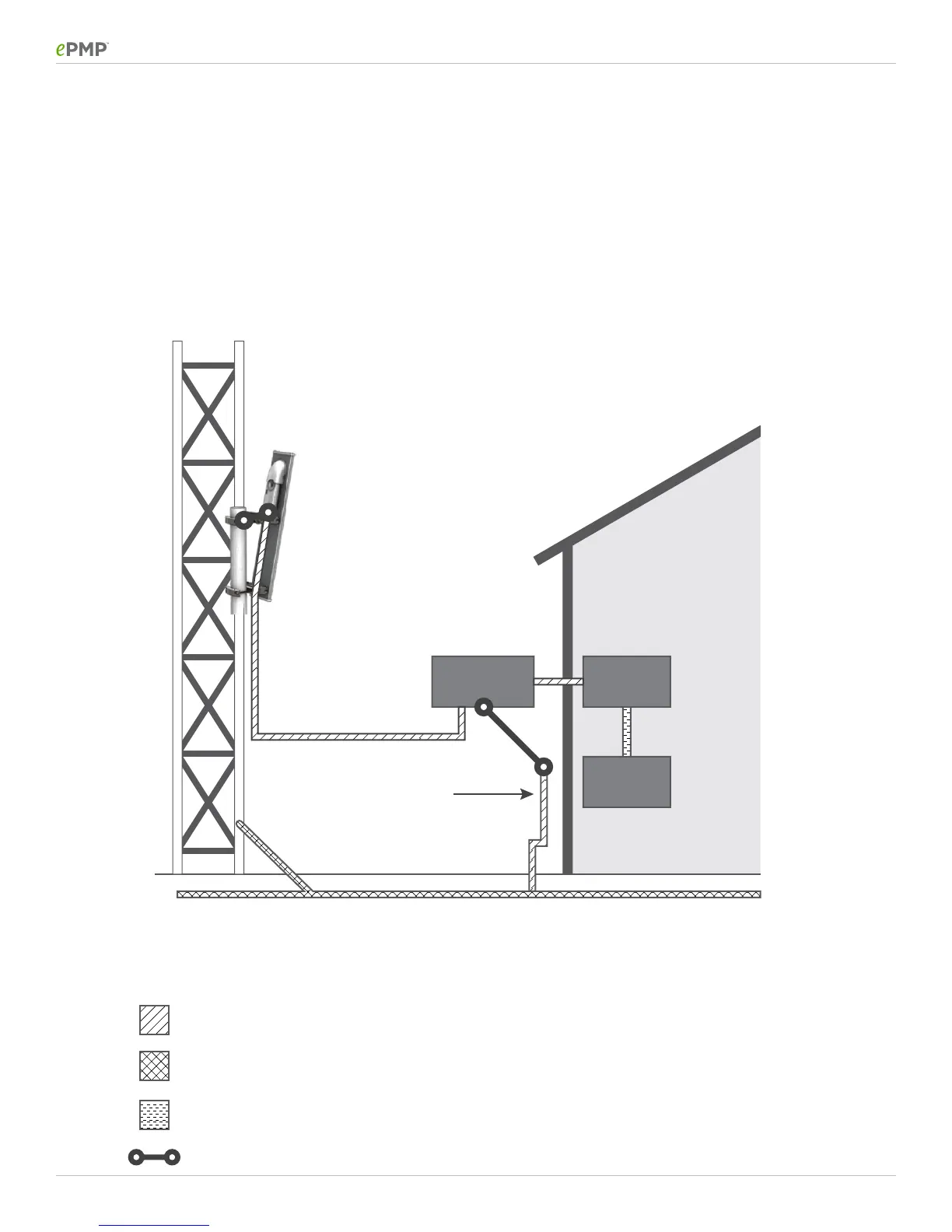

4.1 ePMP Radio Mounted on a Tower
AP/SM
Equipment
Building
Ground Ring
NETWORK
SWITCH
SURGE
SUPPRESSOR
POWER
SUPPLY
External Ground Bar
Legend
Outdoor CAT5e cable: shielded with copper-plated steel
Tower/Building ground system
CAT5e cable
Ground Cable
