13
❷

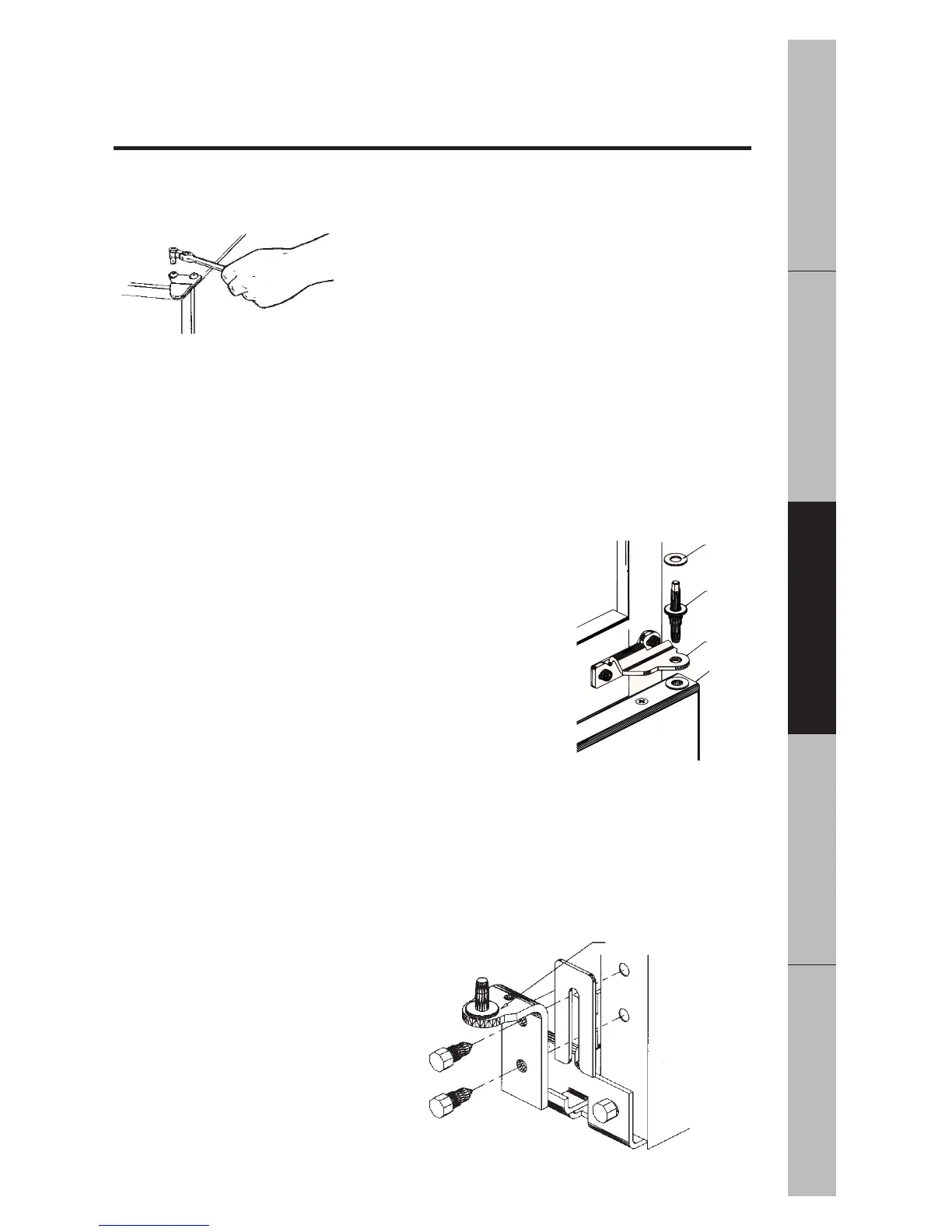

Remove Fresh Food Door (Top Door)
a.Tape the door shut with masking tape.
b.Remove the hinge cover (on some models).
With a 5/16" socket, remove 2 screws that hold
the top hinge to the cabinet.
c. Lift the hinge straight up to free the hinge pin
from the socket in the top of the door.
d. Remove tape, tilt the door away from the cabinet and lift it to free its bottom
socket from the hinge pin on the center hinge bracket.
e. Set the door on a non-scratching surface with the outside up.
❸
Remove Freezer Door (Bottom Door)
a. Tape the door shut with masking tape.
b. Remove the hinge pin with a 7/32" socket and
ratchet.
c. Remove tape and tilt the door away from the cabinet.
Remove and save the washer on the hinge pin.
d. Lift the door straight up to free its bottom socket
from the pin in the bottom hinge bracket.
To Reverse Hardware on Cabinet
❶
Transfer Bottom Hinge Bracket to the Left
a. Pull out grill 1" and set down on
the floor to gain access to the
hinge bracket screws.
b. Using a 3/8 Socket, remove the
hinge bracket, screws, plastic
washer and spacer shim from the
bottom right side of the cabinet.
Plastic Washer
Bottom Right
Reversing the Door Swing
Plastic
Washer
Hinge Pin
Centre Hinge
Bracket
Freezer
Door
