CX-12 PLUS DOOR INTERFACE RELAY INSTALLATION INSTRUCTIONS
FILENAME: CX-12PLUS-Diagram2c.ai
DRAWING No: DRG-CX-12PLUS-02c

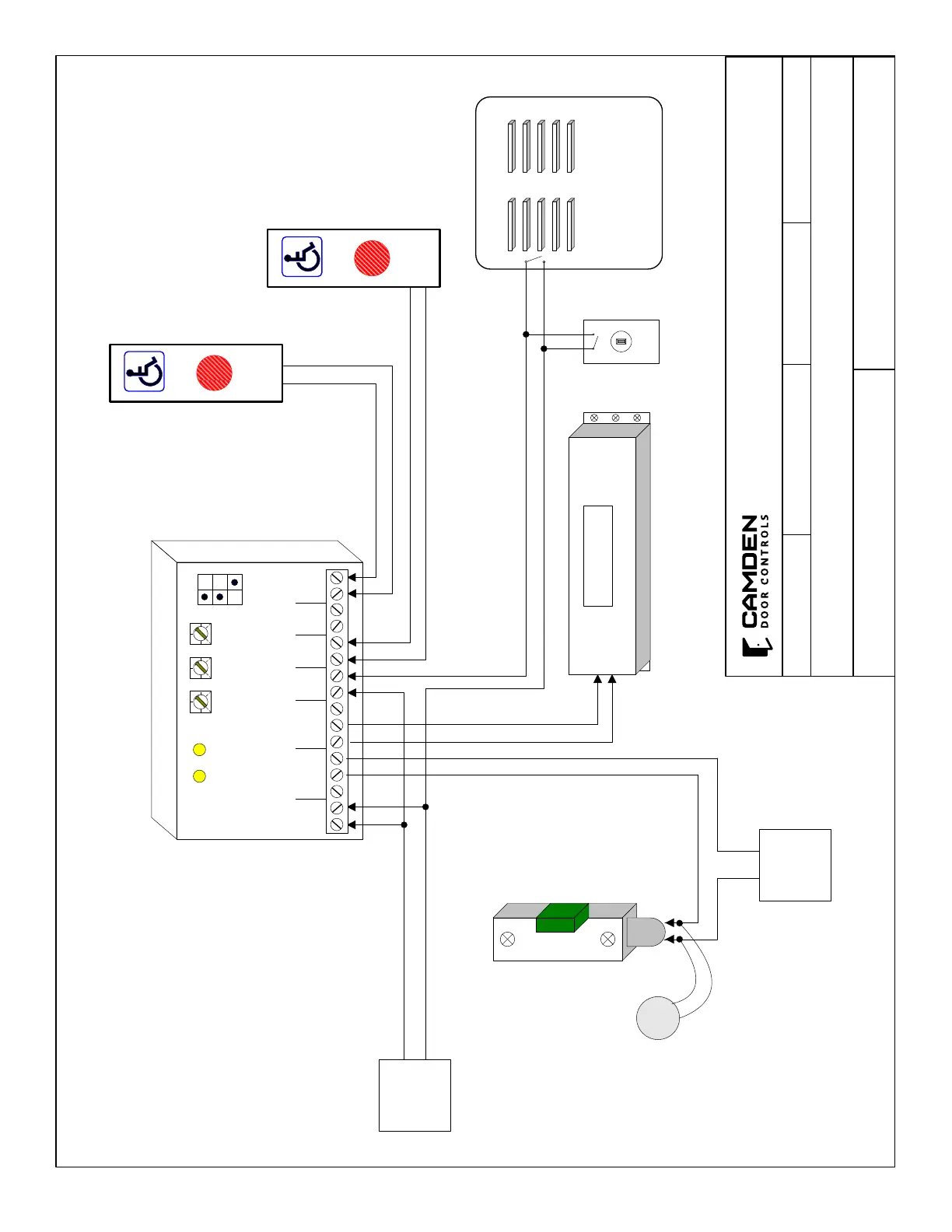

CX-12PLUS Application Diagram for Apartment (w/ Vestibule Keyswitch)
SCALE: NONE
DRAWN BY: DGW REVISED: 1/28/2020DATE: 11/16/09
5502 Timberlea Blvd.
Mississauga, Ontario
L4W 2T7
Electric Strike (If Mag lock used, wire to Terminals 4 & 5)
Interior Switch (Unlocks and opens door)
Optional Vestibule Mounted Convenience Switch (Only active when Lock Relay energized. Switch opens door)
Wire MOV
(supplied)
directly to strike
or magnet
Power
for Strike
DRY2WET2DRY1WET1POWER
NO
NO
NC
NC
COM
COM
Relay2Relay1
CX-12 PLUS
CAMDEN DOOR CONTROLS
Door Operator
1 52 3 4 6 7 8 9 10 11 12 13 14 15 16
RL1 RL2
DOR
RL1
DOO
RL2
DOR
RL2
Note: Use this diagram in case the Interphone outputs a dry contact instead of a powered signal
Vestibule Keyswitch
(Optional)
MOV
+
-
OFF / ON
1 2
3
12/24 V
AC/DC
Power
Apartment
Interphone Panel
(DRY contact
Unlocks door only)
