INTRODUCTION
COMPACT HAZER
CLPHANTOMH2
CONTROL FUNCTIONS
2-channel DMX control
Cable remote
PROPERTIES
Compact haze machine for water-based haze fluid. DMX control. Cable remote included.
Operating voltage 230 V AC/50–60 Hz. 620 W power consumption.

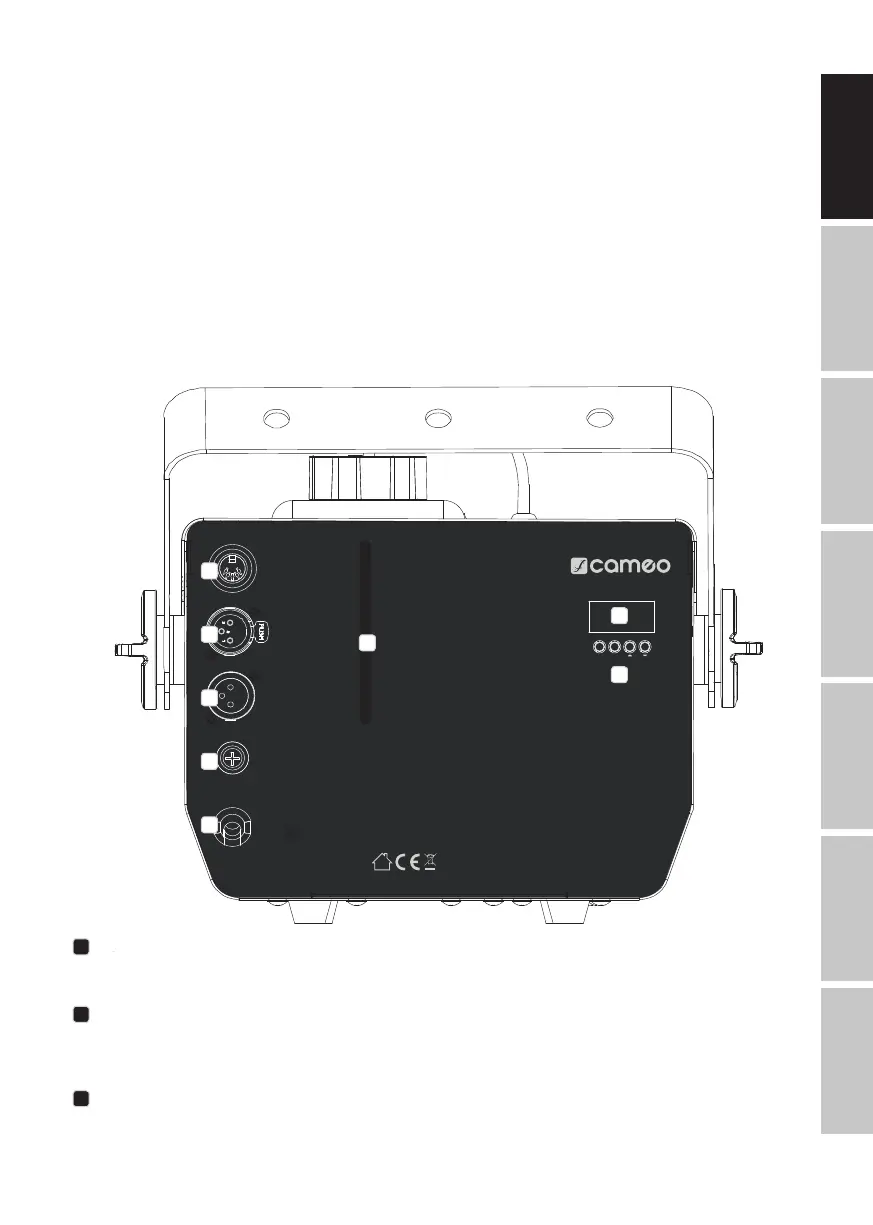

CONNECTIONS, CONTROL, AND DISPLAY ELEMENTS
1
POWER IN
Permanently connected power cable with CEE 7/7 power plug.
2
FUSE
Fuse holder for 5 x 20 mm micro fuses. IMPORTANT NOTE: Replace the fuse only with a fuse of the same type and values (see inscription on
housing). If a fuse trips repeatedly, please contact an authorized service center.
3
REMOTE
Female 5-pin DIN jack for connection of the cable remote (included).
