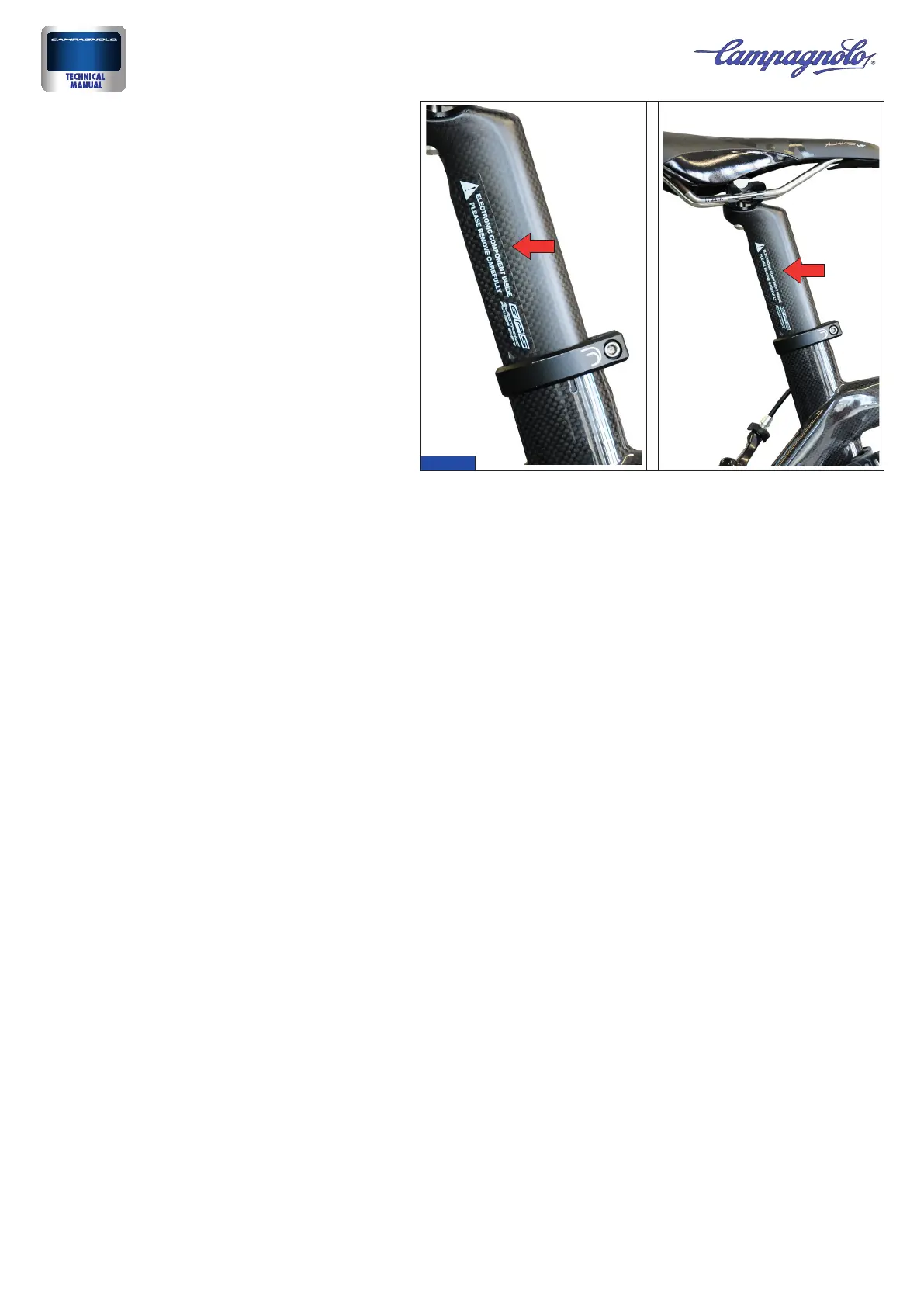

14) Apply the warning label (Fig. 23) on the seat sup-
port pipe to reduce the risk of damage in the event
of disassembly of the seat support pipe (there are 2
labels provided in the package with different colour
text designed for white and black/carbon seat sup-
port pipes).
Continue installation by routing the cables for the rear
derailleur, the front derailleur and the interface, fol-
lowing the instructions given in the chapter “Assem-
bly: cable routing” chapter, available from our websi-
te: www.campagnolo.com.
To determine where to place the Campagnolo sticker
that comes with the power unit and which will indica-
te where to place the magnetic EPS shut-off strip, we
recommend knowing the definitive seat height of the
end customer.
Once established, place the magnetic strip on the co-
lumn tube, approximately near the upper end of the
power unit, up to which the system will be switched
off. Place the rectangular part of the sticker in corre-
spondence with this position.
