1 IMPORTANT. Read these instructions for use carefully.
2 Check for gas leaks with soapy water
3 Gas appliances must only be used in well ventilated areas
1 IMPORTANT. Read these instructions for use carefully.
2 Check for gas leaks with soapy water
3 Gas appliances must only be used in well ventilated areas

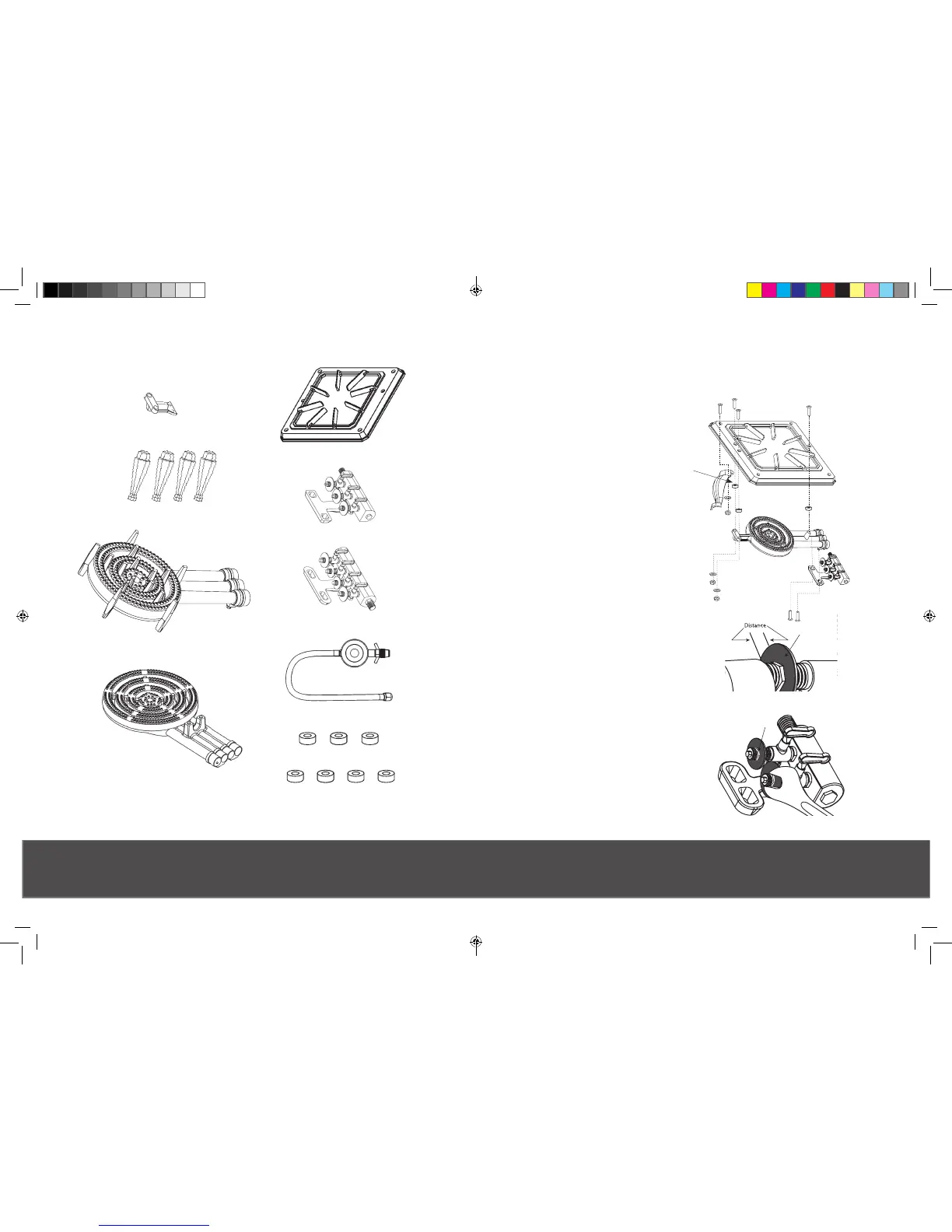

PARTS
LEGS
TRIPLE BURNER
QUAD BURNER
BRACKET FOR QUAD BURNER ONLY
HOSE & REGULATOR
TRIPLE RING BURNER SPACERS
QUAD RING BURNER SPACERS
QUAD RING BURNER MANIFOLD
TRIPLE RING BURNER MANIFOLD
STOVE BASE
ASSEMBLY
TRIPLE AND QUAD BURNERS
1. Attach the four legs to the stove base (use
supplied screws, flat washers and nuts).
2. Attach the burner to the stove base (using
supplied screws, spacers, flat washer and
nuts). Once the burner is sitting straight in
the frame, tighten in place.
Spacers must be installed between the
stove base, and the burner / burner
bracket.
3. Attach the gas manifold to the burner
using the 2 bolts.
NOTE: Assembly steps 4-6 only apply to
models without fixed aeration discs
4. Check the distance between the aeration
discs and the front of the burner.
5. If the settings differ to those stated in the
technical information section of this manual,
adjust the aeration discs to the correct
settings. Then remove the manifold and
tighten the nuts (where supplied) against the
front of the discs to lock the settings.
* Due to regulatory requirements, a small cluster of 14 ports on the Quad ring burner have not been
drilled. This is not a fault and it will not effect cooking performance.
