CAMSO UTV 4S1 - Rear Anchor Bracket Parts; Assembly Diagram and Component List

Page 4
©2020 Camso inc.

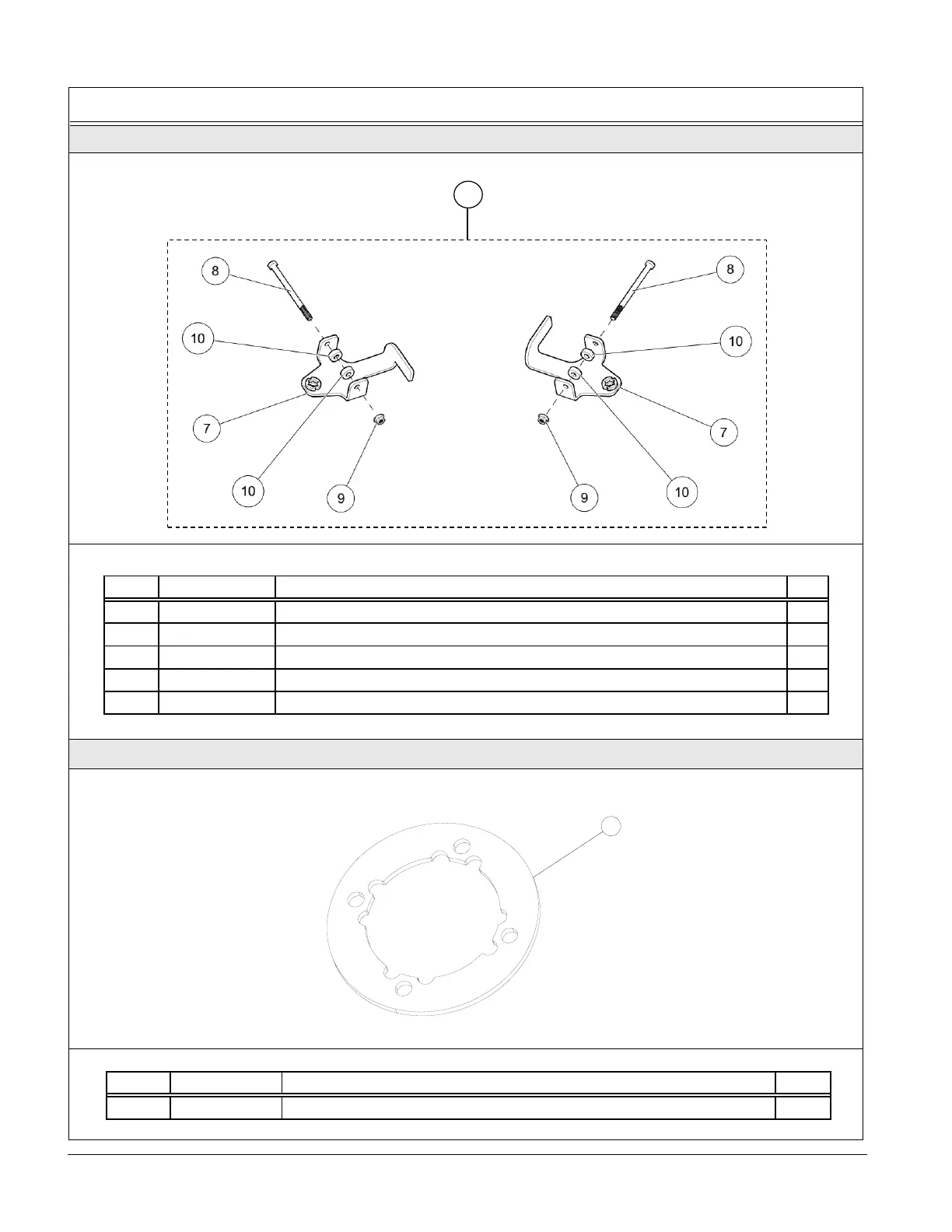

REAR ANCHOR BRACKET PARTS LIST / LISTE DE PIÈCES - ANCRAGE ARRIÈRE
Figure 2
WHEEL SPACER / ESPACEUR DE ROUE
Figure 3
Installation Guidelines / Directives d’installation
6
ITEM P/N DESCRIPTION QTY
6 1005-08-0990 REAR BRACKET KIT / ENSEMBLE ANCRAGE ARRIÈRE 1
7 -- ANTI-ROTATION REAR BRACKET / ANCRAGE ANTIROT. ARRIÈRE 2
8 1033-10-0150 HEX BOLT / BOULON HEX - HCS, M10-1.5X150, 8.8, ZP, DIN931 2
9 1074-10-0001 NYLON NUT / ÉCROU NYLON - FNN, M10-1.5, 8, ZP, DIN6926 2
10 4001-08-0115 SHIM / CALE 4

ITEM P/N DESCRIPTION QTY
11 1008-00-0118 FLAT SPACER / ESPACEUR 4
