! A furniture plinth may be run
across the front of the dryer,
but its height will be dictated by
the front kickplate.
Plinth must have ventilation
slots (min. Side/diameter 127
mm hole) according to the
dimensions on fixing template.
If the plinth is not high enough
to accommodate the whole
hole, cut only part of it.

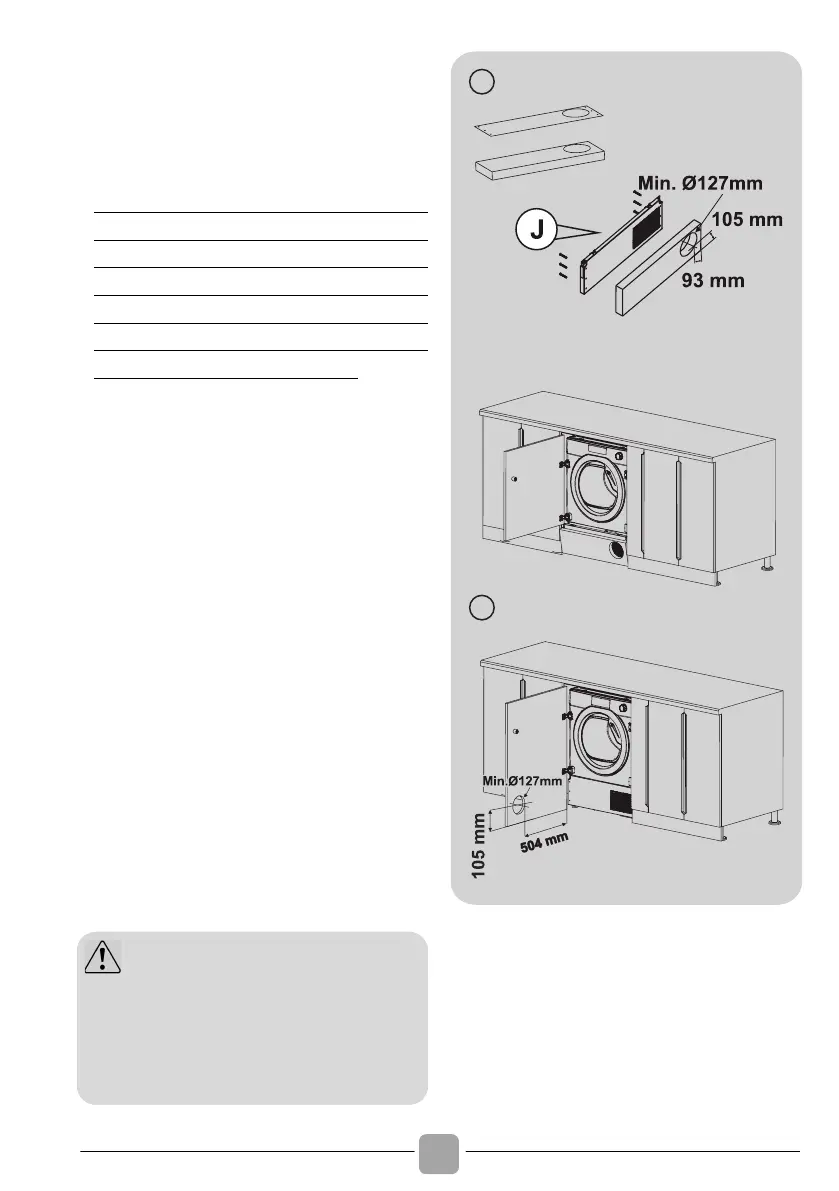

! Place the template onto the
reverse of plinth. Mark the
screw hole positions, then drill
out these positions (figure 11).
! Fix the plinth to the kickplate
using 6 screws provided (J).
Note: it’s possible only some
types of kickplate (eg. wood or
plastic). We suggest to check
with the kitchen supplier.
! Fix the kickplate to the dryer.
! In case of using full door, door
must have min. Ø 127 mm hole
across the slots of kickplate
(figure 12).
To Next Page
