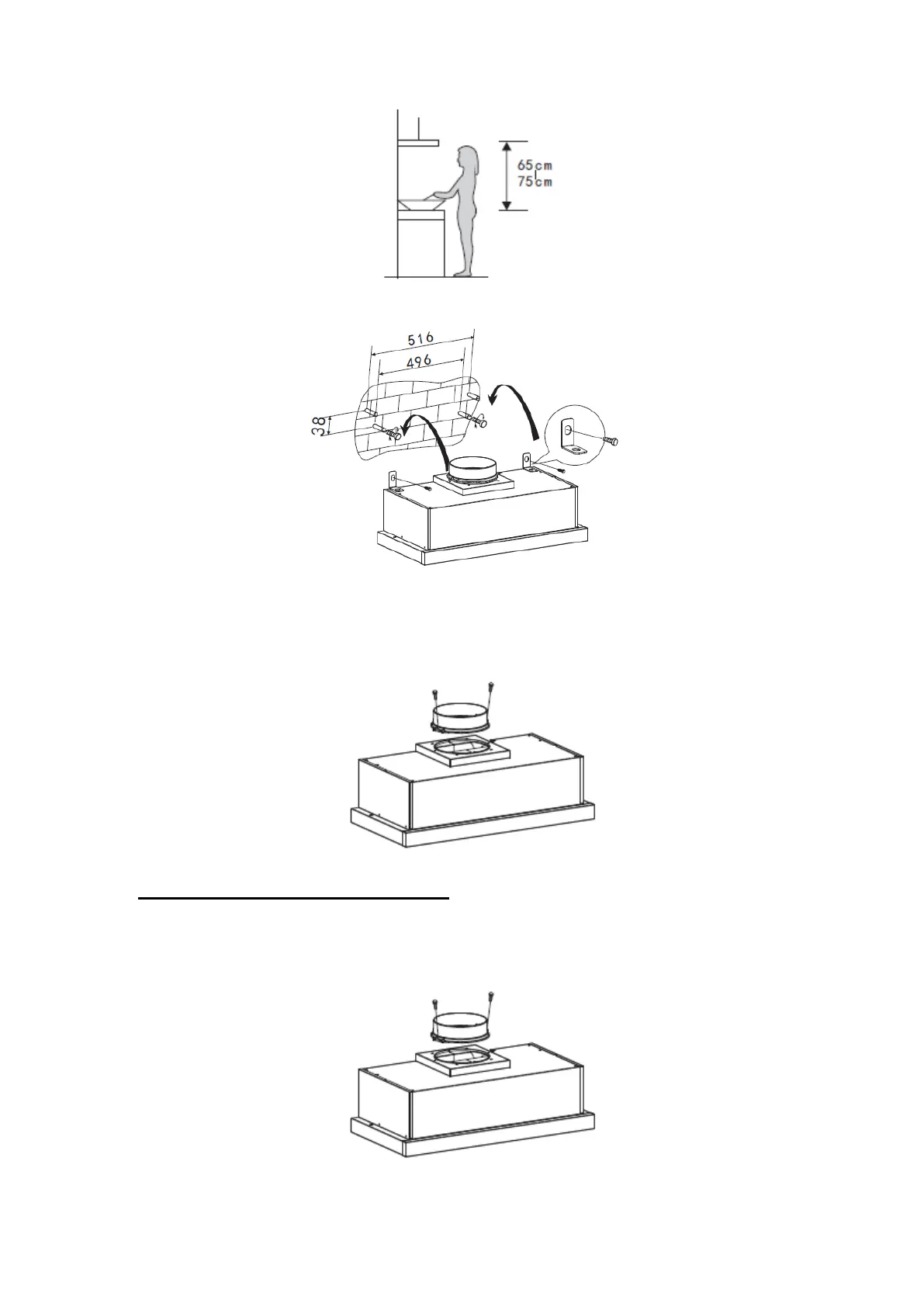

3. To install onto the wall, drill 4 holes of Ø 8mm on a suitable place according with the
centre distance of hole in the back of the cooker hood. See Pic below.
4. Insert the nut into the holes.
5. Insert the screws into the nuts and tight.
6. Hang the cooker hood onto the fixed screws.
7. Attach the one way valve onto the cooker hood. Lay the expansion pipe on the
valve. Lift up the expansion pipe till it out of the wall through the hole on the wall.
B. INSTALLATION (Cabinet Mounting)
1. Drill 6 holes of Ø 4mm at the bottom of the hanging cupboard.
2. Put the one way valve on the air outlet of cooker hood, then install the cooker hood
on the bottom of the cupboard, tighten the cooker hood with enclosed M4 screws
and flat washers.
