3. Install the adjusted board on the bottom of the hood in order to keep out the gap
between hood back and cupboard.
4. Lay the expansion pipe on the valve. Lift up the expansion pipe till it out of the wall
through the hole on the wall.
Electrical Installation
All installation must be carried out by a competent person or qualified electrician.
Before connecting the mains supply ensure that the mains voltage corresponds to the
voltage on the rating plate.
Direct Connection
The appliance must be connected directly to the mains using an omnipolar circuit
breaker with a
minimum opening of 3mm between the contacts.

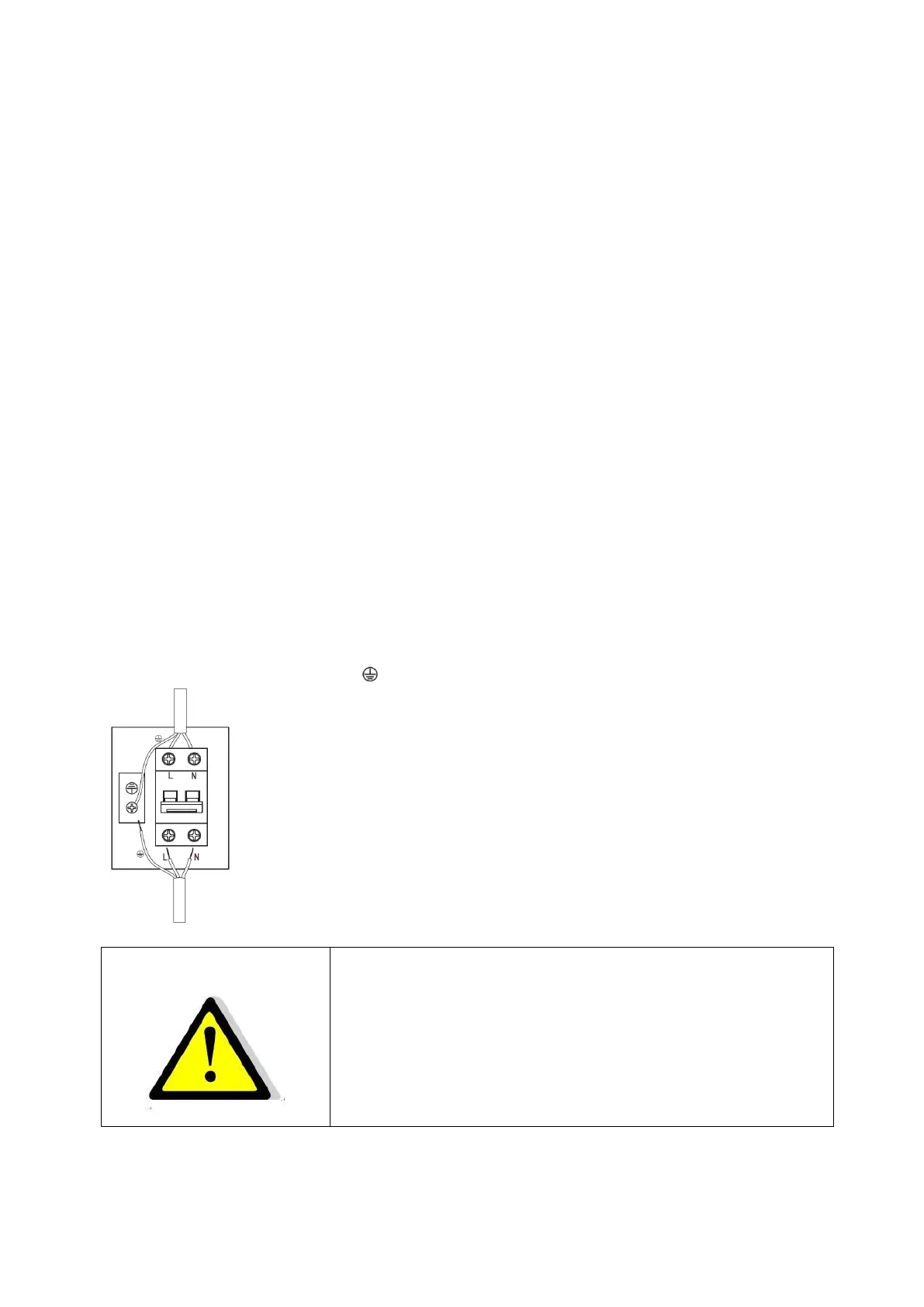

The installer must ensure that the correct electrical connection has been made and
that it complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is
damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.
WARNING: This is a Class I appliance and MUST be earthed
This appliance is supplied with a 3 core mains cable coloured as follows:
Brown = L or Live
Blue = N or Neutral
Green and Yellow = E or Earth
➢ For safety reason, please use only the same
size of fixing or mounting screws which are
recommended in this instruction manual.
➢ Failure to install the screws or fixing device in
accordance with these instructions may result
in electrical hazards.
