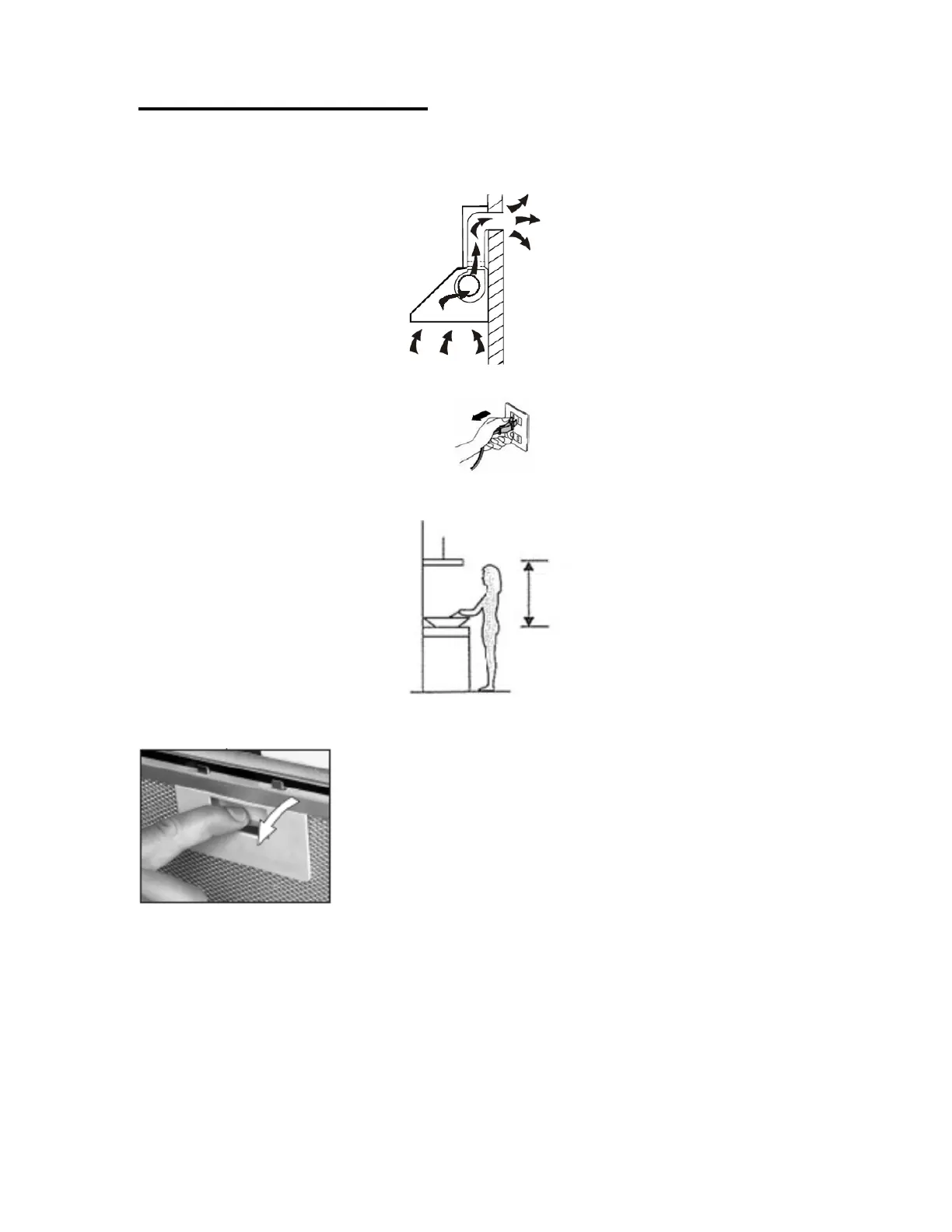

INSTALLATION (VENT OUTSIDE)
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or
inflammable material with an interior diameter of 150mm).
Before installation, turn the unit off and unplug it from the outlet.
The cooker hood should be placed at a distance of 70~80cm above the
cooking plane for best effect.
1. Remove the metal grease filters.
2. Position the hood against the wall that you are intending to install it on
and mark the position of the support holes that are to be drilled (as
shown in the figure below).
2a. The support screw holes are indicated by figure A in this drawing and
the anchoring screw holes are indicated by figure B.
