8
9
lower edge on the base with a pencil; cut
out the interfering part.
FOR MODELS FITTED WITH CANTILEVERED
HINGES the rotation requires only a 3
mm space therefore normally no cut out
is required as shown in fig. 9a.

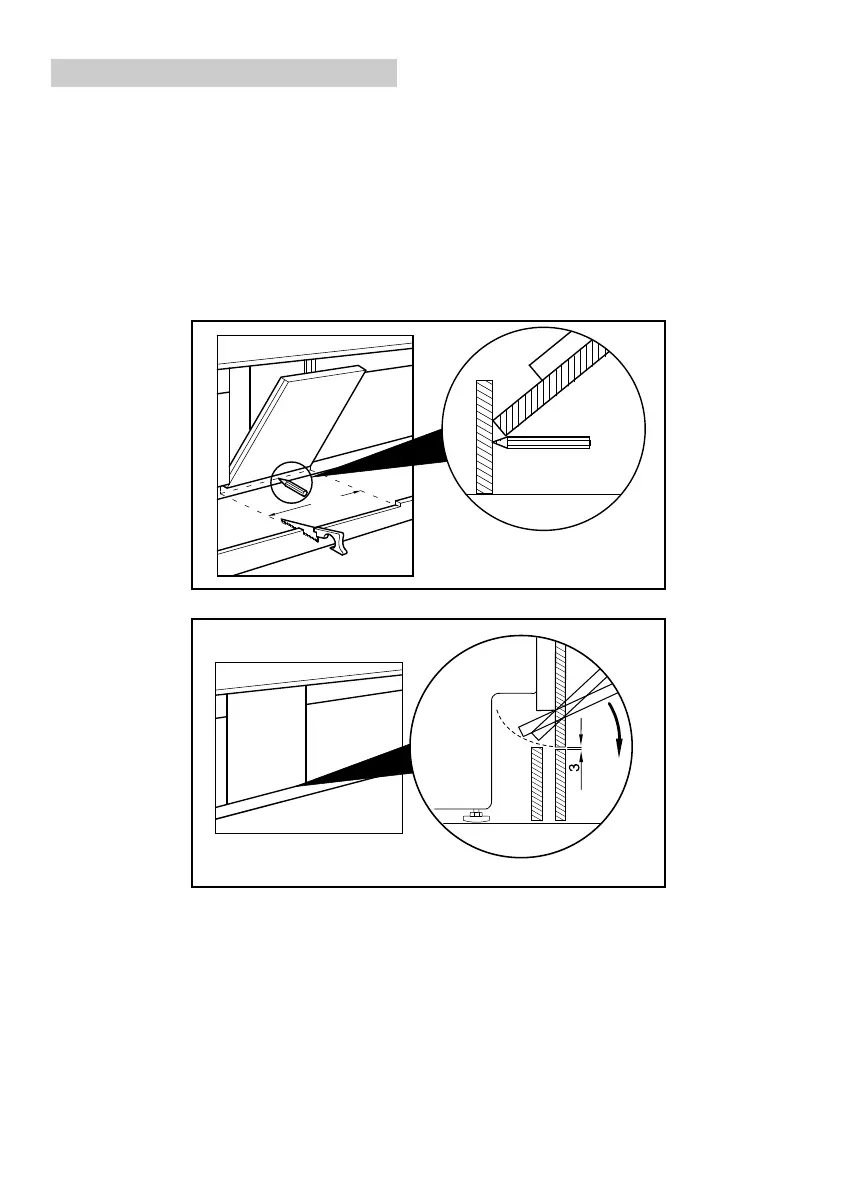

Adaptation of the base
Sometime, in order to allow the door
rotation, a space must be cut out in the
base as indicated in the figure 9.
Proceed as follows:
■ Open slightly the dishwasher door, let
the covering touch the base and mark its
9a
