8. Put the expansion pipe on the outlet, then lead it to outdoor, or use the outlet cover
to seal the outer outlet and open the inner exhaust valve.Note:the expansion pipe is
not supplied.
Method B:

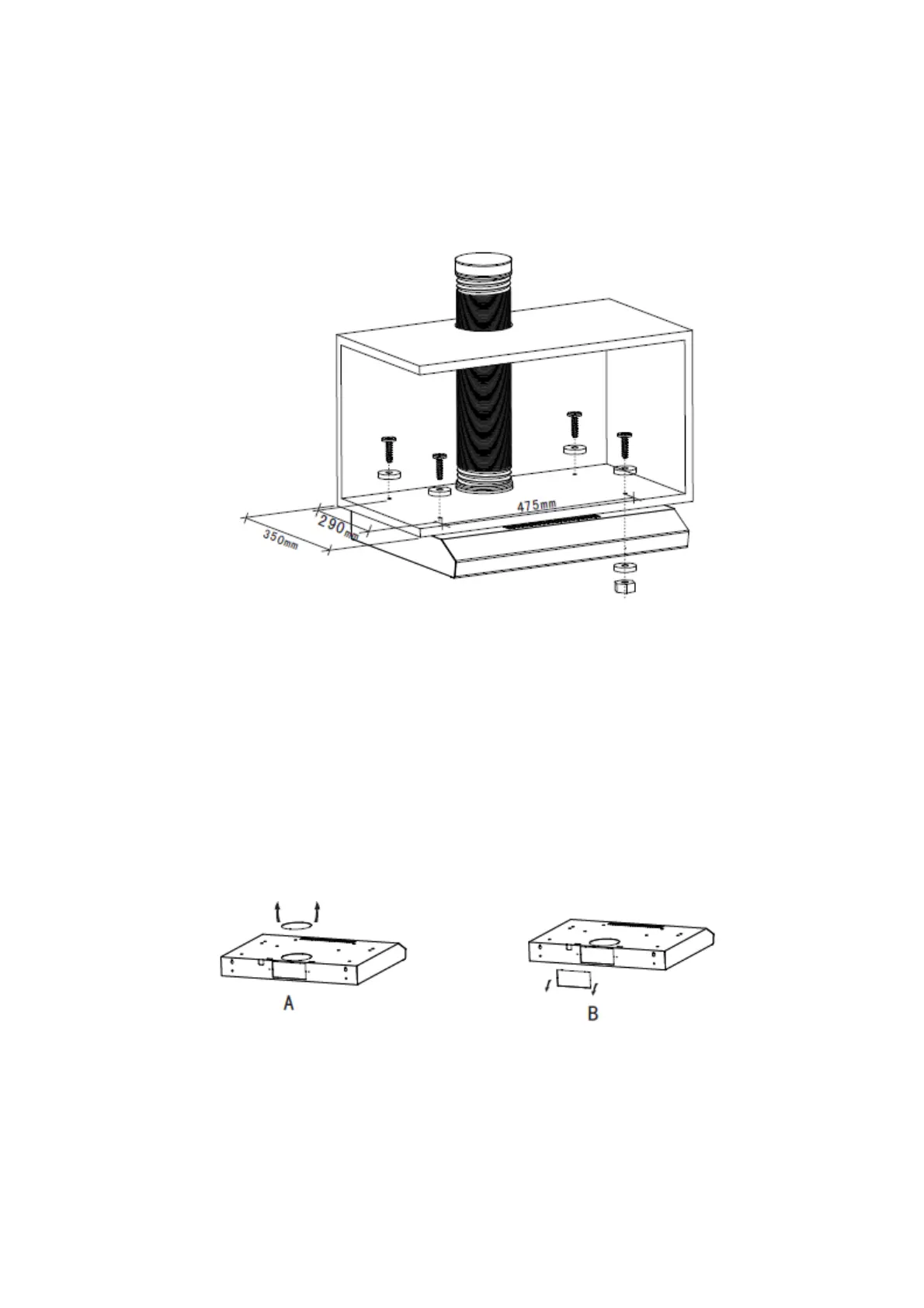

1. Drill 4 holes of Ø 6mm at the bottom of the hanging cupboard. See pic below.
2. Install the cooker hood on the bottom of the cupboard, tighten the cooker hood with
enclosed M4 screws + flat washers.
3. Put the expansion pipe on the outlet, then lead it to outdoor. Note: the expansion
pipe is not supplied.
Noice: There are 2 methods for ventilation, including ' horizontal ventilation' and '
vertical ventilation. Please pay attention to the ventilation method when installation.
Horizontal ventilation: See pic A, please use the tool to knock out the outlet cover on
the top, then the air can be vented from top.
Vertical ventilation: See pic B, please use the tool to knock out the outlet cover on the
back, then the air can be vented from back.
