Noice: There are 2 methods for ventilation, including ' horizontal ventilation'
and ' vertical ventilation'. Please pay attention to the ventilation method when
installation.

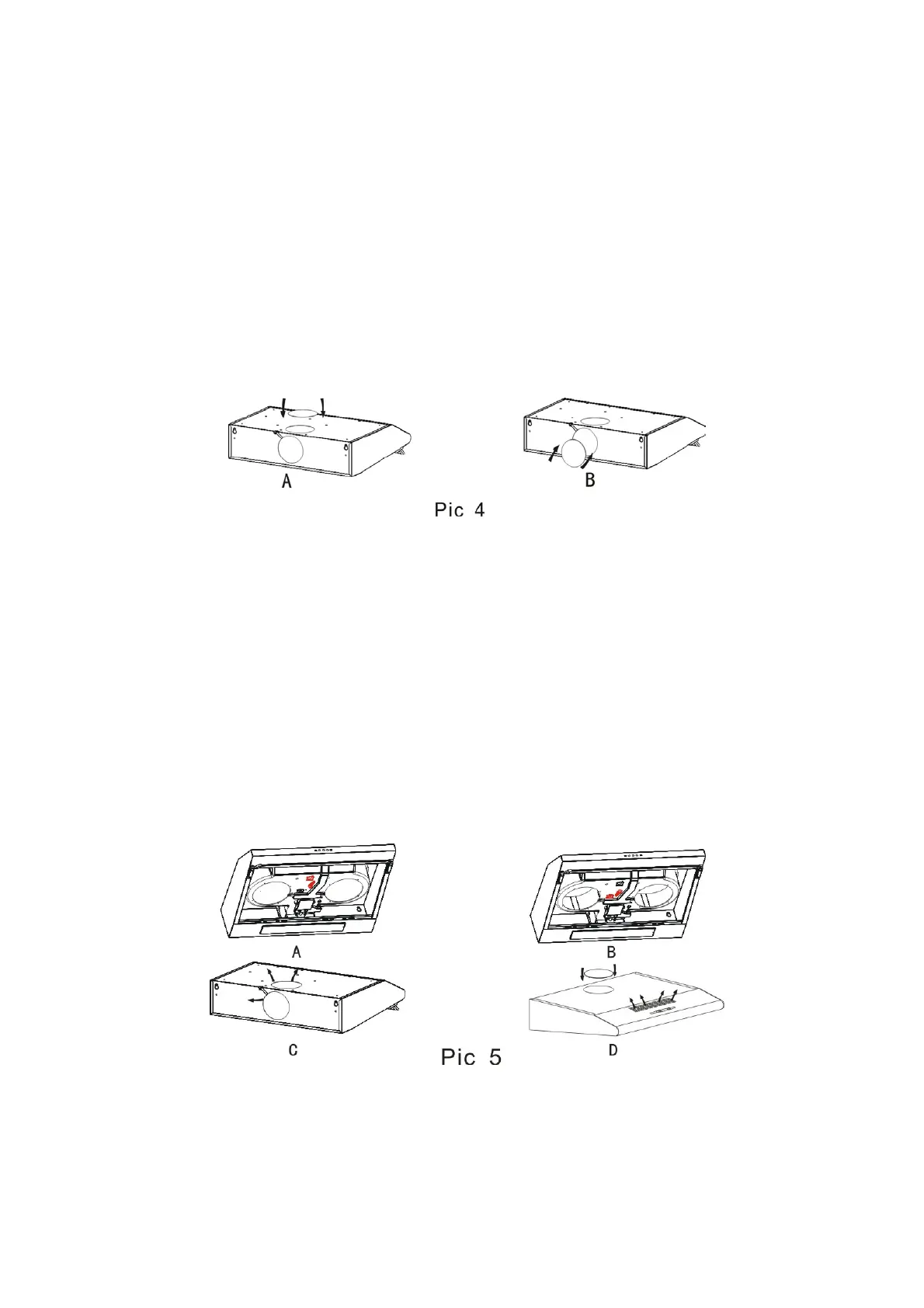

Horizontal ventilation: See Pic 4A, please use the cover to seal the outlet on the
top, then the air can be vented from back.
Vertical ventilation: See Pic 4B, please use the cover to seal the outlet on the
back, then the air can be vented from top.
Air ventilation setting
Outdoor air ventilation: Turn the adjuster to outdoor position(pic.5A), install the
outlet, turn on the cooker hood, then the air will be vented from the outside
outlet.
Indoor air ventilation: Turn the adjuster to indoor position (pic.5B), install the
outlet cover, turn on the cooker hood, then the air can be vented from the
inside outlet.
