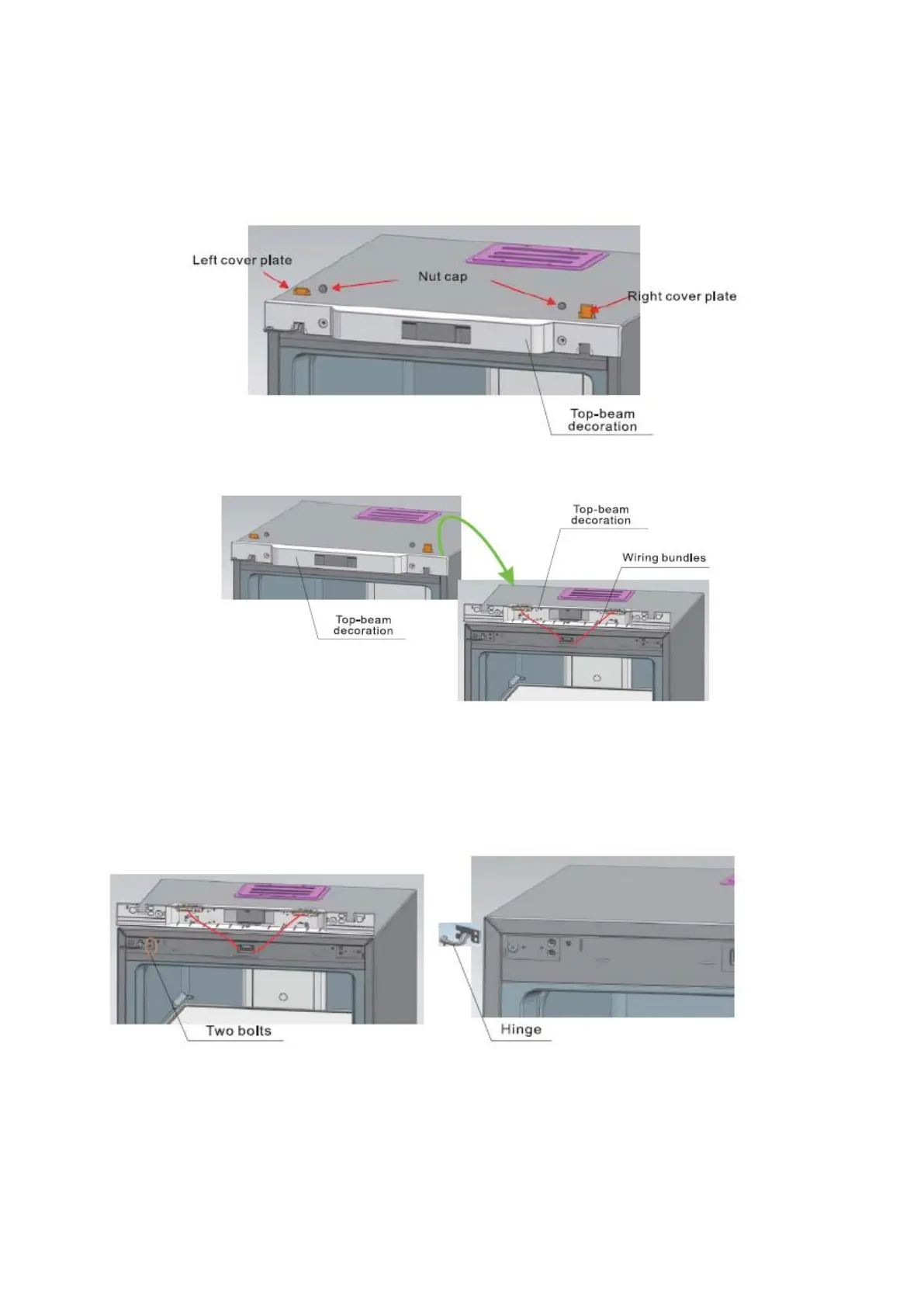

Door Right-Left Change
1._
Remove the two nut caps and two hinge cover plates from the
top beam реn the door toward right)
2._
Remove decorating components from the top beam
З._
Remove the two bolts fixed with hinges, pull the hinges out from оnе
side and dismantle the door at the same time. As last, take the hinges
out from the door.
