Candy CMCA29EDLB - Setting up Your Oven

10
SETTING UP YOUR OVEN

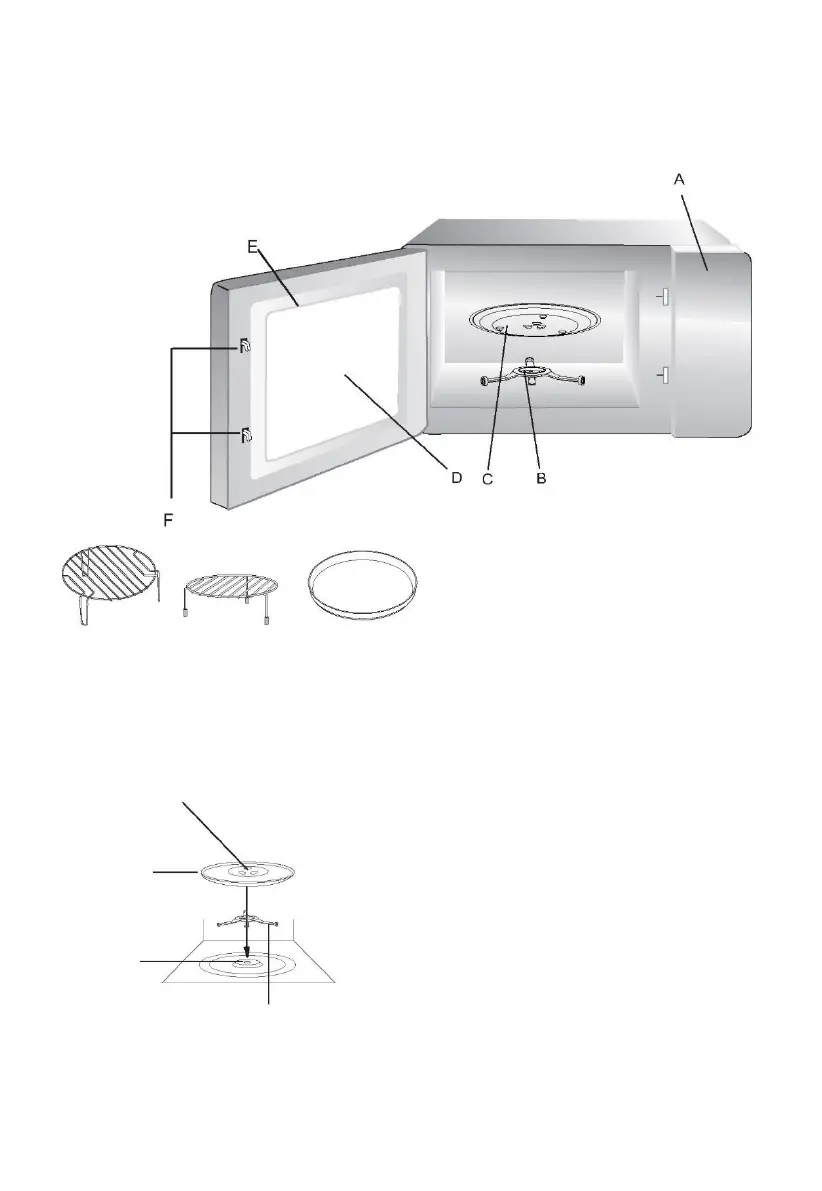

Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Turntable Installation
a. Never place the glass tray upside down. The
glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Grill Rack (Can not be used in
microwave function and must
be placed on the glass tray)
Bake Tray (Only be used
in crisp function and can
be placed on the rack)
A) Control panel
B) Turntable ring assembly
C) Glass tray
D) Observation window
E) Door assembly
F) Safety interlock system
Glass tray
1
Turntable ring assembly
1
Instruction Manual
1
Glass tray
Turntable
shaft
Turntable ring assembly
Hub (underside)
