Installation into the cabinet

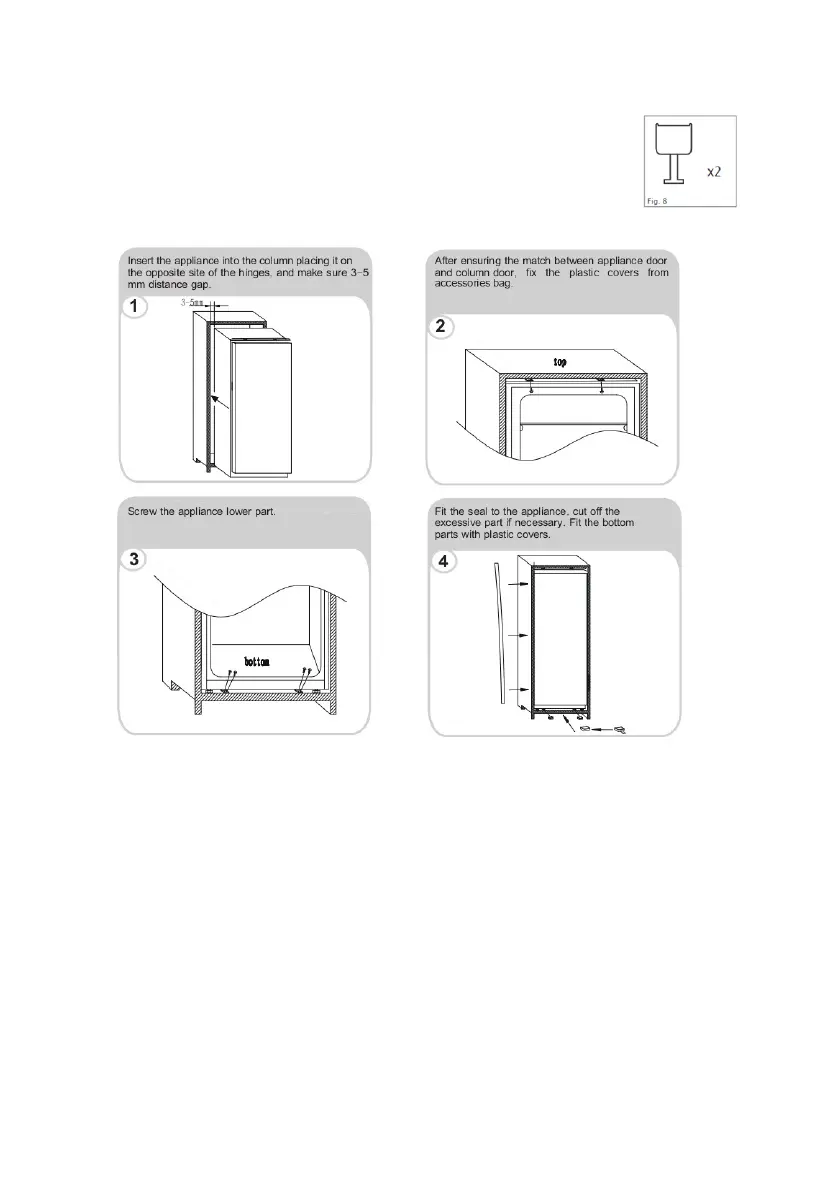

With the help of another individual, or two, move the appliance into the
cabinet. There are two metal plates at the base of the appliance. Fit the
supplied white spacers (Fig. 8) to these plates, as per Fig. 9.
Ensure
that the lips of the spacers are level with the lip of the cabinet base.
Mou
nting the fascia door
• Ensure that there is a gap of 3 to 4mm between the non- hinged side and the cabinet wall.
• Locate the slider in the bracket and fix the slider to the fascia door 20 to 22mm from the
edge of the fascia as shown in figure 11, ensuring that the slider is positioned centrally and
horizontally within the bracket. Tighten securely by hand.
• Fill the gap on the non-hinged side with the gasket/seal strip provided, as shown in Fig. 12.
• The finished look for the door sliders should be similar to those shown in Fig. 14, which
shows 2 sliders in place.
• Ensure the appliance door opens, closes and seals properly.
