3. Using a drill bit with an 8 mm diameter, make 8 holes in the wall at the position that

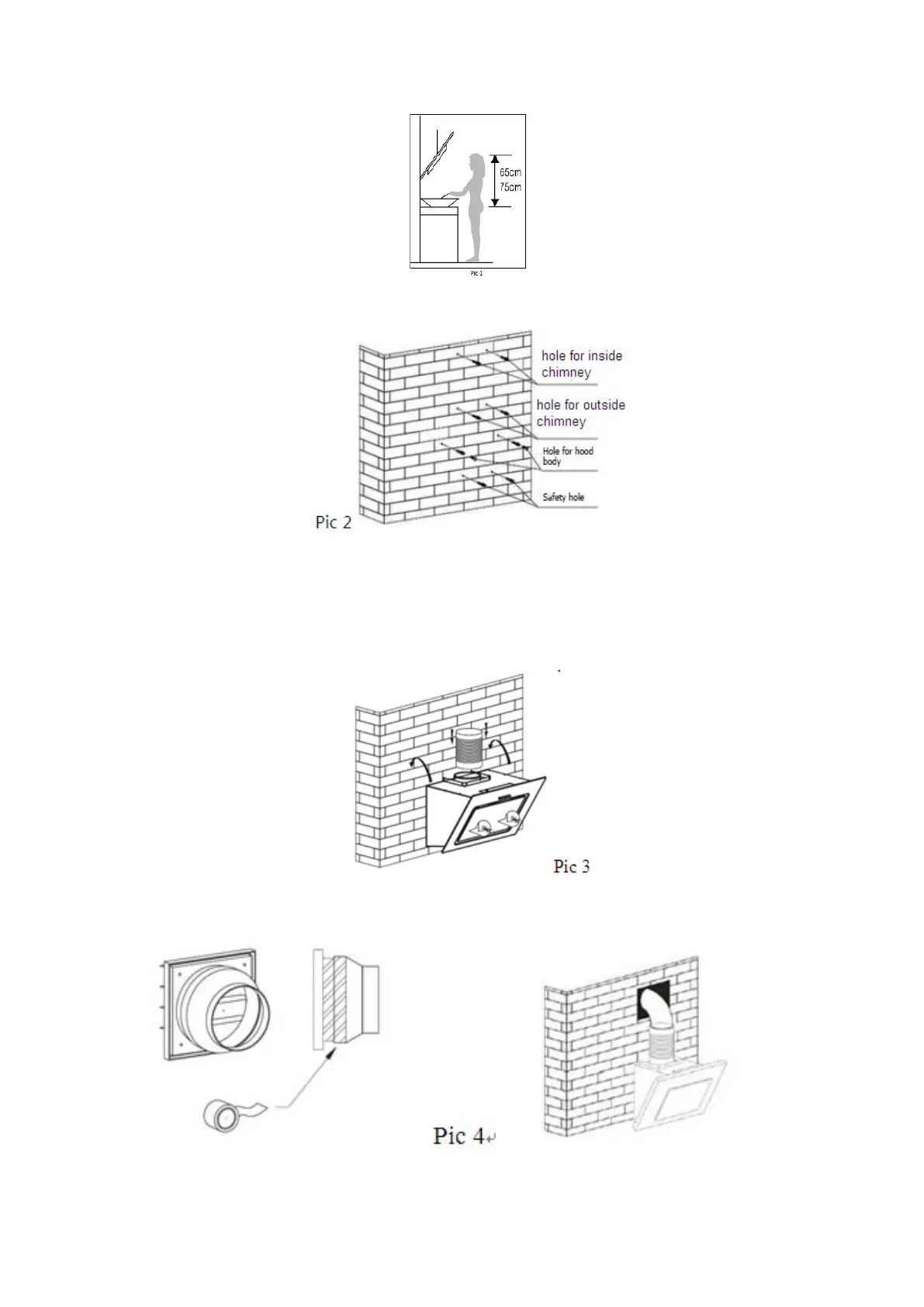

you reserve for installing the chimney and cooker hood body. See Pic 2.
4. Insert wall plugs into the holes that you have drilled for the cooker hood body, fasten
2 × support screw ST4*40 mm halfway in, leaving them 2 mm out of the wall. See Pic
2.
5. Hang the cooker hood onto the support screws.See pic 3.
6. Insert self-tap screw ST4*30 mm into the safety holes and fully fasten it to ensure
the cooker hood is well fixed. See pic 3.
7. Equip the converter to the one-way-valve, and fix by tape(Pic below).Install the
120mm expansion pipe to the outlet converter and fixed by cable tie. Lift up expansion
pipe till it out of the wall through the hole on the wall.
8. Install the inside chimney bracket:Use ST4*40 screws to install the inside chimney
bracket onto the wall.See Pic 5.
