Installation of T-shaped plastic outlet

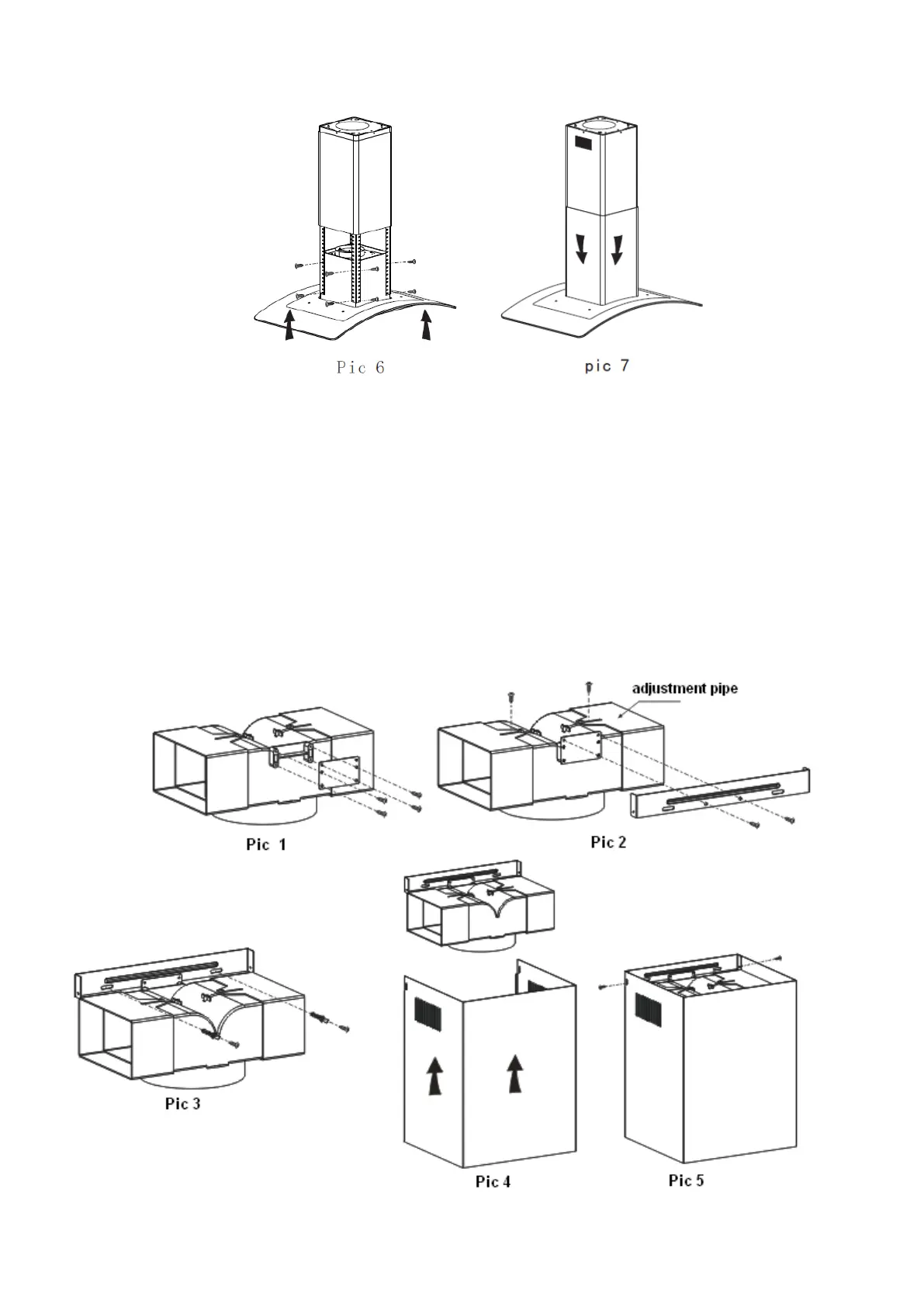

1. As shown in pic 1,install the mounting bracket on the T-shaped plastic outlet with
4pcs ST3*12mm screws.Then place the adjusted pipe to both sides of the outlet.
Adjust to the required distance of adjustment pipe,make sure the left and right
sides are symmetrical,and fix it well with 2 pcs ST3*12mm screws.
2. See pic 2,2 pcs ST4*8mm screws will be used to fix the T-shaped plastic outlet to
the inside chimney bracket.
3. See pic 3,fix the inside chimney bracket and T-shaped plastic outlet on the wall
with ST4*30mm screws and wall plugs.
4. See pic 4 & pic 5,use 2 pcs ST4*8mm screws to fix the inside chimney to the inside
chimney bracket.
