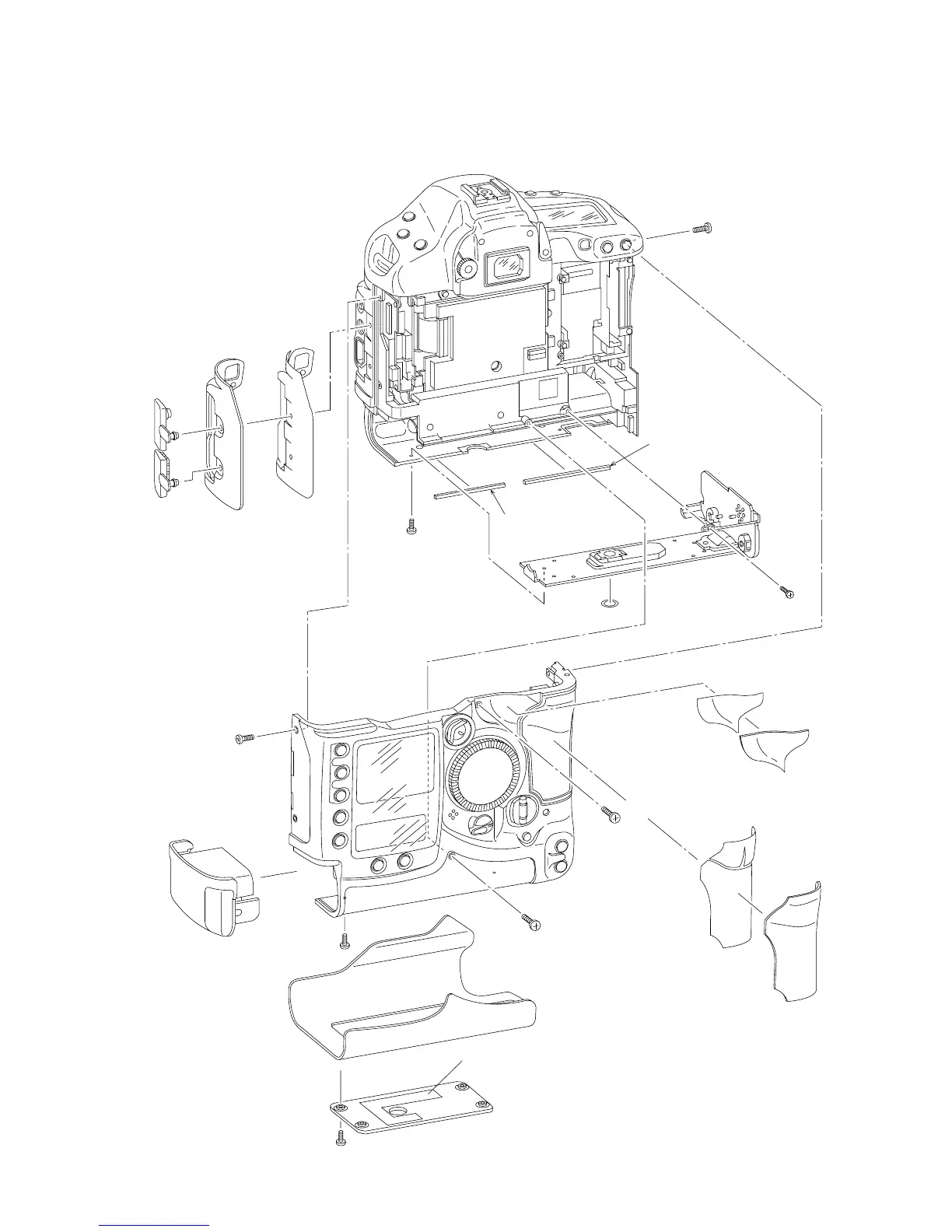

Canon EOS-1D - Camera Body Exploded View

CANON DIGITAL CAMERA EOS-1D
REF. NO. C12-6001
1
(See Pg. 7)
(See Pg. 2)
XA1-7170-207
x2
XA1-7170-307
x4
XA1-7170-707
CB4-0038
x4
XA1-7170-457
x2
XA1-7170-707
XA1-7170-457
XA1-7170-307
CB3-0108
CB3-0203
CY3-1380
CB3-0109
CB3-0184
CB3-0146
CB3-0168
CB3-0171
CB3-0172
CB3-0167
CB3-0147
CB3-0188
(CB3-0210)
CB3-0110
CB3-0102
CB3-0123
CG2-0732
