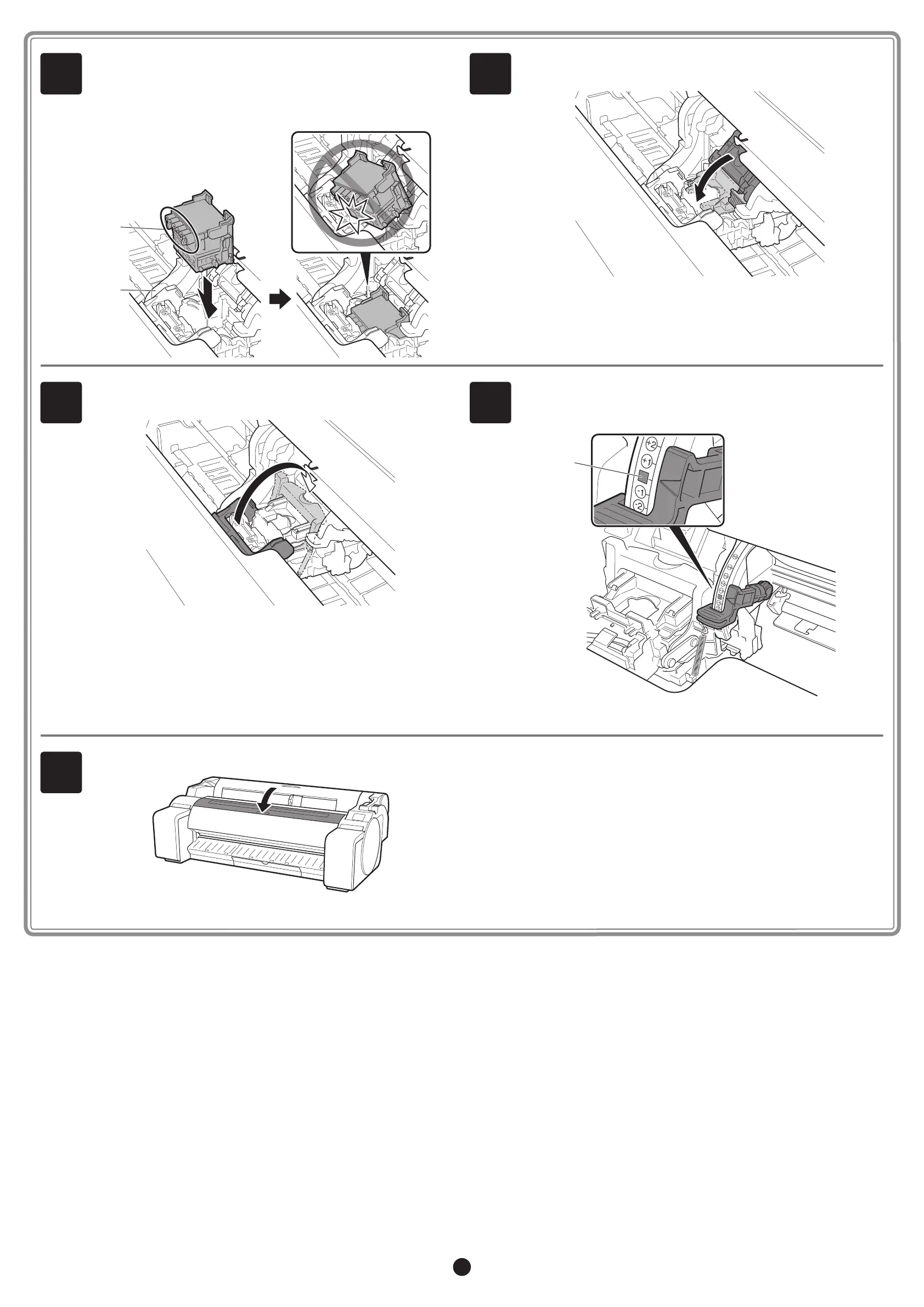

Insert the print head into the carriage (B) with the ink holes (A)
on the upper side and facing towards you as shown in the gure.
Carefully push the print head rmly into the carriage (B), ensuring
that the part covered by the protective caps does not touch the
carriage.
A
B
7
Pull the print head locking cover down toward the front to lock the
print head in place.
8
Push the print head lock lever all the way to the end.
9
Check that the angle adjustment lever is aligned with the position of
the red (A). If it is not aligned, align the angle adjustment lever with
the red (A).
A
10
Close the top cover.
