Adjusting the Printhead

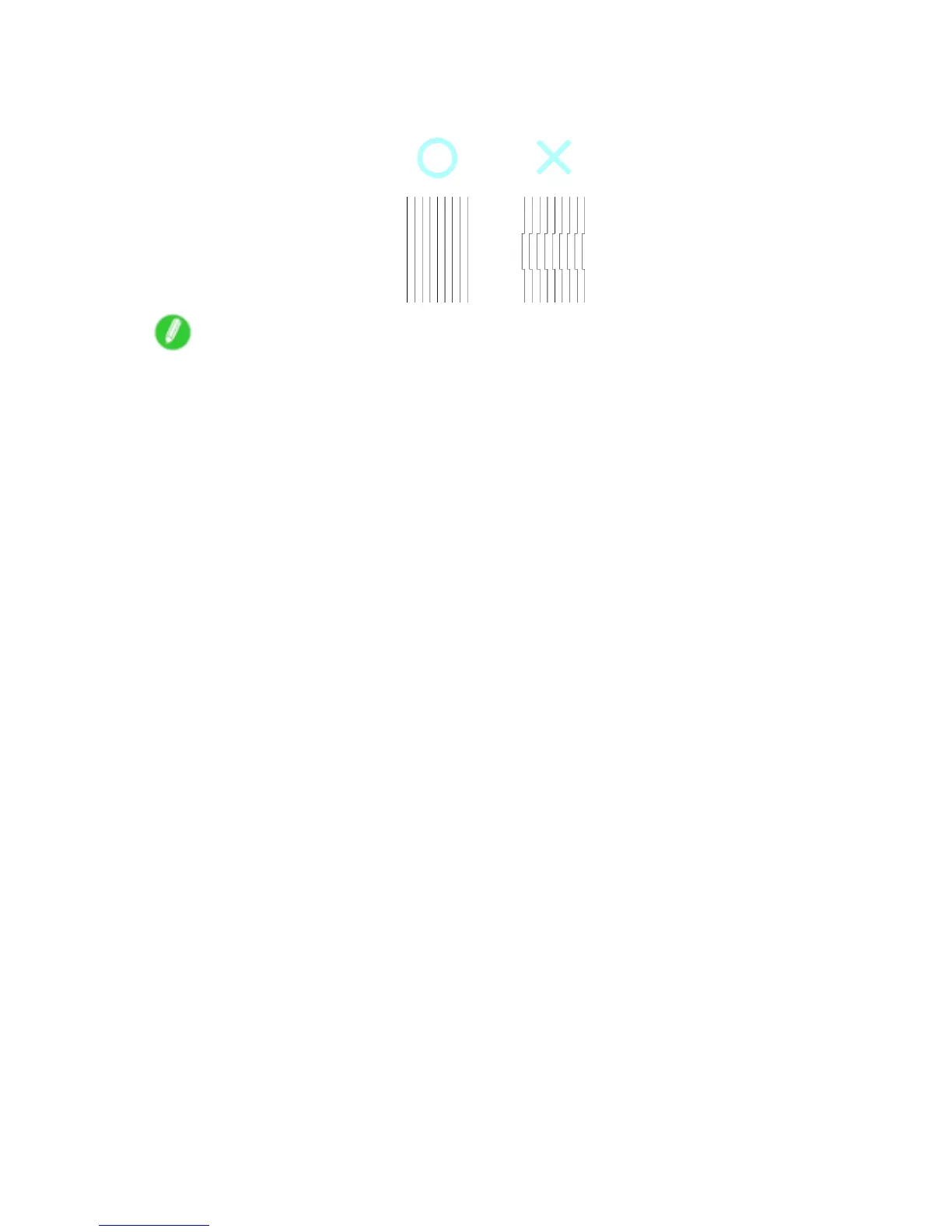

8. Examine test pattern D-1 for printhead adjustment. After you determine the pattern with straight
lines, press ▲ or ▼ to choose the pattern number , and then press the OK button.
Note
• If lines seem straightest in two patterns but you cannot decide which one is better , choose an
intermediate value. For example, choose 1 1 if you cannot decide whether pattern 10 or 12 is better .
9. Repeat steps 7 and 8 to specify the adjustment value for D-2 to D-14 , D-16 to D-20 , and D-22 to
D-24 .
10. Press ◄ .
1 1. Press ▲ or ▼ to select Register Setting , and then press the ► button.
12. Press ▲ or ▼ to select Y es , and then press the OK button.
The printer goes online.
Maintenance 649
