Canon Legria HF G25 User Manual

Connection Diagrams
117
Connection Diagrams

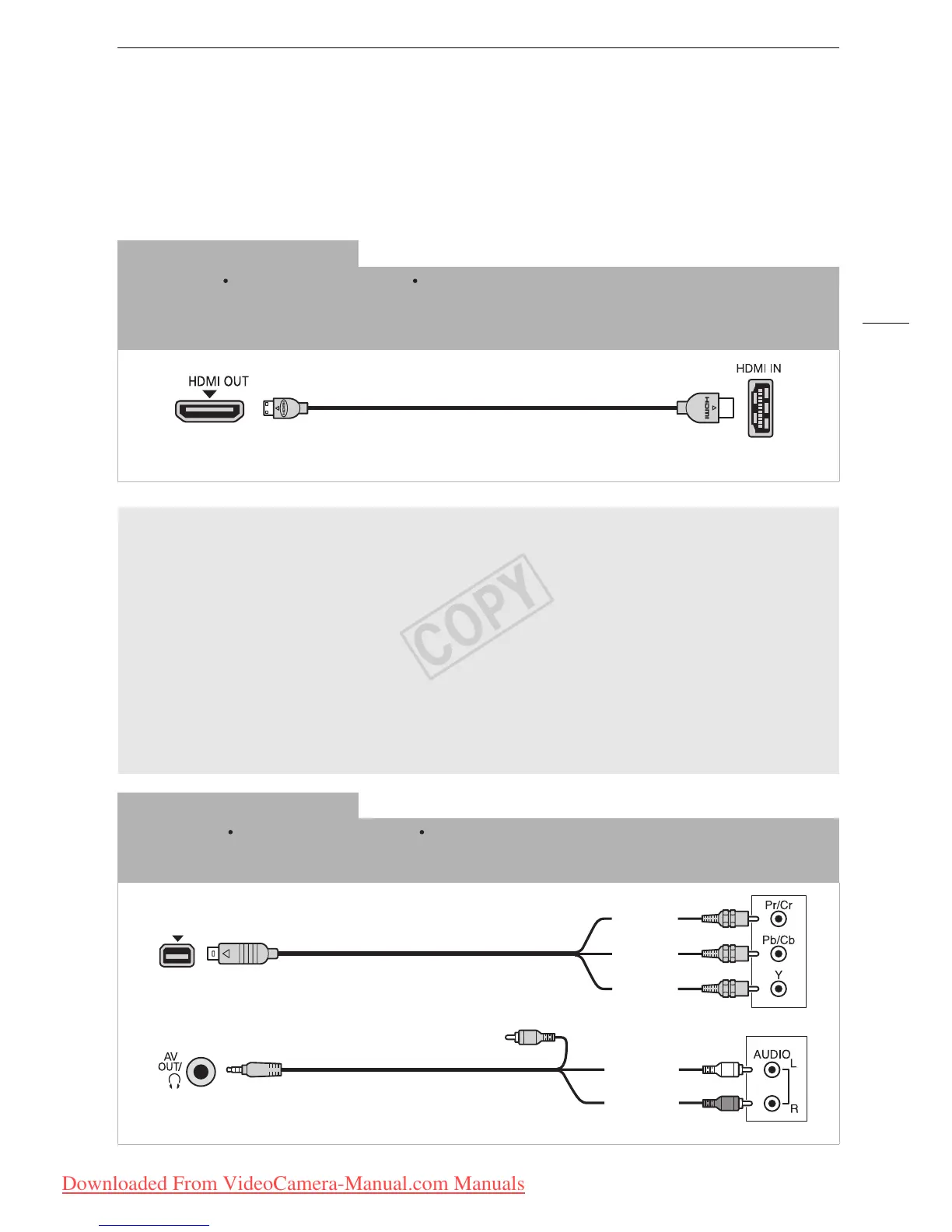

In the following connection diagrams, the left side shows the terminals on the camcorder and the right
side shows (for reference only) an example of terminals on a connected device.
Connection ! HDMI
Type: Digital Quality: High definition Output only
Connect to a high-definition TV (HDTV) with an HDMI input terminal. If your HDTV supports HDMI-CEC or 1080p input, you
can activate these functions with the q > [Control for HDMI] and [HDMI 1080p Output] settings, respectively. You
can check the standard of the current output signal with the q > [HDMI Status] setting.
Connection "
Component Video
Type: Analog Quality: High Definition Output only
Connect to a high-definition TV (HDTV) with component video input terminals. Set q > [AV/Headphones] to
[Ò AV] on the camcorder.
HTC-100/S High Speed HDMI Cable
(supplied)
HDMI mini connector HDMI connector
(standard)
About the HDMI
TM
connection
The HDMI (High-Definition Multimedia Interface) connection (!) is a convenient all-digital
connection using a single cable for both video and audio. When you connect the camcorder to an
HDTV equipped with an HDMI terminal, you can enjoy video and audio playback at the highest
quality.
- The HDMI OUT terminal on the camcorder is for output only. Do not connect it to an HDMI
output terminal on an external device, as this may damage the camcorder.
- While the camcorder is connected to an HDTV using connection !, there will be no video
output from other terminals.
- Correct operation cannot be guaranteed when connecting the camcorder to DVI monitors.
- Depending on the HDTV, correct playback of personal video content may not be possible using
connection !. Try one of the other connections.
White
CTC-100 Component Cable
(optional)
STV-250N Stereo Video Cable
(supplied)
Red
Green
Blue
Red
COPY
