ASSEMBLY
6
ASSEMBLY
7

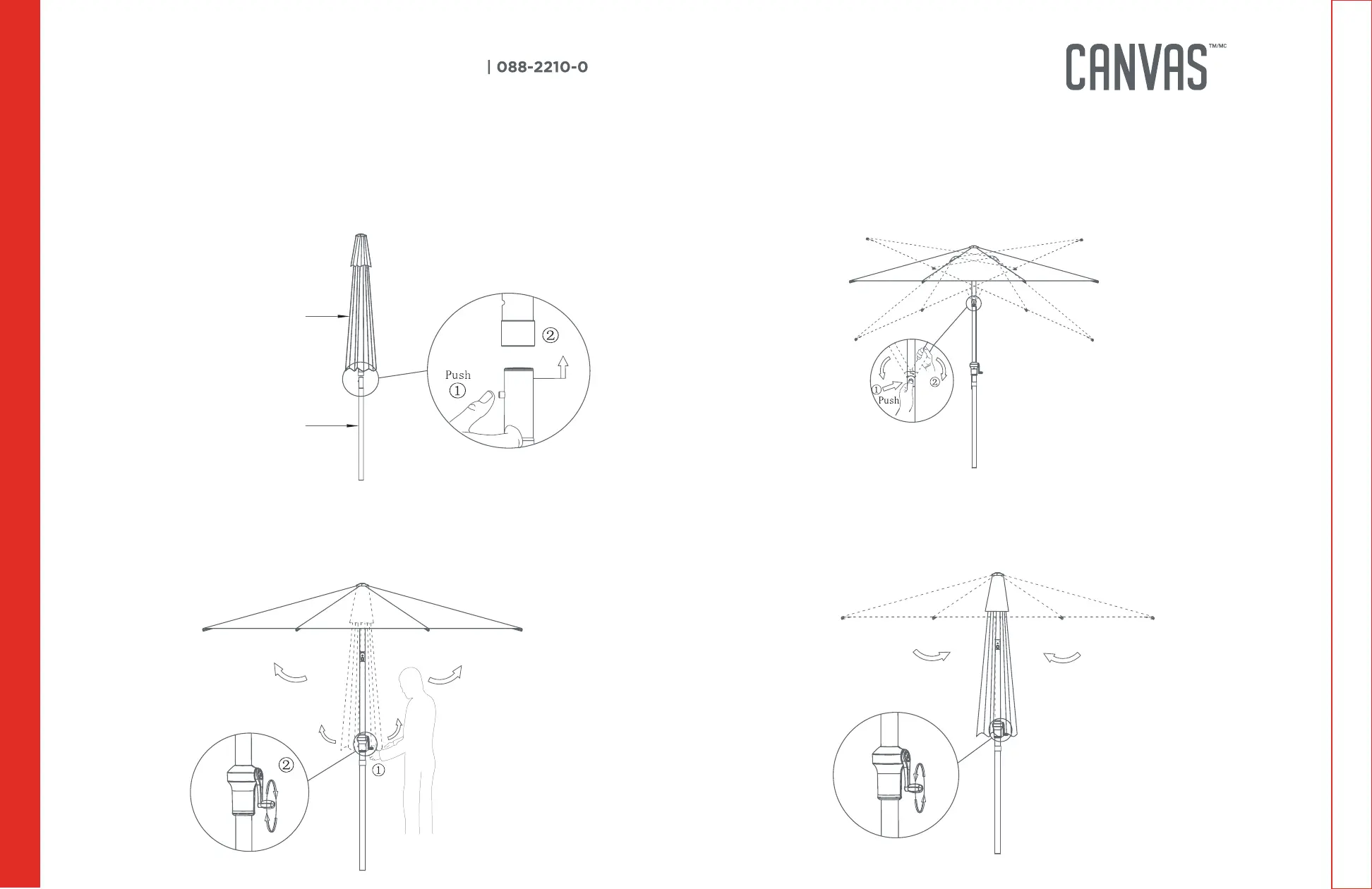

Step 1
Requires A, B
Push the button on the pole (B) and insert pole (B) into the sunshade (A).
Release the button on the pole (B) until it clicks.
Step 3
Press the button located on the pole to adjust the canopy to desired tilt position.
Step 4
Requires A
To close the umbrella, slowly turn the crank located on the sunshade (A) in a
counter-clockwise direction.
Step 2
Requires A
To open the umbrella, slowly turn the crank located on the sunshade (A)
in a clockwise direction.
A
B
Model No. 088-2070-2 | 088-2069-8 | 088-2068-0
088-0586-8 | 088-0587-6 | 088-1270-2
